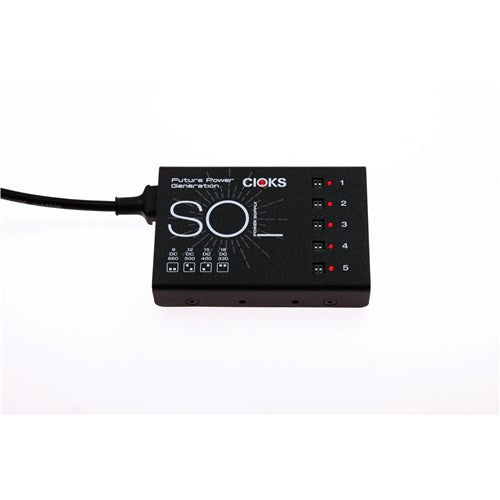

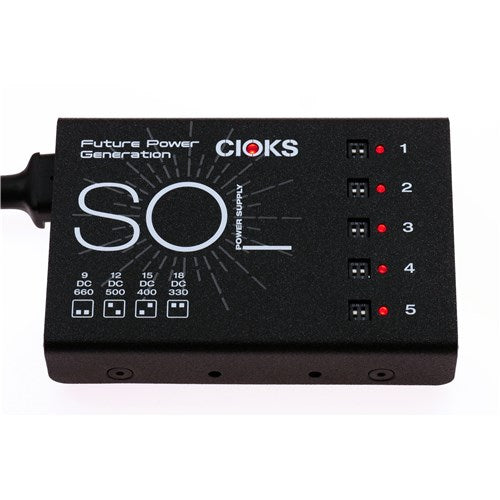

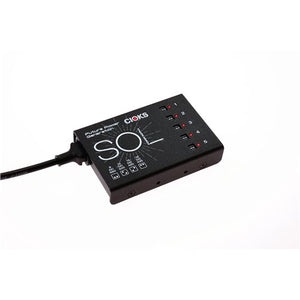

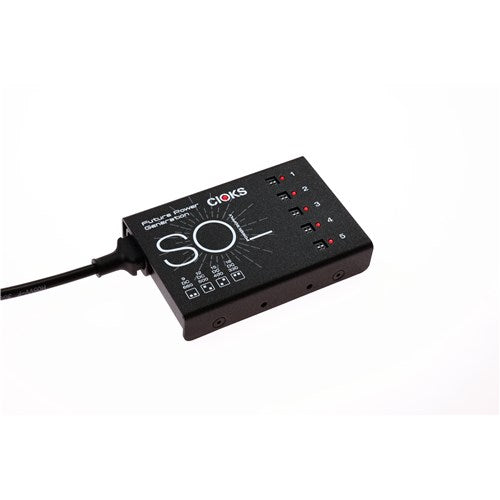

CIOKS SOL Mains-Powered Power Supply for Effects Pedals

SOL is the ultimate solution for bringing life to a small to medium-sized pedalboard setup, especially if you are using power-hungry pedals. SOL is the smallest mains-powered switch-mode power supply we make at CIOKS (no wall-warts here) and the no-frills design plus massive power will leave you free to focus on your creative spark.

Features

• CIOKS SOL has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
• Ultra-low noise achieved by multistage filtering
• 5 isolated DC-outlets, 6W each
• 660mA at 9V on each outlet
• 4 selectable voltages on each outlet • Total maximum power 30W
• Mounting hardware for Pedaltrain and Templeaudio Boards included
• Compatible with CIOKS GRIP v2.0 for drill-free mounting underneath Pedaltrain boards*
• 9 Flex cables included
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty

*Sold separately

Specifications

• Mains input: 100-240V AC universal
• Outlet 1-5:
• 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each Total output power: max. 30W

What's in the box?

• 3 x 1030 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
• 2 x 1050 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)
• 1 x 2050 - Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)
• 1 x 4050 - Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)
• 1 x 1035 - Split Flex type 1 - 30 & 50cm (black)
• 1 x 1533 - 3-way daisy chain Flex type 1, 30+30+50cm (black)1 x
• SOL power supply
• 1 x AC power cord (region specific)
• 9 x Flex cables
• Mounting hardware for Pedaltrain and Templeaudio boards
• Product manual
• 1 x Flex Guide
• 1 x CIOKS sticker sheet


Product Manual
