Denon Pro DN300RMKII Solid-State SD/USB Audio Recorder

2 items left

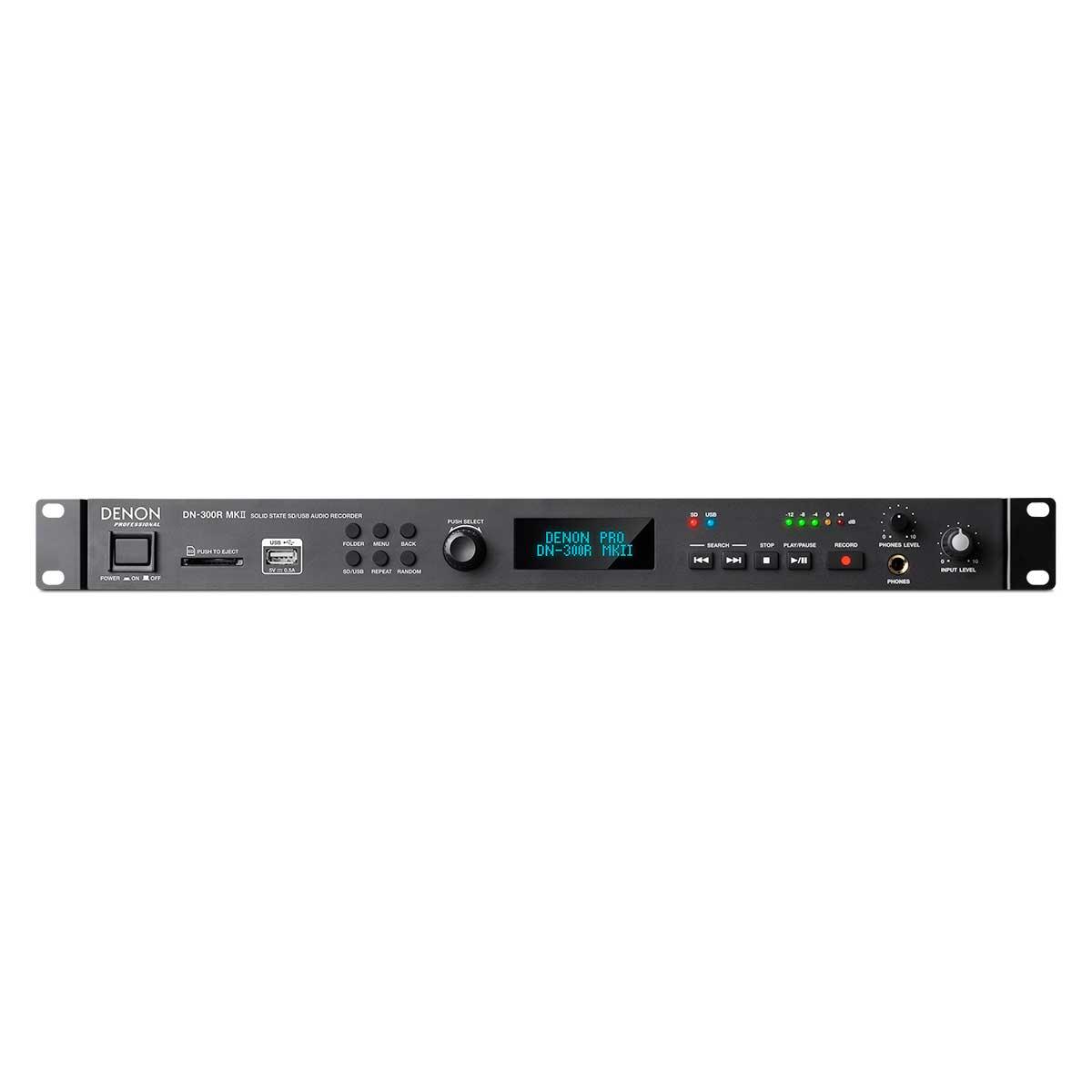

DN300RMKII  Solid-State SD/USB Audio Recorder

The DN-300RMKII records to both SD and USB media simultaneously – perfect for recording conferences where the client needs a copy of the recording after the event. With outstanding ease-of-use and simple operation, anyone can use the DN-300RMKII right out of the box and record to SD, USB or both. Utilizing Dual Mono or Dual Stereo modes, the ability to record a second mono or stereo file at -10dB on the same media is supported - even when recording to both SD and USB at the same time. The DN-300RMKII is exactly what the market is looking for in terms of a simple but high-quality recording solution for commercial applications. The DN-300RMKII gives installers and contractors the flexibility and convenience they need for total commercial recording capability.


FEATURES

  • Records WAV and Mp3 files to SD and USB media simultaneously
  • Simple and easy to use
  • Powers-up in record-ready mode
  • Dual Stereo & Dual Mono modes for recording -10dB safety tracks on the same media
  • Balanced and unbalanced inputs and outputs
  • Compact 1RU design

SPECIFICATIONS

Digital Audio System
  • System: Solid-state SD/USB audio recorder/player
    • Compatible Media (FAT16, FAT32)
    • USB Device (mass storage class)
    • SD/SDHC
    • SDXC
  • Supported File Formats
    • MP3
    • Sampling frequency: 44.1 kHz
    • Bit rate: 192, 256 kbps (recording); 64 - 320 kbps and VBR (playback)
    • Format: MPEG1 Audio Layer 3
    • File extension: .mp3
    • WAV
    • Sampling frequency: 44.1, 48 kHz
    • Bit depth: 16-bit (44.1 kHz), 24-bit (48 kHz)
    • Format: Waveform Audio File Format
    • File extension: .wav
  • Number of Channels: 2 channels / stereo
  • Audio Frequency Range: 10 - 20 kHz (± 1.0dB recording, ± 0.8 dB playback)
  • Signal-to-Noise Ratio:
    • Recording: > 95 dB (1 kHz, 0dB A-weighted)
    • Playback: > 95 dB (1 kHz, 0dB A-weighted)
  • Channel Separation:
    • Recording: > 80 dB (1 kHz, 0dB A-weighted)
    • Playback: > 90 dB (1 kHz, 0dB A-weighted)
  • Wow and Flutter: < 0.001 %
  • Distortion:
    • Recording: < 0.008 %
    • Playback: < 0.006 %
  • Total Harmonic Distortion: < 0.01% (1 kHz, 0dB A-weighted)
Inputs
  • Balanced XLR
  • Nominal level: +4 dBu ± 1 dBu
  • Minimum level: - 40 dBu
  • Maximum level: 20 dBu ± 1 dBu
  • Input impedance: 18 kΩ
  • Outputs
  • Balanced XLR
  • Nominal level: +4dBu ± 1 dBu
  • Maximum output level: +20 dBu ± 1 dBu
  • Output impedance: 600 Ω ± 10%
  • Unbalanced RCA
  • Nominal level: -10 dBV ± 2 dBV
  • Minimum output level: 6 dBV ± 2 dBV
Connectors
  • (2) XLR outputs
  • (1) 1/4" (6.35mm) headphone output
  • (1) RCA stereo output pair
  • (2) XLR inputs
  • (1) RCA stereo input pair
  • (1) USB port
  • (1) SD card slot
  • (1) IEC AC power input
Power
  • Connection: IEC
  • Input Voltage: 100 - 240 V~, 50/60 Hz
  • Dimensions (width x depth x height): 19.0" x 10.92" x 1.72" (484 x 277 x 44mm)
  • Weight: 6.6 lbs (3 kg)
