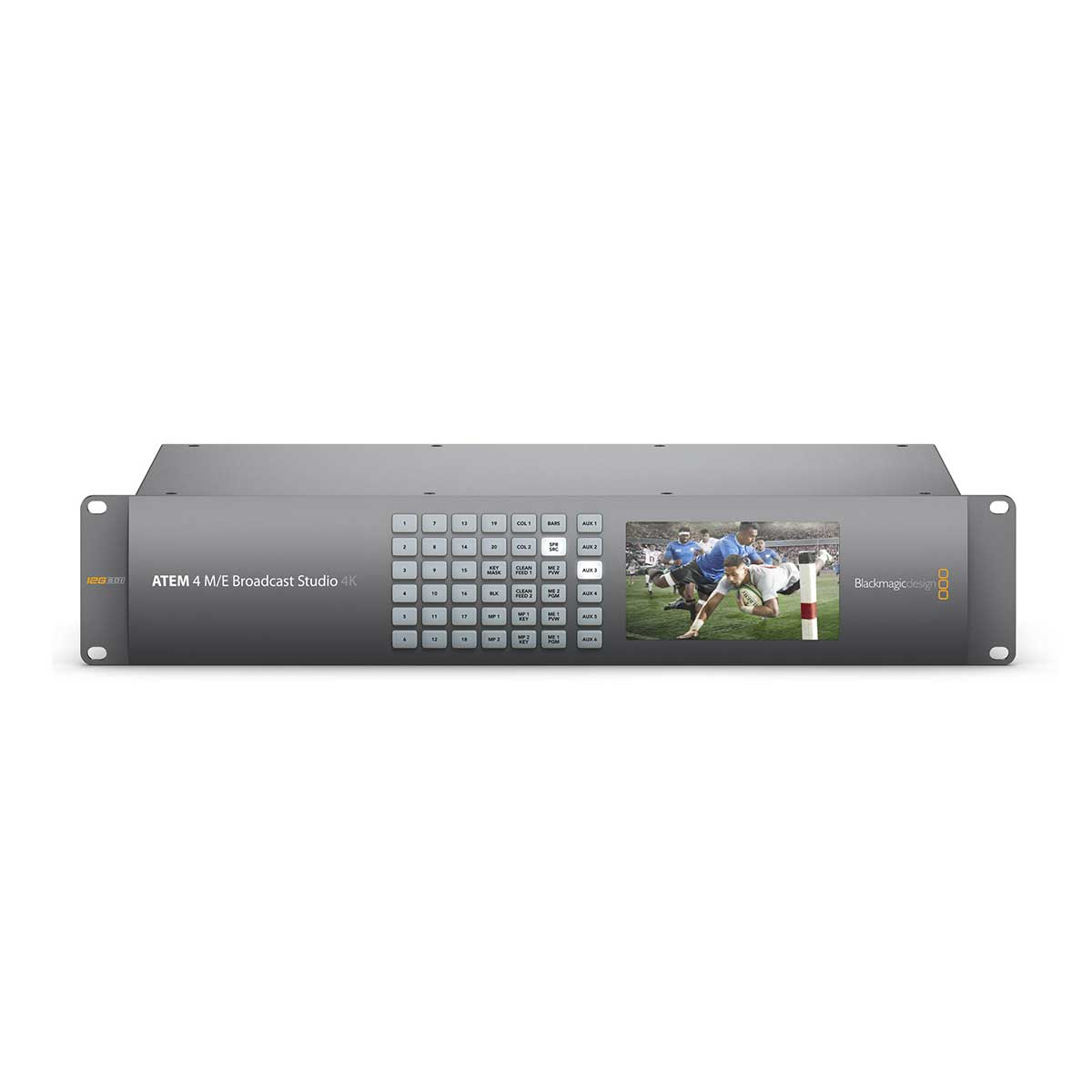

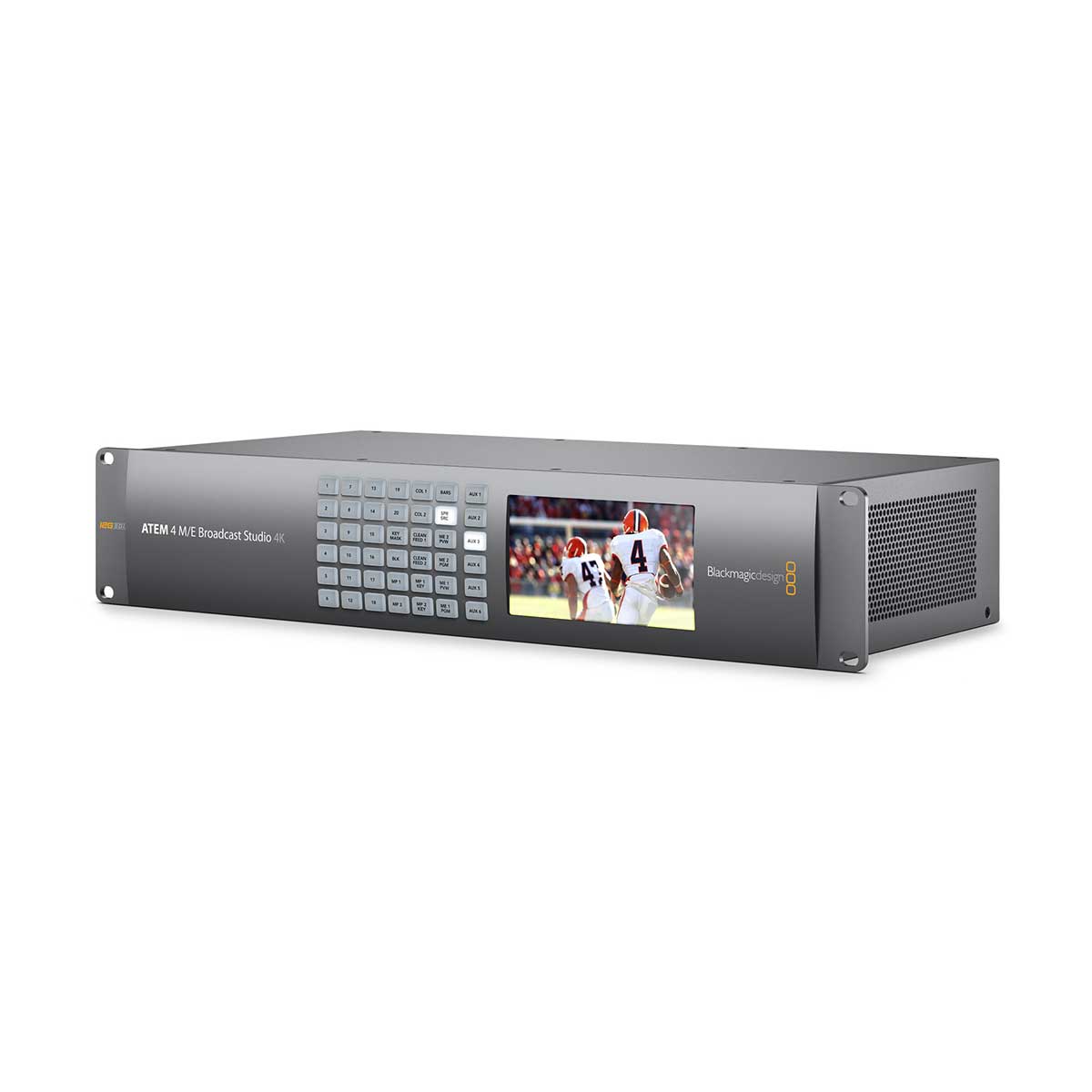

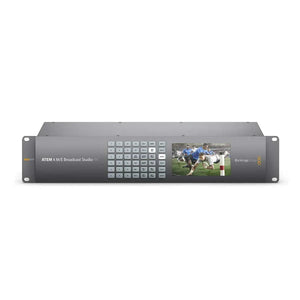

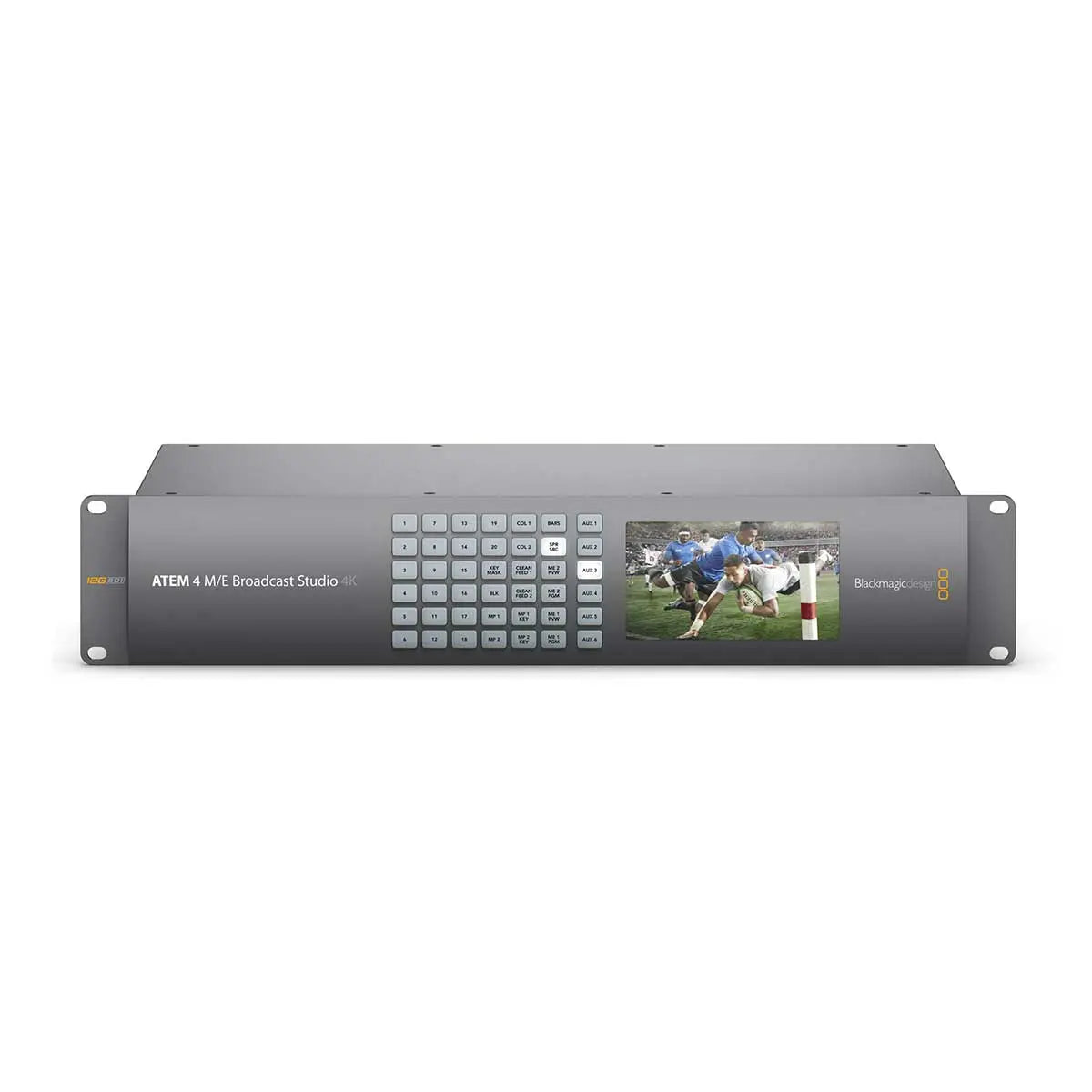

Blackmagic ATEM 4 M/E Broadcast Studio 4K

The ATEM 4 M/E Broadcast Studio 4K lets customers create live, switched, high frame rate HD and Ultra HD programs at up to 60 frames per second. Featuring advanced 12G-SDI technology, customers can connect the latest 2160p60 cameras using a single, standard SDI cable. The multi rate 12G-SDI connections automatically switch to 6G-SDI, 3G-SDI and HD-SDI so the switcher is compatible with existing HD equipment. The ATEM 4 M/E Broadcast Studio 4K can be used to master programs in 2160p60 while simultaneously outputting them in HD with realtime down conversion. It’s a future proof switcher that lets broadcasters start building a library of amazing Ultra HD content, even if they need to continue broadcasting 1080HD today.

ATEM 4 M/E Broadcast Studio 4K Key Features

• Full 4 M/E switcher with each M/E featuring 4 ATEM Advanced Chroma Keyers.
• Switcher can be switched between HD and Ultra HD video formats instantly.
• 2 x built in Ultra HD multi view allows 16 sources, 2 x previews and program.

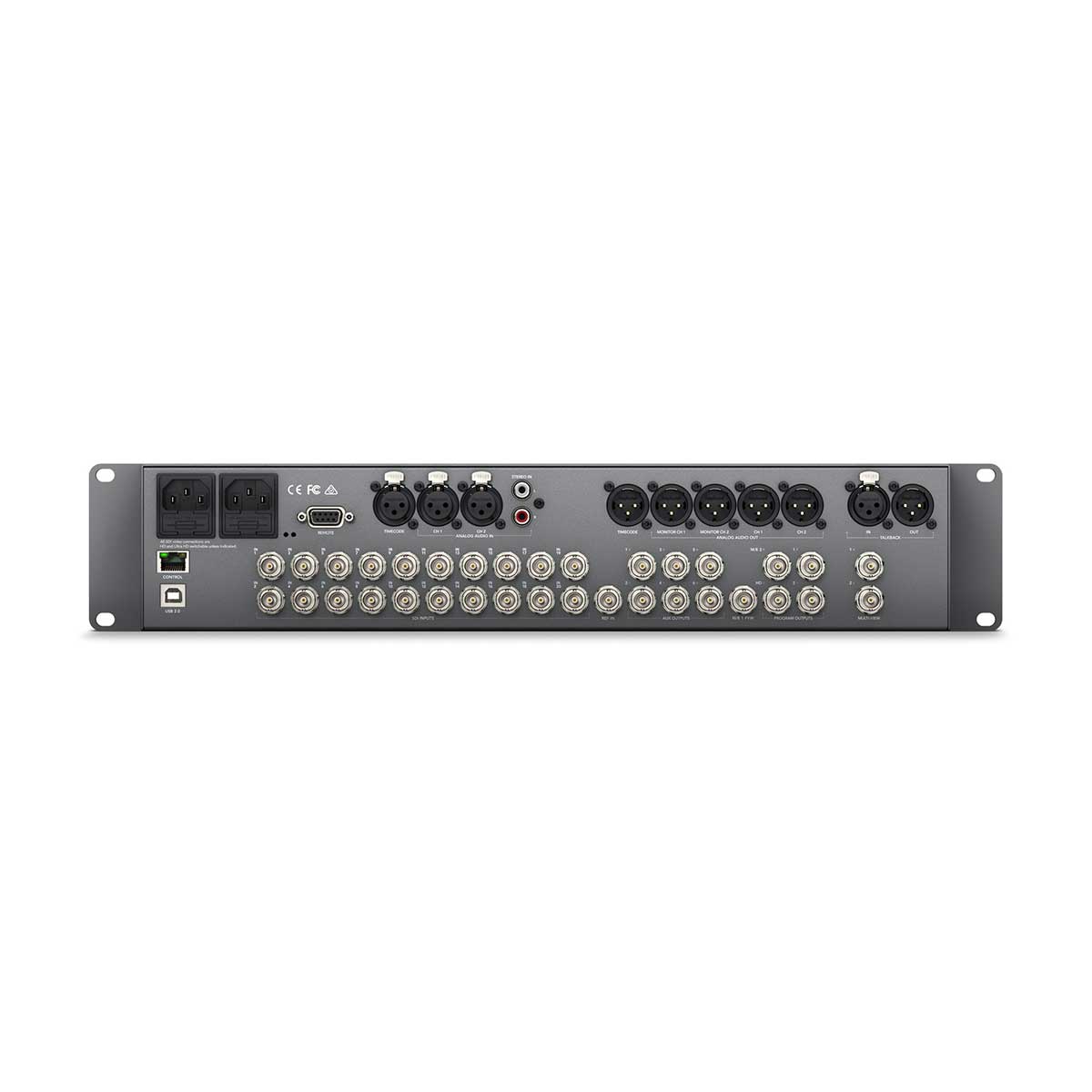

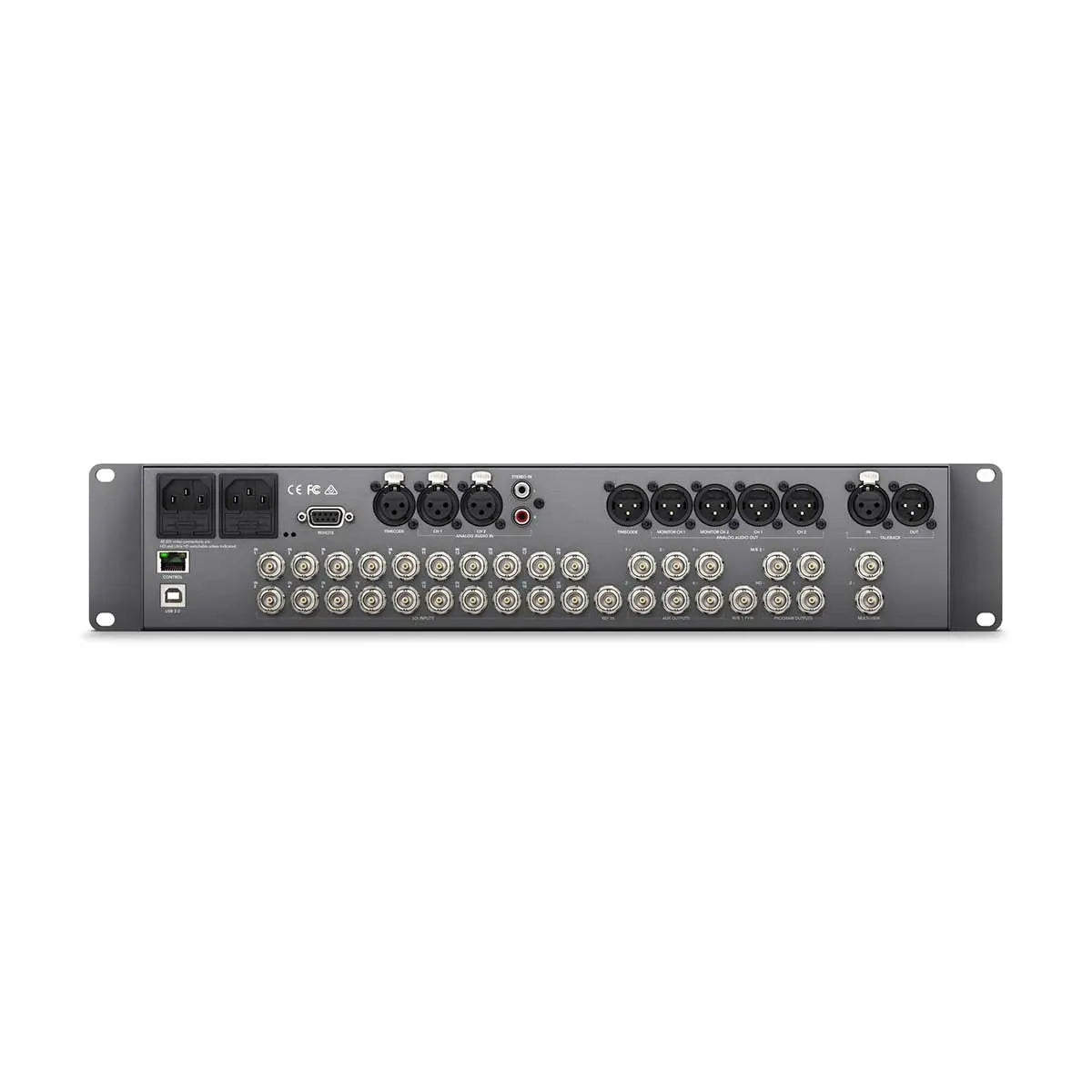

• 20 x inputs for a total of 20 x 12G-SDI. All inputs feature auto re‑sync.
• 1 x down converted program output.
• Built in media pool graphics storage for 64 RGBA Ultra HD stills and 360 frames of Ultra HD clips.
• Built in full motion 2D DVE with position, scale, resize and rotate features.
• Built in SuperSource allows 4 DVEs and 4 keys layered as an independent video source.
• 4 media players allow graphics to be connected to keyers for fill and key layering.
• Transitions include cut, mix, dip to color, SMPTE wipes and more.
• 16 new ATEM Advanced Chroma Keyers (4 per M/E row).
• 2 downstream keyers.
• 6 auxiliary outputs include front panel aux switching buttons and LCD screen for viewing.
• Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs.
• Balanced XLR stereo analog audio inputs and 1 HiFi RCA stereo audio input into built in audio mixer.
• Audio mixer main and preview outputs onto balanced XLR audio outputs and on all video outputs.
• Internal sources include black, color bars, two color generators and media pool.
• Ethernet connection for control panel connection. Mac and Windows control panel software included.
• Compatible with all ATEM Broadcast Panel control panels when hardware panel is required.
• Black Burst and HD-Tri-Sync genlock input for integration into large systems.
• Compact 2 rack unit size is perfect for when a lot of power is required in a portable solution.

For keying and effects, the ATEM 4 M/E Broadcast Studio 4K gives customers a total of 16 new advanced keyers for more high end creative options than ever before. Customers get 4 new ATEM Advanced Chroma Keyers on each of the 4 mix effects rows. The new keyers feature adjustable on-screen controls for selecting and sampling a region of color, adjustment controls for foreground, background and edges, and chroma correction tools for spill and flare suppression. That means customers can pull clean keys for professional broadcast quality composites and massive multi layer effects.

The ATEM 4 M/E Broadcast Studio 4K works in both HD and Ultra HD. It is designed for action filled sporting events and live concerts where smooth, crystal clear, incredibly detailed, realistic looking video is important. When combined with the extra resolution, higher frame rate and bigger color space of Ultra HD, the ATEM 4 M/E Broadcast Studio 4K makes the fast paced action and incredible drama of live sports look far better than even the highest end, most expensive regular HD production switchers.
