Rediacoustics ROCS + ATC Bundle

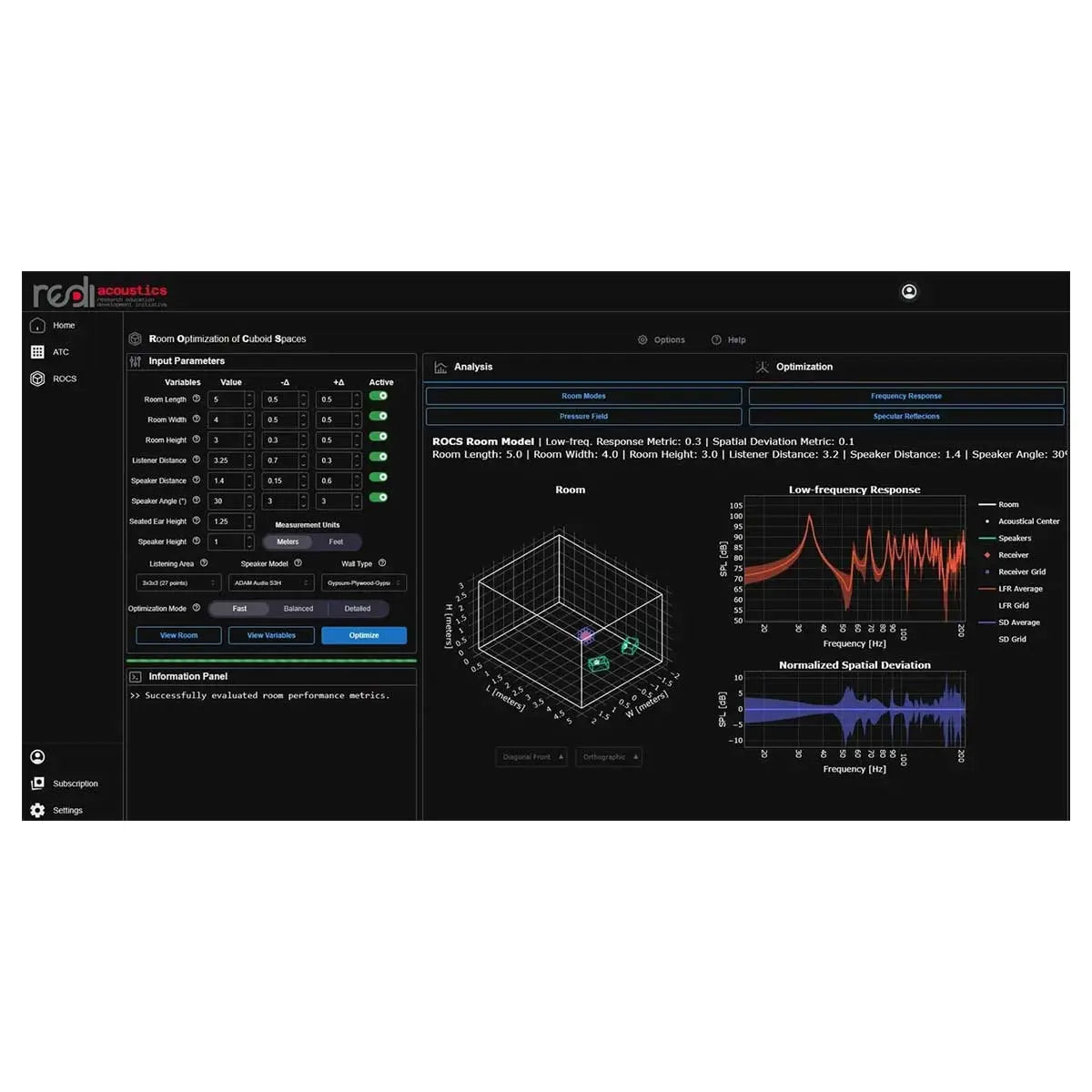

Achieving acoustical excellence hinges on a deep understanding of low-frequency behavior in your room. Dominated by modal resonances, this critical range is influenced by room dimensions and the specific positioning of audio sources and listeners. Our sophisticated simulation models allow us to estimate the frequency response at any point in your space.

The graphs included in our reports illuminate not just the frequencies of these modal resonances but also any significant dips in the frequency response that need addressing. Armed with this knowledge, you can make informed adjustments to remove unwanted resonances and achieve a well-balanced, sonically satisfying environment - be it a home studio, a cinema, or a control room.

 Spatial Deviation is an objective metric designed to assess the uniformity of frequency response within a specified listening area. Centered around a critical listening position - often the primary position in a room where optimal sound reproduction is desired - this metric offers a nuanced understanding of how the acoustic properties vary across different points within the listening zone.

By capturing the degree of variation in sound characteristics, such as amplitude and phase of different frequency components, the spatial deviation serves as a diagnostic tool for identifying areas of inconsistency that could compromise critical listening tasks.

Lower values of this metric indicate that the room offers a more uniform auditory experience, which is conducive to tasks like audio mixing, monitoring, or focused listening. Conversely, higher values suggest a heterogeneous sound field that may necessitate further acoustic treatment or system calibration to achieve the desired level of uniformity.

 The Speaker-Boundary Interference Response (SBIR), also known as the Allisson effect, refers to the changes in a speaker's frequency response when it's close to walls. When a speaker is near one or more walls, certain frequencies can either be amplified (peaks) or reduced (nulls). This effect is especially strong at lower frequencies. The exact frequencies affected depend on the distance between the speaker and the walls.

The example curves represent a speaker placed 1.2 m from one, two, and three walls. With each added equidistant boundary, the SBIR becomes more evident, increasing the notch and the null. It also shows how its frequency is dependent on the distance from the boundaries by placing the speaker equidistant from the three boundaries by 0.3 m.


Our pressure maps offer a frequency-specific analysis of sound pressure levels inside the room and in the room boundaries, enabling a nuanced understanding of how sound interacts with the room's architecture. These visual tools are particularly useful for identifying modal hotspots and other areas requiring acoustic treatment, thereby aiding in designing and implementing effective acoustic solutions.

ATC Acoustic Treatment Calculator

Our calculator offers an analytical framework for designing and assessing multilayered acoustic treatments. Whether you're an architect, an audio engineer, or an audiophile, this tool provides an evidence-based approach to improving room acoustics.

Core Features:

• Multilayered Treatment Design: Utilize the app to create complex acoustic resonators tailored to specific requirements. Choose from an array of materials and structures.
• Performance Prediction: The app employs Transfer Matrix Methods to give you a precise forecast of the acoustic characteristics for each design.
• Data Export: Easily export your treatment specifications to a detailed spreadsheet to use as input for acoustic simulation software.

Key Attributes:

• Usability: A straightforward user interface ensures ease of use, even for those not specialized in acoustics.
• Customization: The tool allows for extensive personalization in developing your acoustic treatments.
• Efficiency: By providing accurate, science-based predictions, the app minimizes uncertainties, saving both time and resources.

For those interested in the scientific basis and validation of our calculator, please refer to our published paper, which includes benchmark data and real-world measurements.
