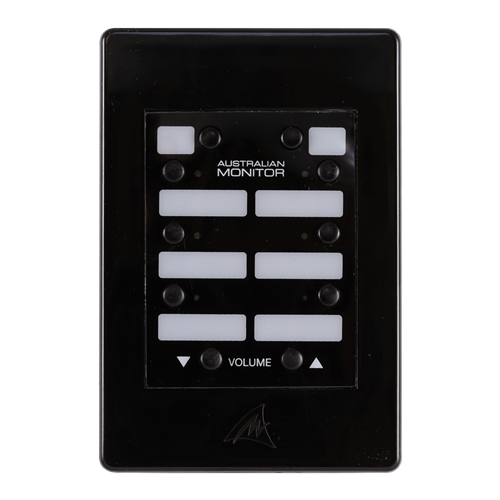

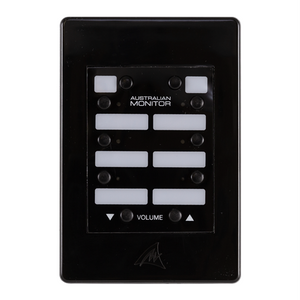

Australian Monitor 10 Button Wall Control Panel Black WP10-B for the ZONEMIX Solution

WP10

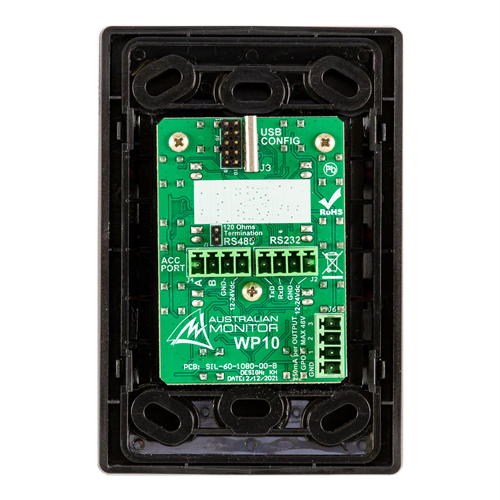

The WP10 has 10 programmable buttons (via the ZONEMIX PC application software). There are also 3 GPOs on the read of the WP10 as well as USB-C, RS485 and RS232 connections forsetup.

Options for each button include.

• • Enable or disable an input in the assigned zone
  • Volume up and down for the assigned zone
  • Recall of global or zone presets
  • Activate a paging message
  • Triggering of the 3 GPO's
  • Muting the assigned zone
  • Available in black or white

In addition to the standard black and white colour options, the WP10 is compatible with HPM VIVO™ cover plates providing up to 14 additional colour options; unique interior fitouts can be achieved where required, such as hotels, restaurants, bars and designer retail venues.
