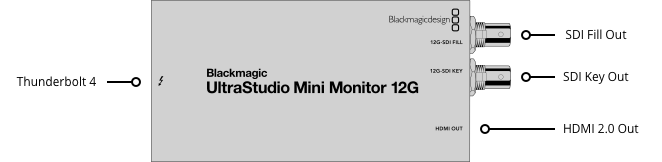

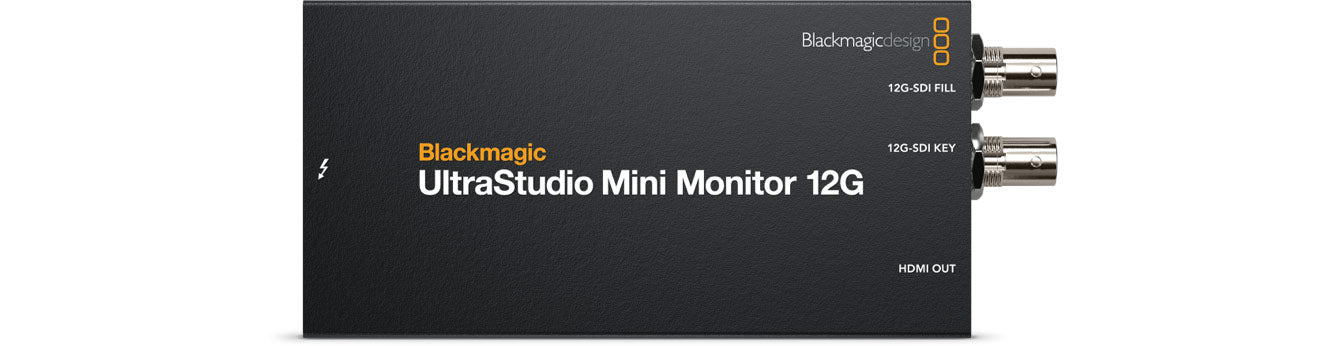

Get 12G-SDI and HDMI video playback from your Thunderbolt™ laptop or desktop computer! The compact UltraStudio Mini Monitor 12G supports broadcast quality 10-bit SDI and HDMI video outputs from popular editing software such as DaVinci Resolve or broadcast graphics software using the 10-bit fill and key outputs. UltraStudio Mini Monitor 12G has multi-rate HDMI and 12G-SDI connections which support HD for broadcast video use as well as the latest Ultra HD video standards up to 2160p60.
2
1
1
270Mb, 1.5G, 3G, 6G, 12G.
16 channels embedded audio on SDI output.
1
8 channels embedded audio on HDMI output.
Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
DaVinci Resolve
Fusion
Final Cut Pro
Adobe Premiere Pro CC
Adobe After Effects CC
Adobe Photoshop CC
Adobe Character Animator CC
Avid Media Composer
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika.
These are third party applications and support may vary, check with your software vendor.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1
RP 188/SMPTE 12M-2 and closed captioning.
Television standard sample rate of 48 kHz and 24-bit.
4:2:2, 4:4:4
8, 10, 12-bit RGB 4:4:4 up to 2160p30, and 8, 10-bit YUV 4:2:2 in all standards.
Rec. 601, Rec. 709 and Rec. 2020.
HDR static metadata packing, HLG and PQ transfer characteristics.
SDI video connection is switchable between SD, HD, 2K, Ultra HD and 4K.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
Television standard sample rate of 48 kHz and 24 bit.
4:2:2 and 4:4:4
8, 10 and 12-bit RGB 444, 8-bit YUV 444* and 12-bit YUV 422* in all standards
* converted from 10-bit YUV 422
HDMI 2.0 supports Deep Color.
Rec. 601, Rec. 709 and Rec. 2020.
HDR static metadata packing, HLG and PQ transfer characteristics.
HDMI video connection is switchable between SD, HD, Ultra HD and 4K.
2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), Ay10 (10-bit YUVA), r210 (10-bit RGB), v210 (10-bit YUV), R12B, R12L (12-bit RGB).
Hardware based real time.
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 10, 64-bit.
Windows 11.
Linux
Powered by Thunderbolt cable. Requires computer with a Thunderbolt 4 USB-C port.
15 W
Works with Apple Silicon Macs and Thunderbolt 4 / Thunderbolt 5 PCs.
5° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing

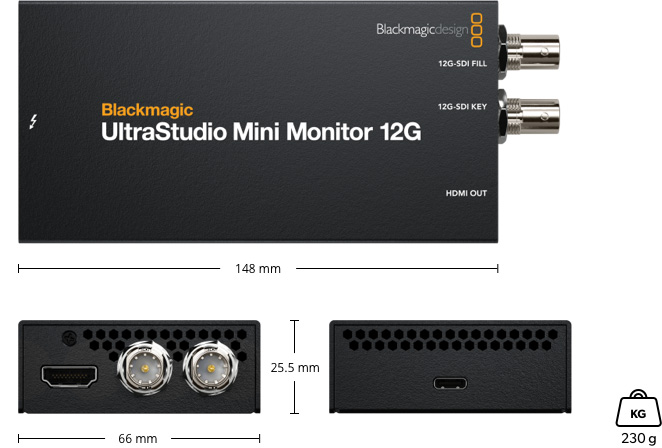

UltraStudio Mini Monitor 12G
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
