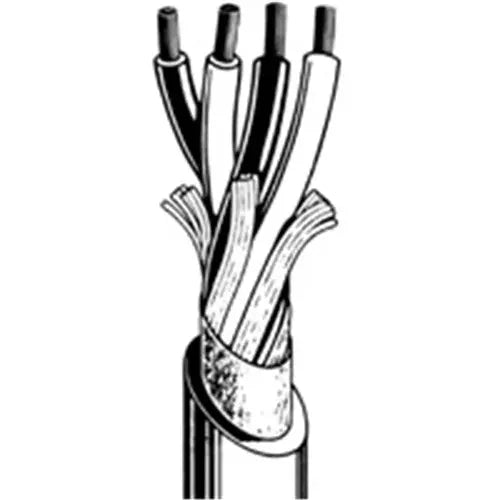

Canare 4S11G (OFC) grey (100m roll) - Special Order


Notify me when this product is available:

Key Features and Benefits:

  • High-performance PVC jacket, resistant to bending and twisting.
  • 4S11G,  the G versions feature oxygen-free copper (OFC, JIS H3510) conductors.


Model Pair
cross-
sec.
Sales
units
Nom.
O.D.
Weight Composition Electrical characteristics
No. of
cond.
Cross sec. area (AWG)
mm2 /(AWG)
Cond. comp
Q’ty/mm
Twist
pitch
Cond. DCR Nom.
capacitance*
mm2 m mm kg/100m mm ohm/100m pF/m
4S11G 4.3 100
200
400
10.7 16 4 2.18(14) 41/0.26(OFC) 100 0.9 146
Insulation: polyethylene (red, translucent red, white, translucent white),
Jacket: PVC,
Dielectric strength: 500V AC/min.

*Capacitance between conductors
