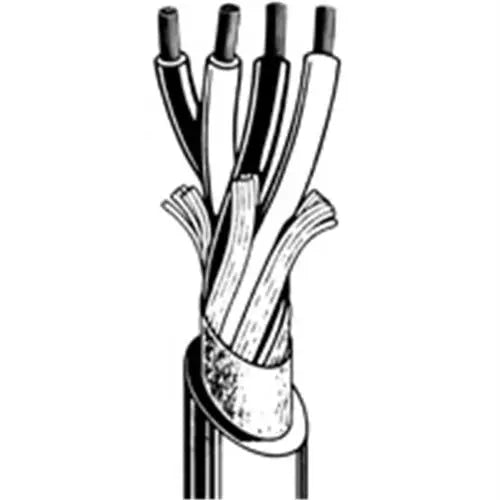

A lighter gauge, very flexible speaker cable, using 4 x 20 AWG insulated conductors. Good choice for high frequency components, short cable runs or DC line cords.
? PA Systems.
? Hi-Fi Speakers.
? DC Power Lines.
? Super Flexibility, even in Sub-Zero Weather.
? Star Quad Design Reduces EMI Noise.
? Low Capacitance and Resistance.
| Model | Std. Lng. ft. (m) |
Wt Std. Lng. lbs (kgs) |
Nom. O.D. in. (mm) |
PVC Jacket Nom. Thick. in. (mm) |
Brittle Point F° (C°) |
No. of Cond. |
Insul. Type* Thick mil |
Cond-AWG (Qty./mil) Cross Sec. Area mil.2 Twin Cond. AWG** |
Pitch of Quad in. (mm) |
Shield Cover- age |
| 4S6 |
328 (100) 656 (200) |
24 (11) |
.252 (6.4) |
|
-56 (-49) |
4 RED CLR RED WHT CLR WHT |
PE 19.7 |
AC-#20 (20/7.09) 791 #17 |
<1.78 <45 |
- |
| Model | Cond. D.C.R. ohm/1000ft (ohm/100m) |
Shield D.C.R. ohm/1000ft (ohm/100m) |
Nom. Cap. *** pF/m |
Nom. Cap. † pF/m |
Nom. Imp. ohm |
Nom. Atten. V/1000ft (V/100m) |
Group Delay Time nS/ft (nS/m) |
| 4S6 | 11.4 (3.7) |
- | 125 | - | - | - | - |
| Model | Black | Blue | Brown | Gray | Green | Orange | Purple | Red | White | Yellow | |
| 4S6 | [+] | [o] | - - | [+] | - - | - - | - - | [o] |
- - | - - | |
