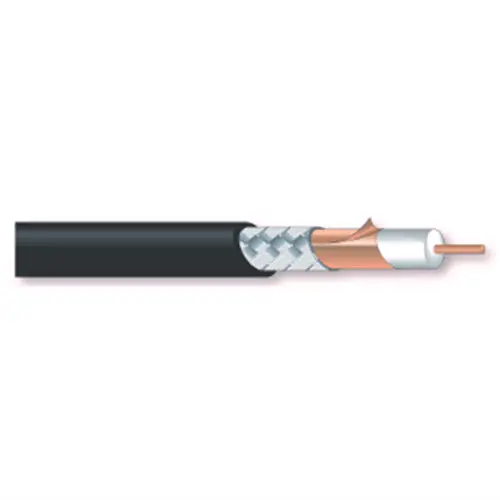

Canare L-5.5CUHD Coax Cable 12G-SDI Permanent Install Black 100m


2 items left

75 OHM DIGITAL VIDEO COAXIAL CABLE ULTRA LOW LOSS COAX (12G-SDI) (L-5.5CUHD)

PRODUCT NAME

75 ohm Digital Video Coaxial Cable Ultra Low Loss Coax (12G-SDI)
Model Number
L-5.5CUHD
  • Specially designed for 12G-SDI
  • Max. transmission distance of UHD over single link able to reach 100m or longer*.
  • Excellent results in demanding tests.
  • Copper foil and high-density tinned copper braided shielding
  • Highly-foamed multi-layer PE insulation
  • Flame resistance UL 1666 Riser
* Depending on receiving equipment.

Model Standard Length
(m)
Nominal
O.D.
in.
(mm)
Weight
lbs
(kgs)/100m
Inner Cond
Conductor
Comp.
(AWG)
Q'ty/mm
Inner
Cond
O.D.
in.
(mm)
Insulation
O.D.
in.
(mm)
L-5.5CUHD 100M 0.303
(7.7)
15.65
(7.1)
(16)
1/1.35A
0.053
(1.35)
0.219
(5.55)
Model (contd.) Outer Conductors
Shield Coverage
 & Comp.
Inner
Cond.
Resistance
ohm/km
Outer
Cond.
Resistance
ohm/km
Static
 Capacity
(pF/m)
Characteristic
Impendence
ohm
Attenuation
dB/100m(328ft)
@6GHz
L-5.5CUHD (contd.) Copper Laminated Tape
+
0.12TA/8/24
(91%)
12.8 10.3 52 75 39.1
