Sold Out
| Model | Std. Lng. ft. (m) |
No. of Channels (Pairs) |
No. of Cond. (2 Per Channel) |
Wt Std. Lng. lbs (kgs) |
Nom. O.D. in. |
PVC Jacket Nom. Thick. in. (mm) |
Brittle Point F° (C°) |
| MR202-2AT | 328 (100) 656 (200) |
2 | 4 | 12 (5) |
.264 (6.7) |
.032 (0.8) |
-4 (-20) |
| MR202-4AT | 4 | 8 | 17 (8) |
.299 (7.6) |
.032 (0.8) |
||
| MR202-8AT | 8 | 16 | 35 (16) |
.433 (11.0) |
.039 (1.0) |
||

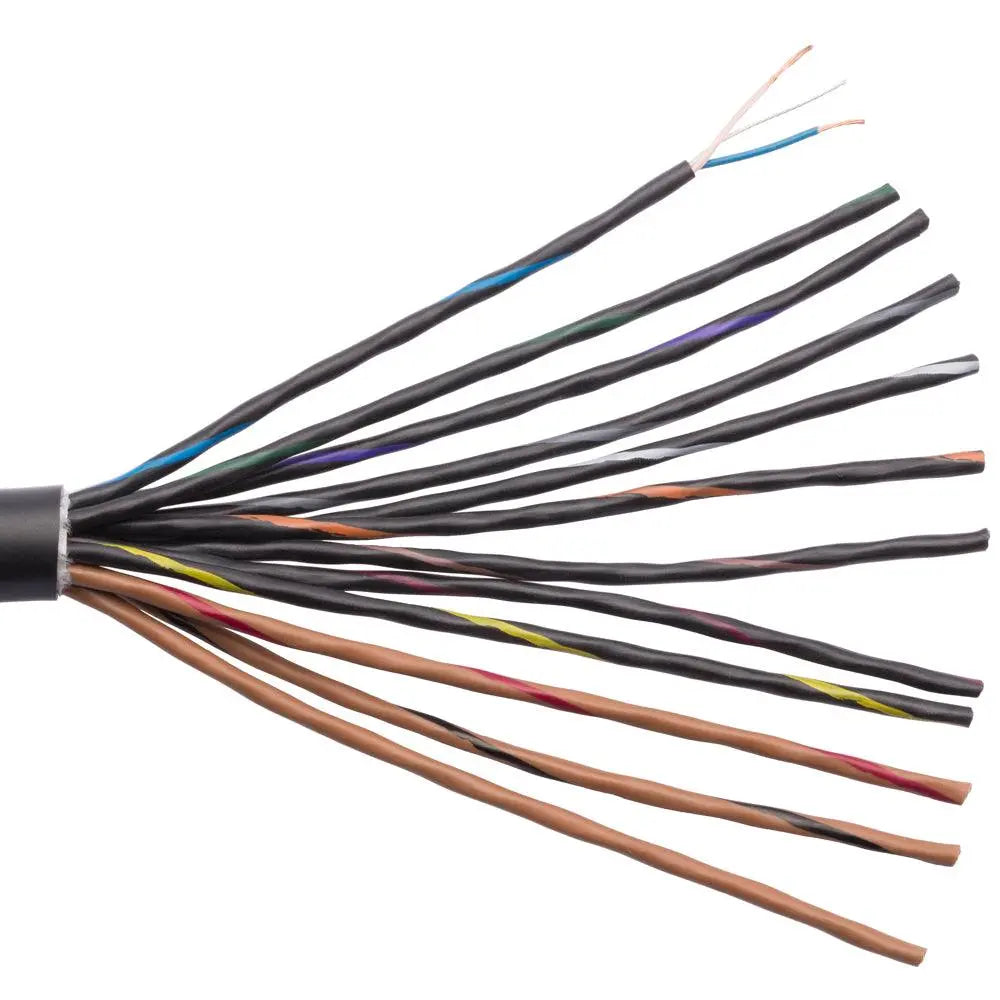

| MR202-12AT | 12 | 24 | 46 (21) |
.500 (12.7) |
.047 (1.2) |
||
| MR202-16AT | 16 | 32 | 57 (26) |
.551 (14.0) |
.047 (1.2) |
||
| MR202-24AT | 24 | 48 | 86 (39) |
.685 (17.4) |
.051 (1.3) |
||
| MR202-32AT | 32 | 64 | 88 (40) |
.752 (19.1) |
.059 (1.5) |
||
| Model | Channel O.D. in. (mm) |
Channel Jacket Nom. Thick. mil |
Insul. Type* Thick mil |
Cond-AWG (Qty./mil) Cross Sec. Area mil.2 |
Pitch of Pairs in. (mm) |
Shield Coverage |
| MR202-AT Series |
.106 (2.7) |
11.8 | IPE 9.1 |
AC - #25 (7/7.09) 279 |
<.99 (<25) |
100% Alum. Tape Drain Wire #25 AWG |
| Model | Cond. D.C.R. ohm/1000ft (ohm/ 100m) |
Shield D.C.R. ohm/1000ft (ohm/ 100m) |
Nom. Cap. *** pF/m |
Nom. Cap. † pF/m |
Nom. Imp. ohm |
Nom. Atten. V/1000ft (V/100m) |
Group Delay Time nS/ft (nS/m) |
X-Talk Input 3.31V mV/1000ft (mV/ 100m) |
| MR202-AT Series |
<32.5 (<10.7) |
- | 76 | 142 | - | - | - | - |
| Model | Black | Blue | Brown | Gray | Green | Orange | Purple | Red | White | Yellow | |
| MR202-AT Series |
[+] | - - | - - | - - | - - | - - | - - | - - | - - | - - | |
| Ch. No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Insulator Color* | BRN | RED | ORN | YEL | GRN | BLU | PPL | GRY | WHT | BLK | BRN | RED |
| Spiral Markers | BRN | RED | ORN | YEL | GRN | BLU | PPL | GRY | WHT | BLK | ~ | RED |
| Inner Jacket | BLK | BRN | ||||||||||
| Ch. No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Insulator Color* | ORN | YEL | GRN | BLU | PPL | GRY | WHT | BLK | BRN | RED | ORN | YEL |
| Spiral Markers | ORN | YEL | GRN | BLU | PPL | GRY | WHT | BLK | BRN | ~ | ORN | YEL |
| Inner Jacket | BRN | RED | ||||||||||
| Ch. No. | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | ||||
| Insulator Color* | GRN | BLU | PPL | GRY | WHT | BLK | BRN | RED | ||||
| Spiral Markers | GRN | BLU | PPL | GRY | WHT | BLK | BRN | RED | ||||
| Inner Jacket | RED | ORN | ||||||||||
*Insulator in the unit: one is same color as Spiral Marker and other is clear.
