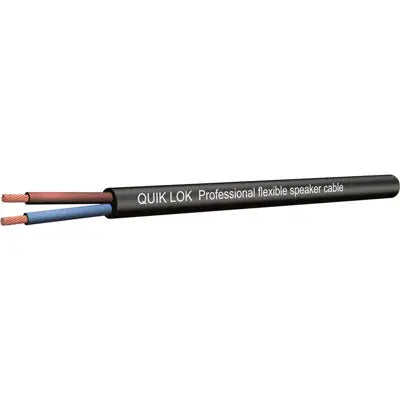

QuikLok CA24 (2 x 4.00 mm²) - Diameter 10.8mm - Black - 100m reel

CA/24 BK (2 x 4.00 mm) - diameter 10.8mm - Black - 100m reel <Specifications

• Inner Conductor Size: 2 x 4.0mm²
• Inner Conductor: Bare Copper - Class 5 according to standard IEC 228/HD 383 S2 (CEI 20-29)
• Strands x Conductor: 80 x 0.245
• Conductor Diameter: 4.0mm
• Insulation: FLEX PVC - T12 quality according to standard HD 21 (CEI 20-11)
• Outer Jacket: TM2 quality according to standard HD 21 (CEI 20-11)
• Overall Diameter: 10.8mm
• Weight per 1,000m (3,280ft): 205kg (455.5lbs)
• Reel Length (metres): 100
• Colours: Black (BK)

Mechanical / Electric Characteristics

• Working Voltage: 300 / 500 V
• Working Temperature: 60º
• Electrical Resistance at 20ºC (ohm/km): According to standard IEC 228/HD 383 S2 (CEI 20-29)
• Resistance to flame propagation: According to the standard IEC 332-1 (CEI 20-35)
