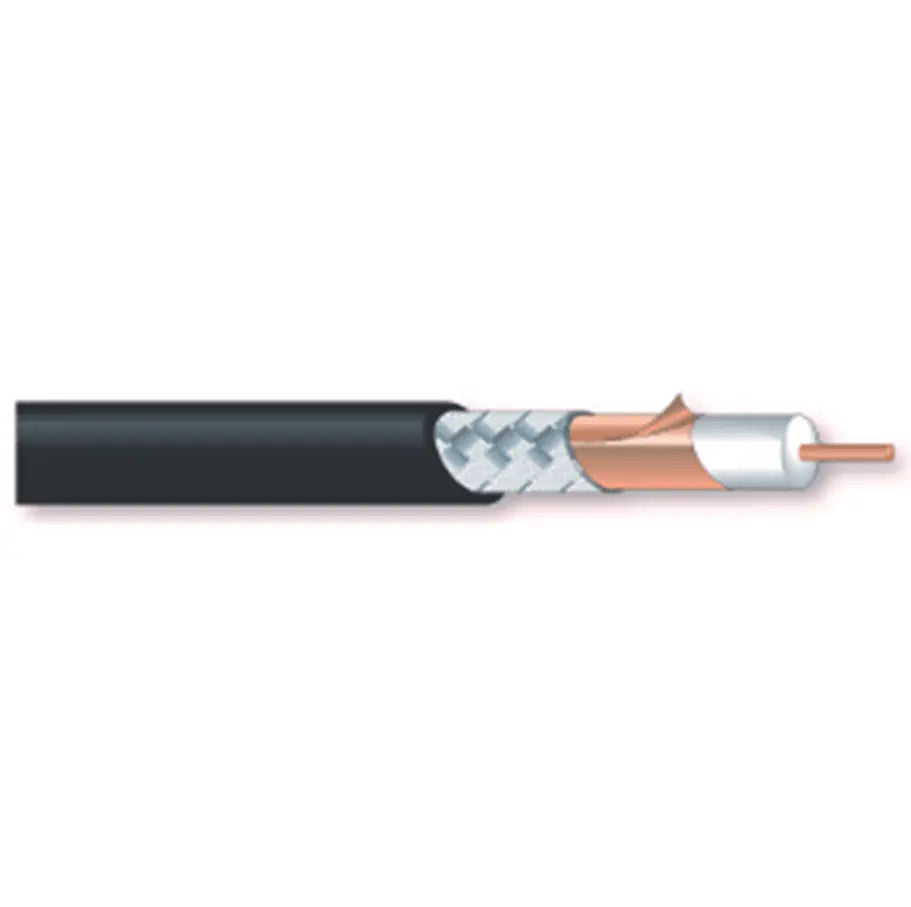

Canare L-3.3CUHD Coax Cable 12G-SDI 5.5mm OD Permanent Install 100m Roll


4 items left

? Specially designed for 12G-SDI
? Excellent results in demanding tests.
? Copper foil and high-density tinned copper braided shielding
? Highly-foamed multi-layer PE insulation
? Flame resistance UL 1666 Riser

MECHANICAL SPECIFICATIONS
Model Standard Length
ft.
(m)
Nominal
O.D.
in.
(mm)
Weight
lbs
(kgs)/100m
Inner Cond
Conductor
Comp.
(AWG)
Q'ty/mm
Inner
Cond
O.D.
in.
(mm)
Insulation
O.D.
in.
(mm)
L-3.3CUHD 328
(100)

656
(200)

984
(300)
0.217
(5.5)
9.04
(4.1)
(21)
1/0.A
0.030
(.75)
0.130
(3.3)

(contd.) MECHANICAL SPECIFICATIONS
Model Outer Conductors
Shield Coverage
 & Comp.
Inner
Cond.
Resistance
ohm/km
Outer
Cond.
Resistance
ohm/km
Static
 Capacity
(pF/m)
Characteristic
Impendence
ohm
Attenuation
dB/100m(328ft)
@6GHz
L-3.3CUHD Copper Laminated Tape
+
0.12TA/8/16
(92%)

41.4 14.9 55 75 68.5
