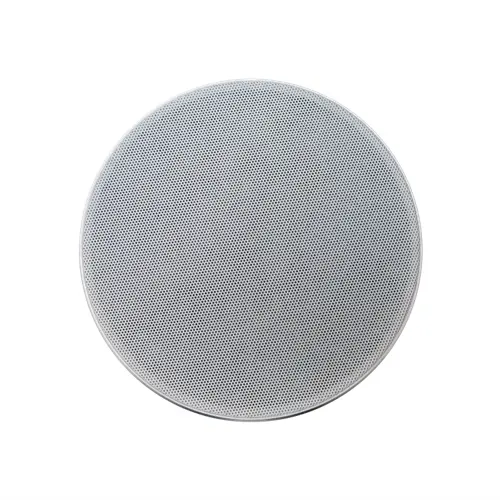

Australian Monitor QFC8CS Ceiling Speaker 8" 30 Watts 100V
Sold Out
QFC8CS
Ceiling Speaker
30W 8 inch coaxial
The all new QuickFit coaxial series of ceiling speakers features 3 new models, each model comprises a 2 way coaxial driver producing high SPL and intelligibility. The frameless grills provide a modern sleek look sure to please end users, consultants and architects alike. If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.
The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL. Recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.
EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH
8 inch coaxial high powered driver
QuickFit white frameless powder coated steel grill
3.75, 7.5, 15, 30 watt taps @ 100V
Evac. capacitor as standard
SPECIFICATIONS
Form Factor: Ceiling
Max Continuous Power: 30W
Tappings: 30W-15W-7.5W-3.75W-1.87W
Max Program Power: 60W
IP Rating: No
Max Peak Power: 120W
EASE Model: Yes
SPL 1W/1m: 94dB
Powered: Passive
Max SPL RMS: 109dB
Driver Diameter: 8" & 25mm
Max SPL Peak: 115dB
Colour: White (RAL 9010)
Frequency Response (-3dB): 60Hz - 20kHz
Warranty: 5 years
Dispersion: 100deg
Product Dimensions: (W x D x H) 282mm x 85mm
Shipping Dimensions: (W x D x H) 105mm x 287mm x 287mm
