KIT-4099-DP-4C - 4099 CORE+ CLASSIC TOURING KIT, 4 MICS AND ACCESSORIES, LOUD SPL
These kits, featuring 4099 CORE+ versions ensure the highest sound quality and bring more clarity and details to your music.
- CORE+ technology
- High SPL handling
- Wide dynamic range
- Supercardioid pick up pattern
- Superior gain before feedback
- MicroLock® connector
- IP58 certified
- Advanced, flexible clip program
The 4099 CORE+ is the next-generation, high-performance instrument microphone. It delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument.
| Directional pattern |
Supercardioid |
| Principle of operation |
Pressure gradient |
| Cartridge type |
Pre-polarized condenser |
| Frequency response |
20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) |
80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz |
6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted |
Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) |
| Distortion, THD < 0.5% |
135 dB SPL RMS, 138 dB SPL peak |
| Distortion, THD < 1% |
138 dB SPL RMS, 141 dB SPL peak |
| Dynamic range |
Typ. 118 dB
|
| Max. SPL, THD 10% |
145 dB SPL peak |
| Rated output impedance |
From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω |
| Cable drive capability |
Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter |
| Output balance principle |
Signal balanced with DAD9099 or DAD9001 XLR Adapter |
| Common mode rejection ratio (CMRR) |
> 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter |
| Power supply (for full performance) |
For wireless systems Min. 5 V - max. 10 V through DPA adapter.With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
|
| Current consumption |
Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter |
| Connector |
MicroLock |
| Weight |
Microphone: 18 g (0.63 oz) |
|
Microphone diameter
|
5.7 mm (0.22 in)
|
|
Microphone length
|
50 mm (1.97 in)
|
|
Cable length
|
1.8 m (5.9 ft)
|
|
Cable diameter
|
1.6 mm (0.06 in) / 2.2 mm (0.09 in)
|
|
Polarity
|
+V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
|
|
Temperature range
|
-40°C to 45°C (-40°F to 113°F)
|
|
Relative humidity (RH)
|
Up to 90%
|
|
Gooseneck length
|
140 mm (5.5 in)
|
|
Sensitivity selection tolerance (at 1 kHz)
|
±1 dB
|
|
Colors
|
Black
|
|
|

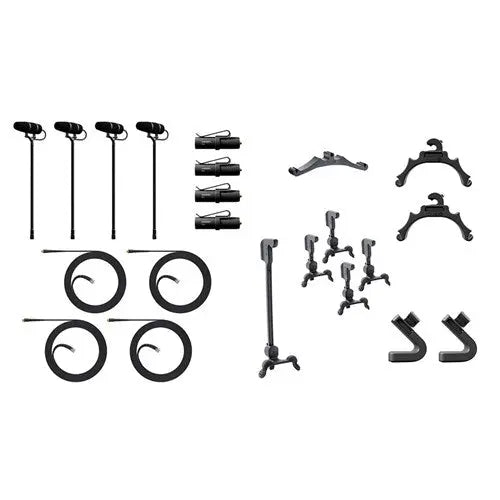

KIT Includes:
Microphone Clip for Accordion (A-CLIP): 5 g (0.18 oz)
Clamp Mount Microphone Clip (CM-CLIP): 16 g (0.56 oz)
Microphone Stand Clip (MS-CLIP): 24 g (0.85 oz)
Microphone Clip for Piano (P-CLIP): 20 g (0.71 oz)
Universal Microphone Clip (U-CLIP): 15 g (0.53 oz)
Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)
Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)
Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)
Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)
Microphone Clip for Cello (C-CLIP): 18 g (0.63 oz)
