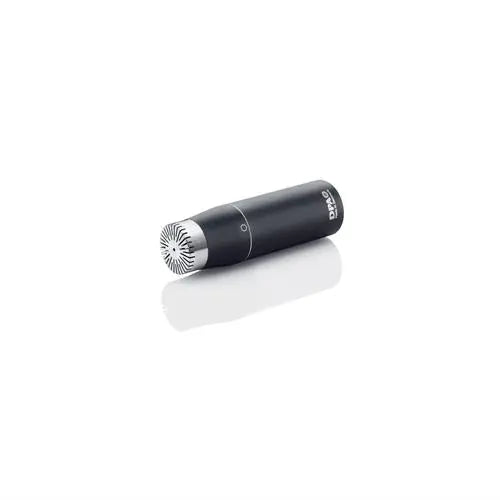

The d:dicate™ 4006 Omni Mic offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear frequency response from 10 to 20 kHz (±2 dB).
This mic is linear and true in character. It has earned its status as a worldwide recording standard and is the most popular mic in our d:dicate™Recording Microphone Series. This highly sought after mic has forged its enviable reputation over the past quarter of a century by repeatedly exhibiting its total transparency in any recording situation
SPECIFICATIONS
| Directional characteristics: |
Omnidirectional |
| Principle of operation: |
Pressure |
| Cartridge type: |
Pre-polarized condenser |
| Frequency range: |
10 Hz to 20 kHz |
| Frequency range, ± 2 dB: |
20 Hz to 20 kHz |
| Sensitivity, nominal ±2 dB at 1 kHz: |
40 mV/Pa; -28 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: |
Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: |
Typ. 27 dB (max. 29 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): |
Typ. 79 dB(A) |
| Total Harmonic Distortion (THD): |
< 1 % up to 134 dB SPL peak |
| Dynamic range: |
Typ. 119 dB |
| Max. SPL, peak before clipping: |
140 dB |
| Minimum load impedance: |
2 kohm |
| Output impedance: |
< 200 ohm |
| Cable drive capability: |
100 m |
| Output balance principle: |
Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): |
> 50 dB |
| Power supply (for full specifications): |
48 V Phantom power (± 4 V) |
| Current consumption: |
2.8 mA |
| Connector: |
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color: |
Matte black |
| Weight: |
63 g |
| Diameter: |
16 to 19 mm |
| Capsule diameter: |
16 mm |
| Length: |
64 mm |
| Output voltage, RMS: |
> 4 V |
| Polarity: |
+V at Pin 2 for positive sound pressure |
| Temperature range: |
-40 °C to 45 °C |
| Relative Humidity (RH): |
Up to 90% |
| Matching tolerance: |
± 0,5 dB |
| Phase deviation for kit: |
< 5° |
