provide optimal neutrality, accuracy and extremely low distortion.

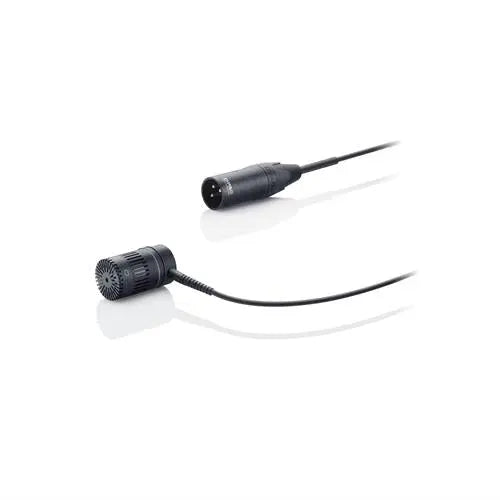

The principal appeal of the d:dicate™ 4011 Cardioid Mic is its directional quality and attention to detail. This mic makes everything sound like the original. The first-order cardioid pickup pattern provides superb separation between sound sources. It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound pressure levels (SPLs).
SPECIFICATIONS
|
Operating Principle |
Pressure Gradient |
Transducer |
Condenser |
Diaphragm |
0.75" / 19 mm |
Polar Pattern |
Cardioid |
Frequency Range |
20 Hz to 20 kHz |
Signal to Noise Ratio |
76 dB A-Weighted |
Equivalent Noise Level |
18 dB A-Weighted 25 dB ITU-R 468 |
Maximum SPL |
152 dB SPL |
THD |
< 1% |
Impedance |
200 Ohms |
Load Impedance |
2 kOhms |
Sensitivity |
-40 dB |
CMRR |
50 dB |
Dynamic Range |
121 dB |
|
Output Connectors |
1 x 3-Pin XLR |
Operating Current Consumption |
2.8 mA |
Operating Voltage |
48 V |
Operating Temperature |
-40 to 113°F / -40.00 to 45.00°C |
Operating Humidity |
90 |
Length |
2.52" / 64 mm |
Diameter |
0.75" / 19 mm |
Weight |
2.05 oz / 58 g |
