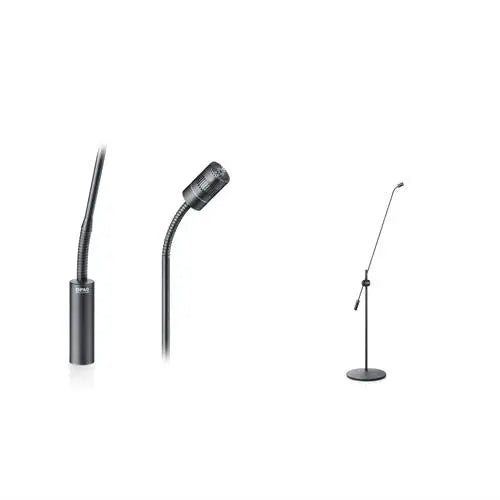

A complete cardioid microphone floor stand solution in the modular d:sign™ Microphone Series offering a high-quality stage voice or instrument mic.
| Directional pattern: | Supercardioid |
|---|---|
| Principle of operation: | Pressure Gradient |
| Cartridge Type: | Pre-polarized condenser |
| Frequency range: | 20 Hz to 20 kHz |
| Frequency range, ± 2 dB: | 40 Hz to 18 kHz |
| Sensitivity, nominal, ± 2 dB at 1 kHz: | 12 mV/Pa; -38 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | - |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 78 dB(A) |
| Total Harmonic Distortion (THD) at 1 kHz: | < 1 % up to 137 dB SPL peak |
| Minimum load impedance: | 2 kohm |
| Dynamic range: | Typ. 121dB |
| Max. SPL, peak before clipping: | 142dB |
| Output impedance: | 100 ohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing |
| Common Mode Rejection Ratio (CMRR): | > 40 dB |
| Power supply (for full specifications): | 48 V Phantom power (± 4 V) |
| Current consumption: | 3.5 mA |
| Color: | Matte black |
| Weight: | - |
| Microphone Diameter: | 19 mm (0.75 in) |
| Capsule diameter: | 19 mm (0.75 in) |
| Output voltage, RMS: | 2.2V |
| Microphone Length: | - |
| Polarity: | +V at Pin 2 for positive sound pressure |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Relative Humidity (RH): | Up to 90% |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
