TASCAM ML-32D 32-channel Analog/Dante Converter

A powerful and flexible solution

The TASCAM ML-32D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize Sub-D format connectors.

Features

• Dante focused interface for connection of external audio into or out of a Dante audio network
• 32 channel analog line input and 32 analog line outputs (48k/96kHz) using eight D-Sub connectors
• Dante primary and secondary connectors support redundancy
• Up to 96kHz/24-bit quality
• Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals
• 1U rack mount size

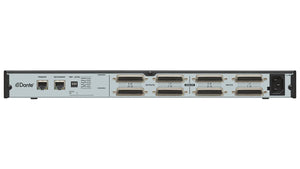

The ML-32D has four D-Sub inputs and four D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into – or extracted from – the Dante audio stream.

The ML-32D makes it possible to transmit 32-channel analog line input/output signals

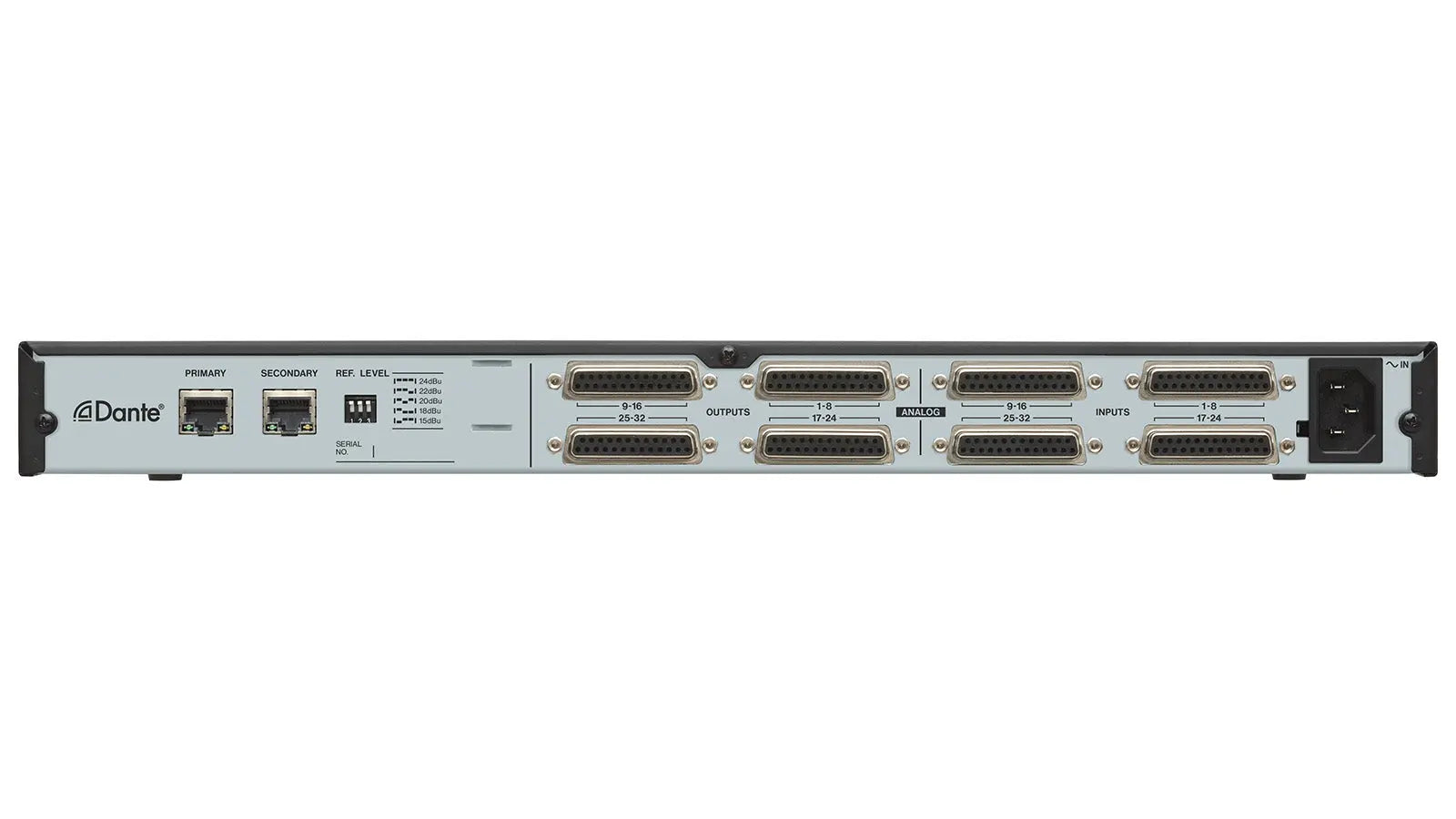

Primary and Secondary Network Connections Redundancy and Security

Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-32D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.

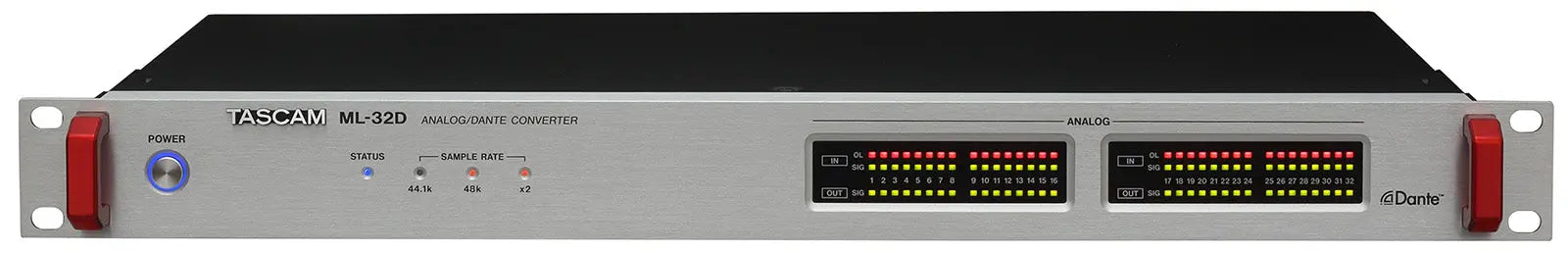

Integrated Signal/Overload Indicator

The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than -60dBFs.

Breakout Boxes That Enable Flexible Choice of Connectors According to Purposes

ML-32D is equipped with D-sub 25-pin connectors as analog line input/output connectors, and combining with optional breakout boxes enables conversion to Euro Block and XLR.
