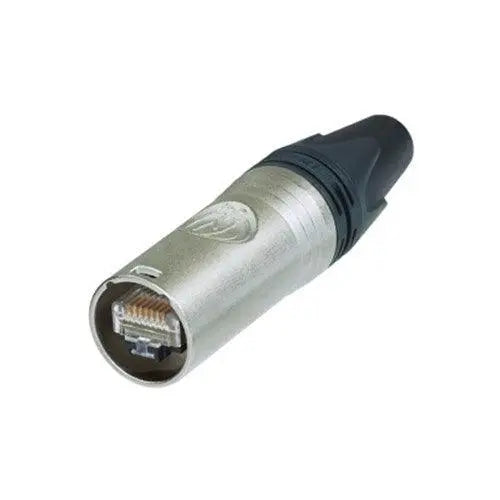

etherCON CAT6A cable connector self-termination, for insulation diameter ≤ 1.1 mm, nickel plating
The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG24/1 (solid) or AWG27/7 - AWG24/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features & Benefits
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant according to 802.3bt Type4
- IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Unique Neutrik chuck-type strain relief
Technical Information
| Title |
NE8MX6-T |
| Connection Type |
etherCON |
| Gender |
male |
| Dielectric strength |
1 kVdc |
| Insulation resistance |
> 0.5 GΩ |
| Rated current per contact |
1.5 A |
| Transmission performance |
CAT6A, acc. TIA/EIA rating
CAT6A, acc. IEC/ISO/EN rating |
| Power over Ethernet |
PoE++ acc. IEEE 802.3bt |
| Cable O.D. |
7.0 mm - 9.5 mm |
| Lifetime |
> 1000 mating cycles |
| Wiresize |
AWG26/1 - AWG24/1 (solid) |
|
AWG27/7 - AWG24/7 (stranded) |
| Locking device |
Latch lock |
| Insulation diameter |
0.85 - 1.1 mm |
| Bushing |
PA / PU |
| Contact plating |
Au |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Nickel |
| Strain relief |
POM |
| Protection class |
IP 65 (in combination with NE8FDX-*6-W) |
| Temperature range |
-40 °C to +70 °C |
