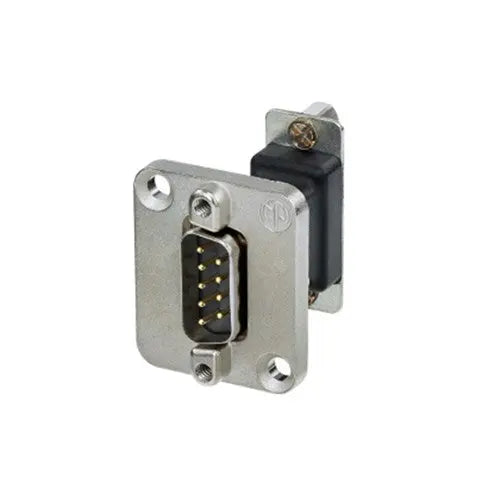

Neutrik NADB9MF FEEDTHROUGH D-SUB 9-PIN, MALE FRONT / FEMALE REAR, NICKEL HOUSING

9 pole D-SUB feedthrough, male to female, D-shape nickel housing

FEATURES & BENEFITS

• Ideal for audio networking and integration of equipment into video systems
• Universally accepted standard D-shape housing

SPECIFICATIONS

Product

Title

• NADB9MF

Gender

• male

Electrical

Contact resistance

• 30 mΩ

Insulation resistance

• > 5 GΩ

Number of electronical contacts

• 9

Rated current per contact

• 3 A

Rated voltage

• 50 V ac

Dielectric strength

• > 0.5 kVac

Mechanical

Panel thickness

• 4 mm

Wiring

• Feedthrough

Mounting direction

• Front mounting

Chassis shape

• D

Material

Contact plating

• Au

Contacts

• Brass (CuZn39Pb3)

Insert

• Steel , tin plated, PBT

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Nickel

Environmental

Flammability

• UL 94 V-0

Temperature range

• -25 °C to +85 °C
