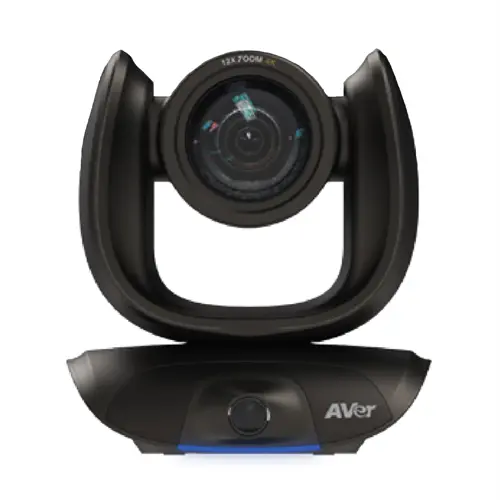

AVER CAM550

4K Dual lens PTZ Conferencing Camera

PRODUCT SPECIFICATIONS

Dual Camera

PTZ optical zoom lens

• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• 24X Zoom*: 12X optical; 2X digital zoom
• Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
• Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• AE, white balance: auto, manual override via PTZApp 2
• True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions*
• Minimum focus distance: 1.5m
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
• Preset number: 10 via IR remote, 128 via RS232

Secondary fixed lens (AI lens)

• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

FEATURES

• Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
• Preset framing tracks both preset area and speaker*
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• HDMI Picture in Picture (PIP) function
• Smart gallery** function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
• Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link** function

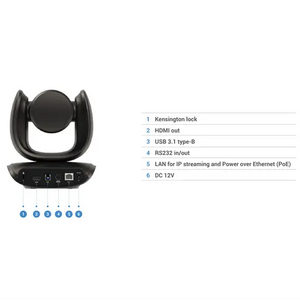

Connectivity

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI

HDMI & PoE

• HDMI 1.3: 1080p 30fps/ 60fps
• PoE+: 802.3at

Video Format

• YUV, YUY2, MJPEG
• Network video compression format: H.264, H.265
• Network protocol: RTSP, RTMP

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

*UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.

Control

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome. (Not support IE)
• OSD setting: HDMI out to TV monitor
• PTZApp 2

Power Supply

• AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
• PoE+: 802.3 at

Free Applications for Meeting Collaboration (For Windows® and Mac® computers)

• EZManager 2: Camera Central Management Software
  • Remotely group FW/SW upgrades, control the camera, and manage settings
• PTZApp 2: Camera Settings Software
  • Smart gallery/Virtual USB streaming/Preset Link
  • View live video, participant metrics, and meeting-interval information
  • Enable Skype for Business far-end control
  • Upgrade firmware automatically/manually
  • Control the camera
  • Set parameters and adjust the camera image
  • View operation status, diagnose issues
• EZLive: Broadcasting Software
  • Multi-camera real-time streaming, annotating, image capturing, and video recording

Environment Data

• Operation temperature: 0 to 40°C
• Operation humidity: 20% to 80%
• Storage temperature: -20 to 60°C
• Storage humidity: 20% to 80%

Dimensions

• Package dimensions: 253(L)*253(W)*271(H) mm
• Package weight: 4.8KG
• Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
• Remote control: 200 x 50 x 121mm/90g

Package Contents

• CAM550 unit
• Power adapter (10 ft/3 m)
• USB 3.1 type-B to type-A cable (3m)
• Remote control
• Mini DIN9 to mini DIN8 RS232 adapter cable
• HDMI cable (3 m)
• Wall mount bracket and screws
• QR code card
• Tripod screw
• Drill paper

Optional Accessories

• Mini DIN8 to D-Sub9 cable
• Ceiling mount*
• Foldable TV mount
• USB2.0 type-B to type-A cable (5 m)
• USB 3.1 Extension Cable (10 m/20 m/30 m)

*CAM550 is a dual lens camera and doesn’t support upside-down installation. For ceiling mounting, please purchase the AVer ceiling mount.

Security and Mount

• Kensington lock
• 1/4” tripod mounting screw
• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

System Requirements

• Windows® 7/10
• MacOS X 10.7 or later
• Google Chromebook™ version 29.0.1547.70 or higher

Hardware Specs

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

• Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
