Specification

WiFi
IEEE802.11 b/g/n 2.4GHz, 5GHz

LAN
10/100M RJ45

Bluetooth
V5.4, 15m

Bluetooth Transmit
Codec: SBC, AAC, aptX, aptX HD, aptX LL, aptX AD, LDAC, LC3
1x Bluetooth TX, able to connect up to 1 Bluetooth speaker or headphones

Bluetooth Receive
Codec: SBC, AAC, aptX, aptX HD, aptX AD, LDAC, LC3
2x Bluetooth RX, able to connect up to 2 smartphones

Broadcast
Auracast, 10m

Streaming Protocol
WiFi, AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, Roon Ready, DLNA, UPnP

*Roon Ready coming soon with OTA update.

Frequency Response
20Hz-20kHz±1 dB

THD+N/SNR
≤0.001 %/≥80 dB

Crosstalk
≥80 dB

DAC
AKM AK4493SEQ

ADC
AKM7735

SRC
CT7302SL

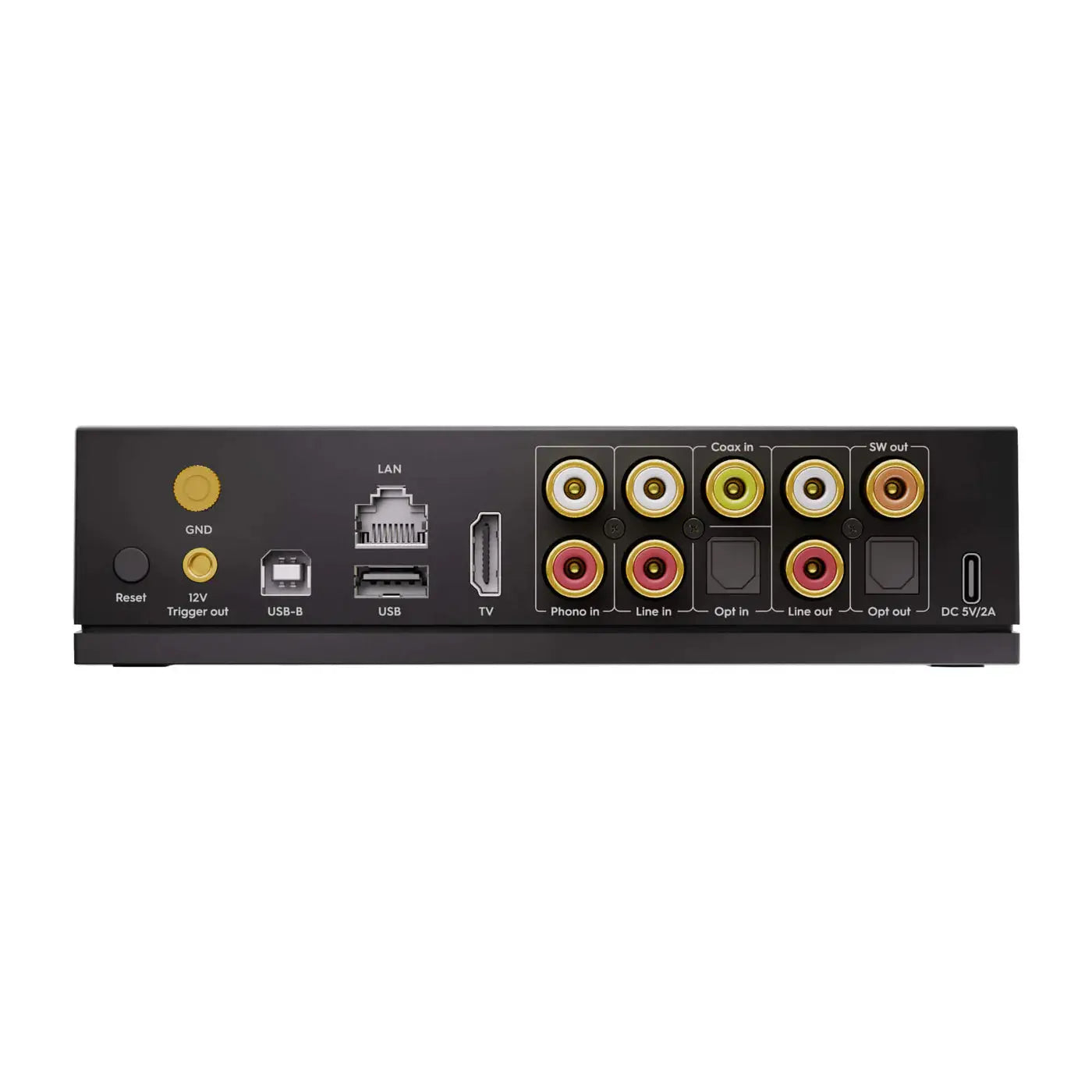

Audio Input
RCA Input x1
2 Vrms

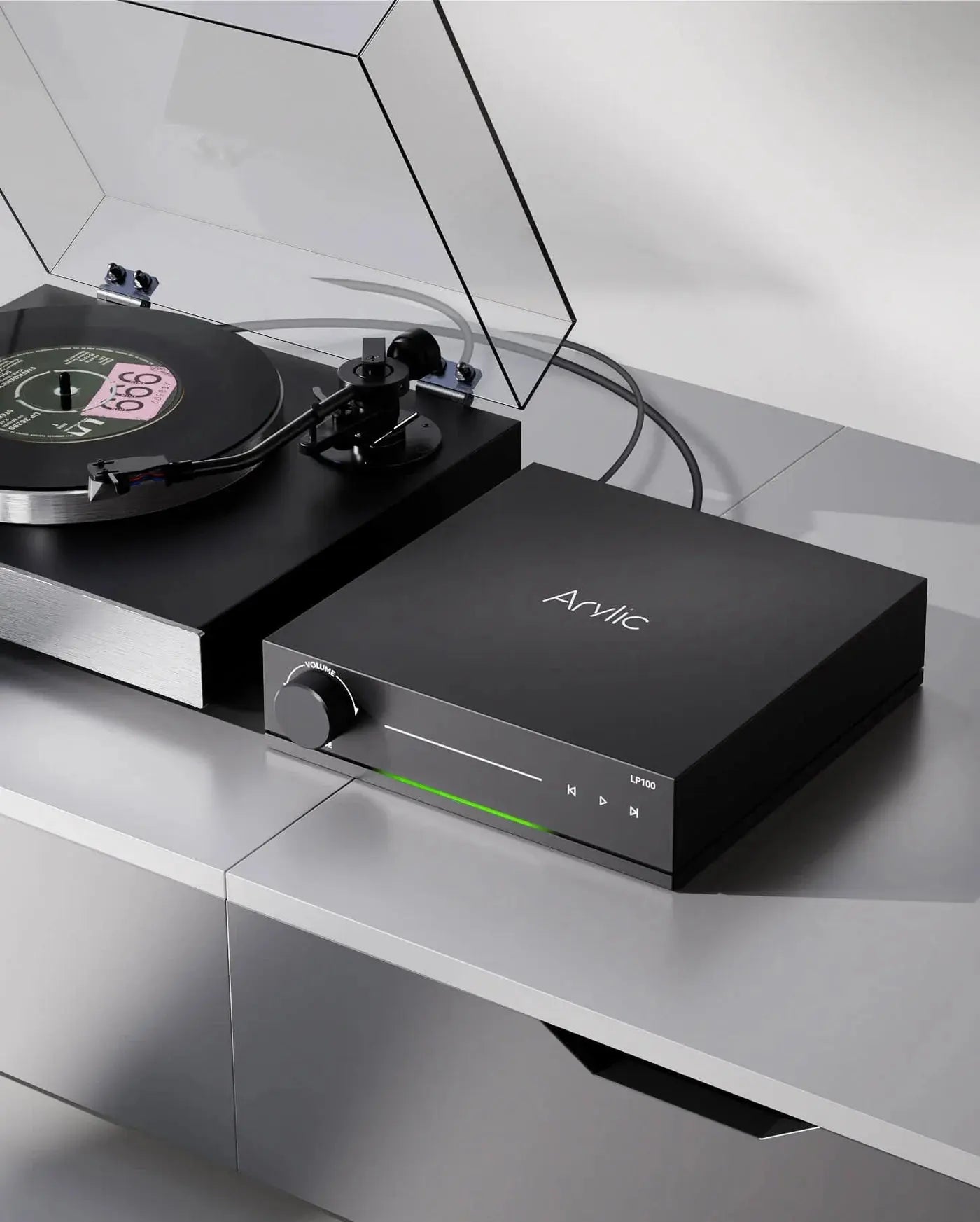

Phono Input x1
MM / MC, RIAA EQ Built in

Optical Input x1
PCM only, up to 192kHz/24bit

Coaxial In x1
Up to 192kHz/24bit

HDMI eARC Input x1
PCM only, CEC function supported

USB Host x1
USB disk drive playback, support resume playback Storage format: Fat16, Fat32, exFAT, up to 128GB Support codec: mp3, wma, m4a, aac, flac

USB-B DAC x1
For PC connection, Sample rate: 44.1~192kHz

Local Msuic
NAS, Mobile device music, USB flash drive music files

Speaker Out x1
Banana Plug

Line Out x1
RCA, Max 2 Vrms output

Optical Output x1
Up to 192kHz/24bit output

Subwoofer Out x1
Max 3 Vrms output, Crossover frequency: 250Hz

*Support simultaneously audio output.

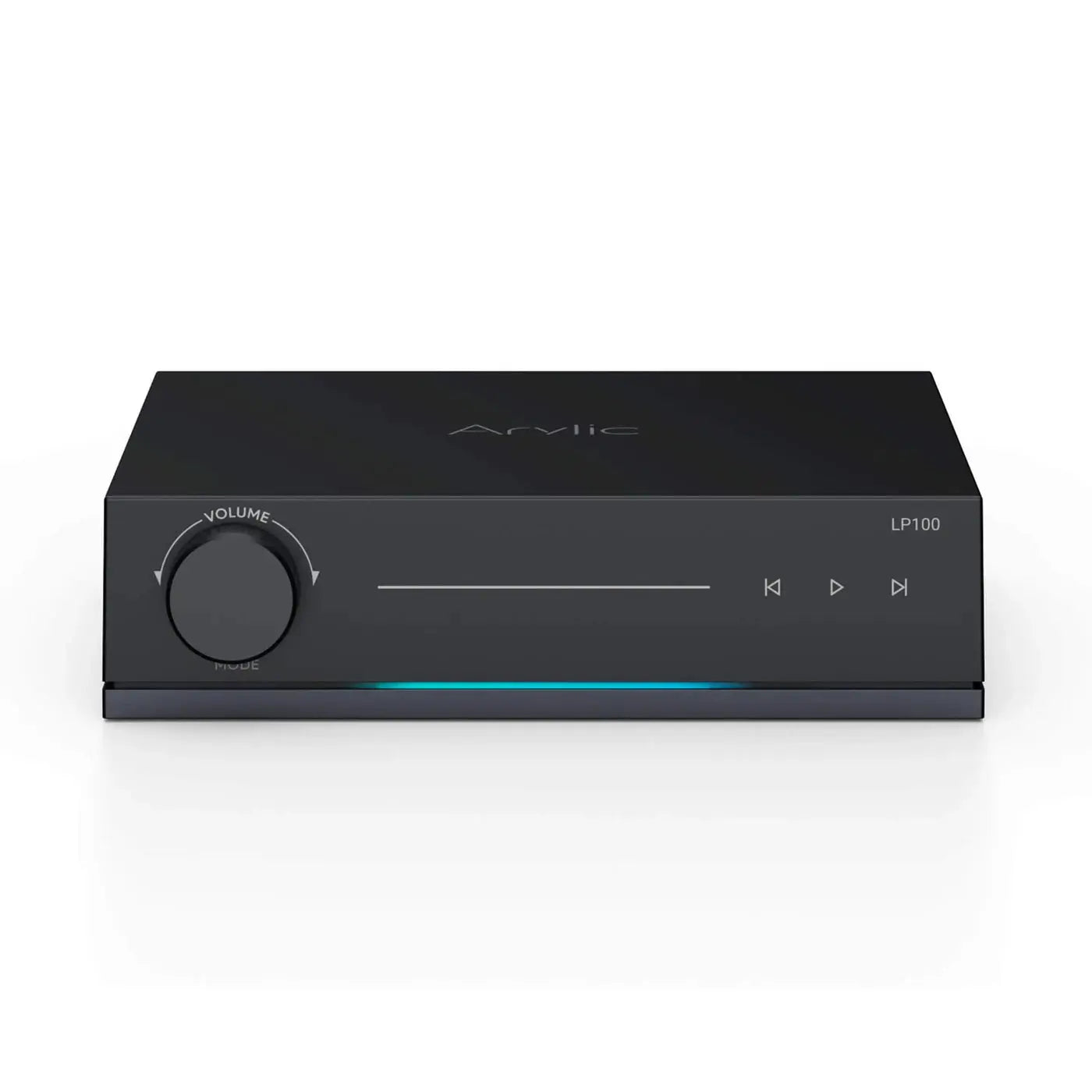

Buttons
Rotary Knob
Switch between modes, volume, and power.

Touch Buttons
Play/pause, skip tracks, Auracast.

Reset Button
Repair WiFi/Bluetooth, restore to factory settings.

APP
GO CONTROL APP

Voice Control
Siri, Google Assistant

Remote Controller
BLE remote control
Lifestyle knob control(optional)

Power Input
USB Type-C Port 5V/2A

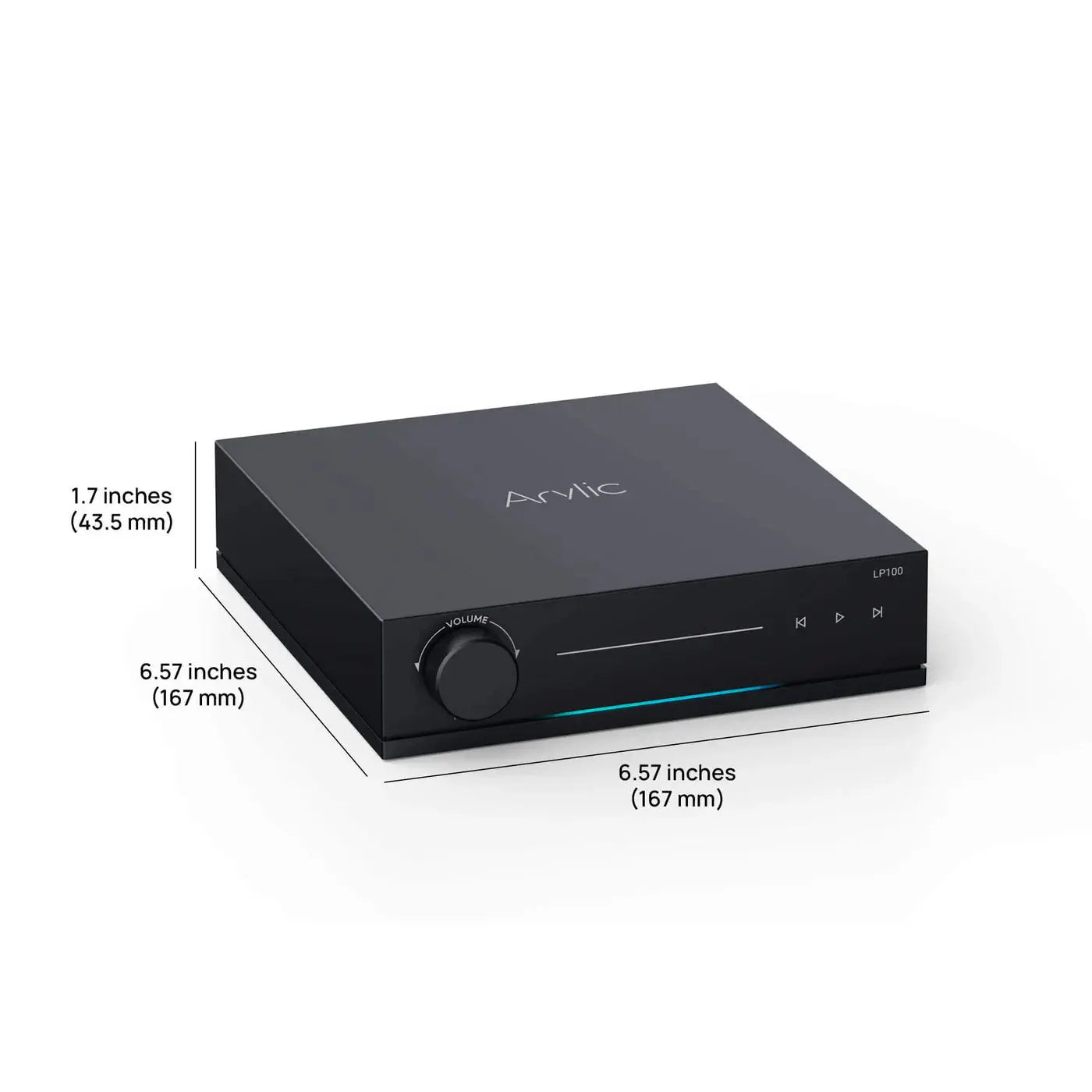

Size
167x167x43.5 mm

Weight
550g

Trigger Out
12V

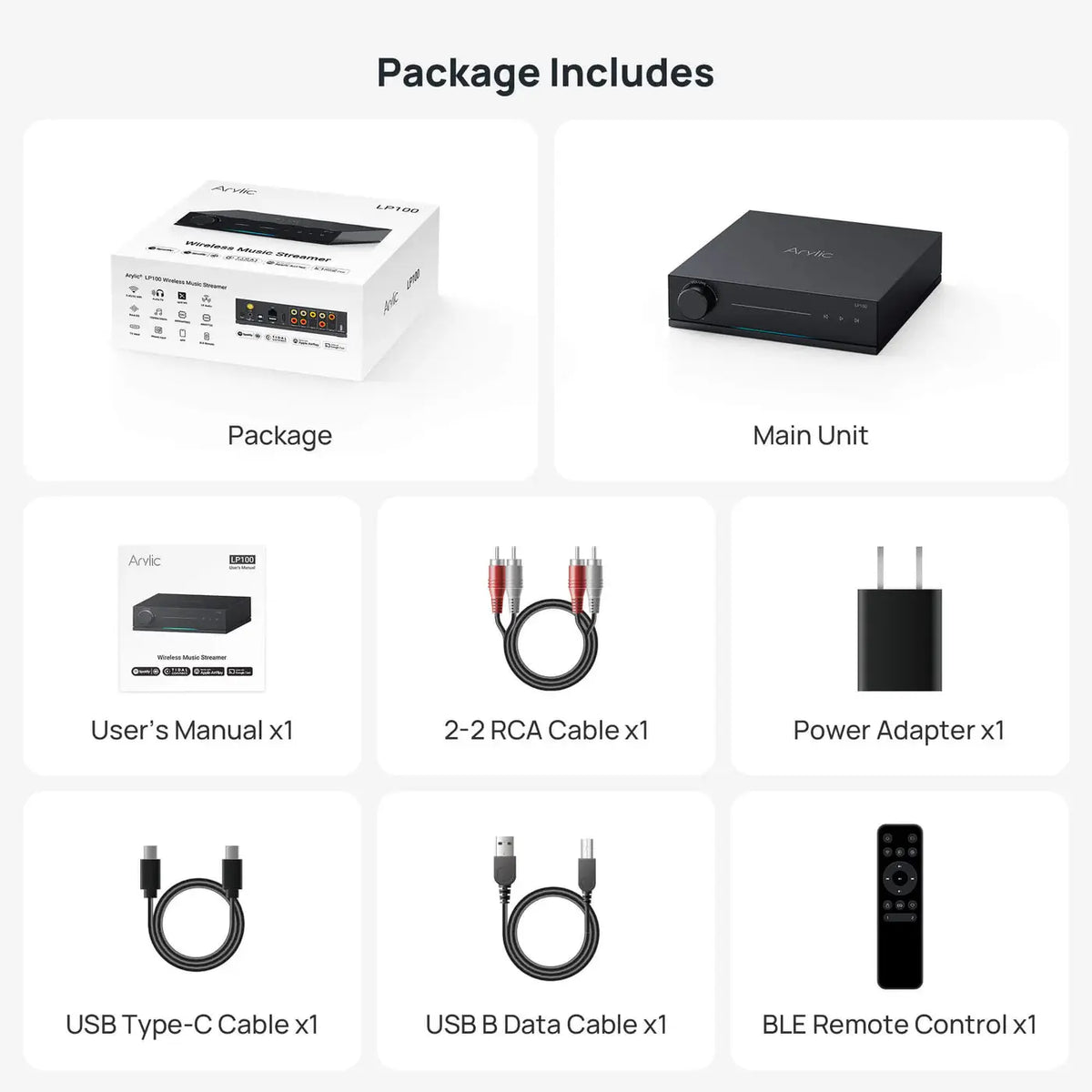

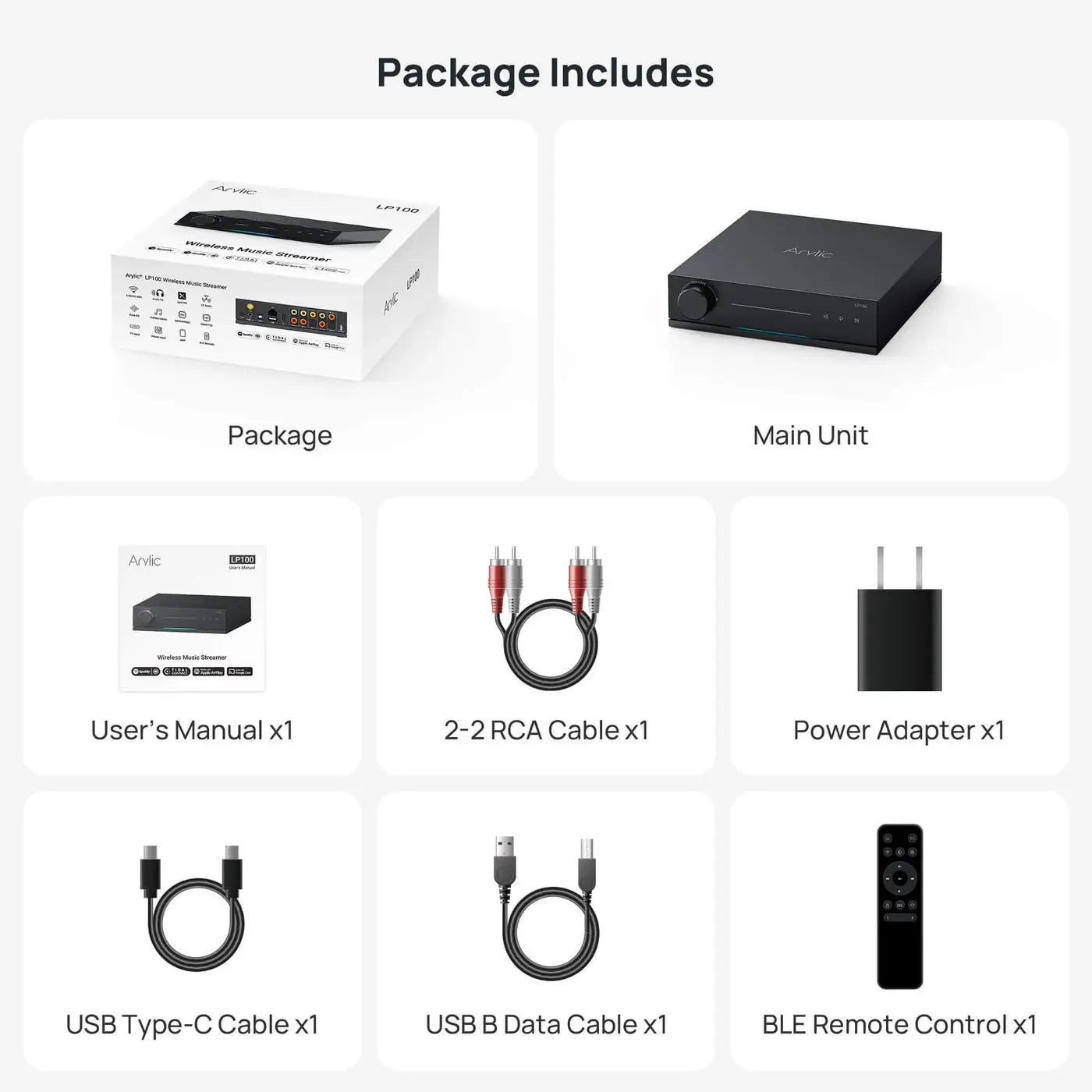

Package Includes
LP100 x1
BLE Remote Controller x1
Manual x1
5V/2A Power Adaptor x1
2-2 RCA Cable x1
USB Type-C Power Cable x1
USB Type-B Data Cable x1

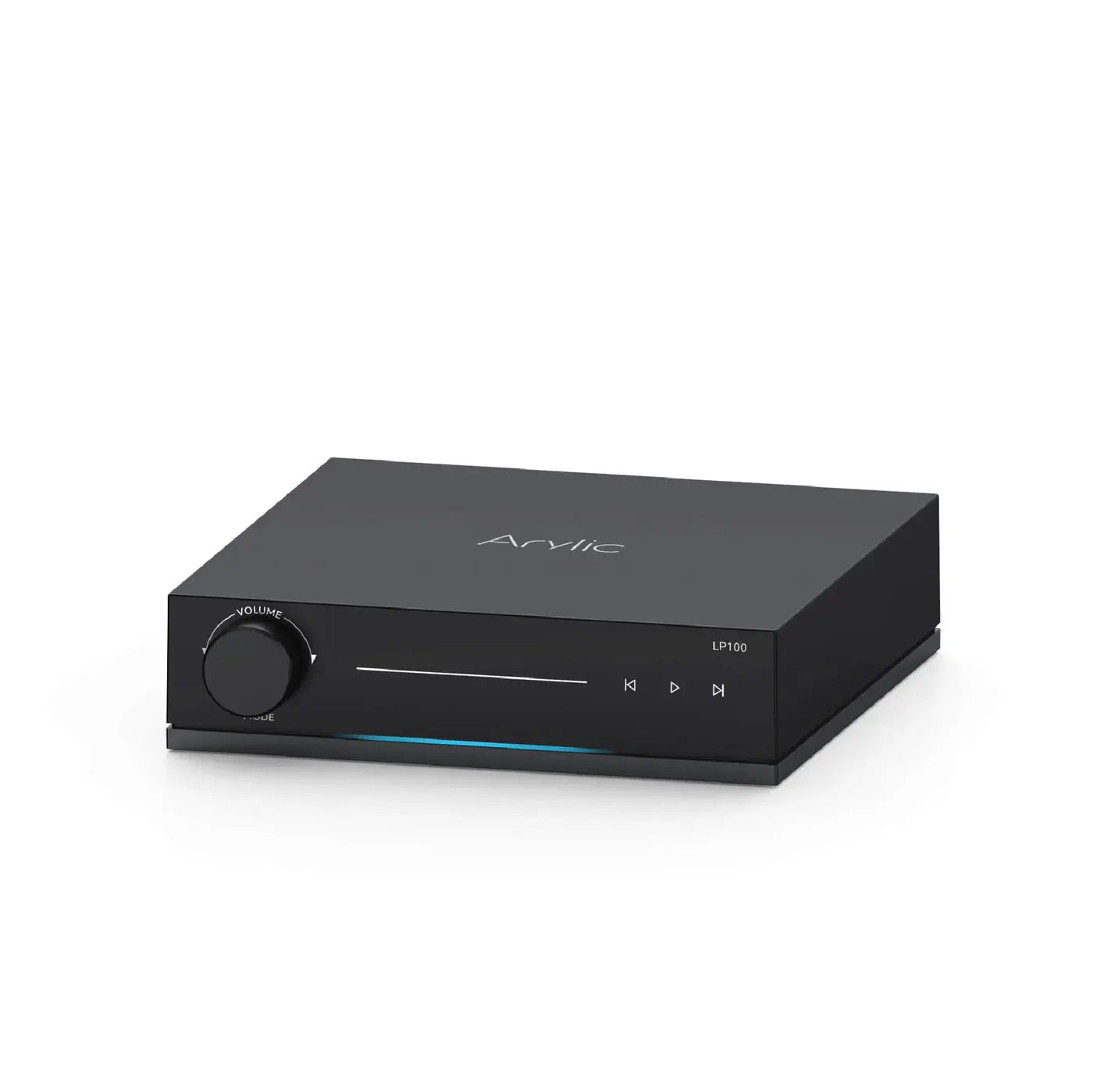

LP100 HiFi Music Streamer
