TASCAM has a long history of high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview, TASCAM has created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.
TASCAM Sonicview mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

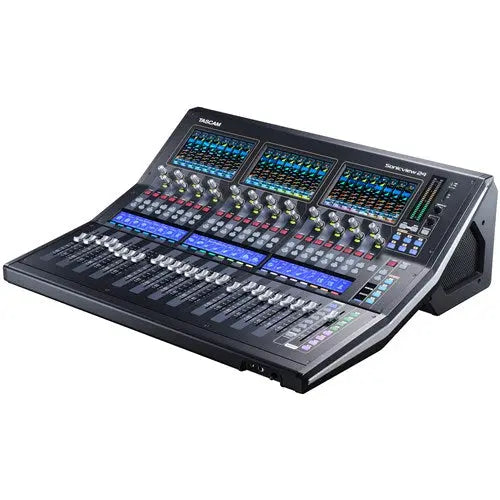

The TASCAM Sonicview 24 offers motorized channel faders in three banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.
Truly the next generation in mixer user interfaces, the powerful intuitive TASCAM Visual Interactive Ergonomic Workflow (VIEW) system lets you quickly and easily configure the TASCAM Sonicview 24's three touch screens.
Thanks to the VIEW user interface, there are three different ways to view your settings, and each touch screen can be configured independently, so you can monitor and control any combination of settings you want, in whichever screens you want, whenever you want. For instance, you could monitor levels for eight channels of vocals on screen 1, while tweaking the parametric EQ on a drum submix in screen 2 and keeping an eye on the output-bus level and compression curve on screen 3.

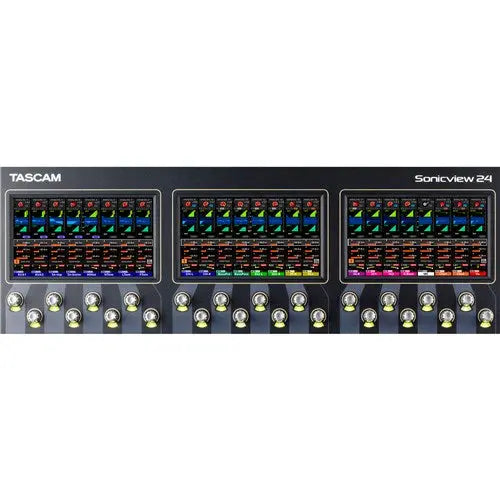

Channel Strip View lets you monitor and control eight adjacent channels, and view them as virtual channel strips like an analog mixer layout.
Module View lets you monitor and control any three sets of parameters simultaneously for one single channel.

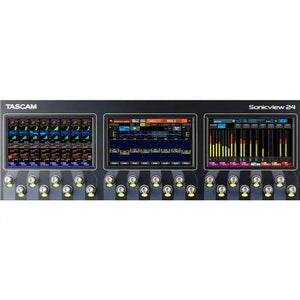

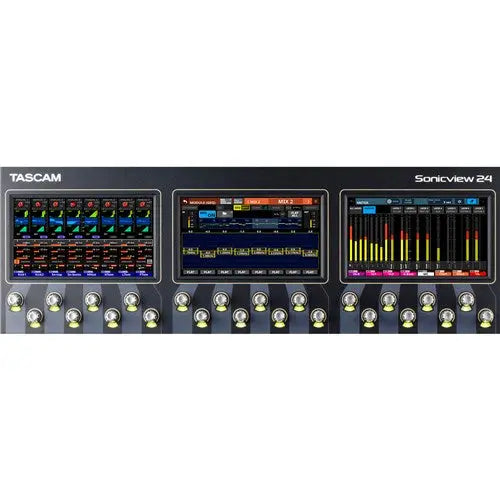

Individual View lets you monitor and control a custom selection of functions for any channel or group of channels.
TASCAM Sonicview delivers the finest audio performance in its class, thanks to a 54-bit float-point FPGA mixing engine; continuous, high-definition 32-bit/96 kHz sampling; and 32-bit analog-to-digital converters. The mixing engine's float-point processing makes it possible to flexibly change levels without compromising resolution and FPGA mixing engine make it possible to ensures ultra-low latency, even in analog-to-analog connections. The result is no-compromises performance, including with Dante networks and in-line monitoring systems.
The TASCAM Sonicview 24 offers 24 channels with XLR mic/line inputs and 8 channels with both XLR mic inputs and balanced TRS line inputs. You also get TRS insert points on two channels, two stereo pairs of RCA aux inputs, and an XLR input for a talkback mic.
There's much more to TASCAM Sonicview than meets the eye. Internally, TASCAM Sonicview mixers have a generous 40 mono channels, 2 stereo channels and 4 stereo FX return channels so you can fly in backing tracks to make a small praise band sound huge, accommodate additional physical audio inputs via the expansion slots for larger ensembles, manage sources from every part of a venue via the Dante network, and mix dozens of DAW tracks. Eight DCAs enable you to easily control groups of channels. The programmable layer keys select which custom combination of channels and output buses are controlled by the motorized faders.
Each input channel can use any or all of 11 processing functions, which can be independently set:
| Delay (Input/Pre-fader) | Phase | Digital Trim | High-pass Filter |
| Gate/Expander/De-esser | 4-band Parametric EQ | Compressor/Ducker | Solo |
| Mix 1-22 Send/Pan (Pre/Post) | FX 1-4 Send/Pan (Pre/Post) | Fader/Pan/Mute to L/R |
Each TASCAM Sonicview microphone input feeds a TASCAM Class 1 HDIA (High Definition Instrumentation Architecture) preamp—the finest mic preamp we've ever made. Thanks to an instrumentation amplifier with extremely good noise characteristics in the first stage, Class 1 HDIA microphone preamps exhibit excellent EIN, signal-to-noise ratio, distortion ratio, and frequency response. TASCAM Sonicview ultra definition mic preamps will pick up the slightest nuance from rosin on a violin bow to the subtle dynamic changes of a voice or saxophone. The mic inputs can accept up to +32 dBu signals, providing plenty of headroom for sudden level increases.
The combination of Class 1 HDIA preamps, 32-bit/96 kHz ADCs, and our 54-bit FPGA mixing engine is impressive but we didn't stop there: We conducted extensive internal and external evaluations to tune TASCAM Sonicview mixers for optimal performance. The result is best-in-class sound that will never disappoint.
TASCAM Sonicview's integrated 32-in/32-out USB audio interface makes it a first-rate front end for recording and broadcast studios, as well as for capturing live events. Record your choice of channel direct outs, flex buses, and the L/R main bus to your favorite DAW at up to 96 kHz with the same 32-bit precision used throughout the TASCAM Sonicview.
You can simultaneously capture the main mix directly to the onboard stereo SD/USB recorder — handy when the band wants to listen to their performance at the hotel or on the bus. A top-panel port also lets you record in stereo to a USB flash drive.
Dante® audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, houses of worship, and much more. TASCAM Sonicview consoles can serve as the audio center of these systems, thanks to a built-in 64-in/64-out Dante interface that supports Dante Domain Manager and have AES67 and SMPTE ST 2110 interoperability. Two Dante ports enable redundant streams.
Whether onstage, backstage, in a control room, or at the rear of a concert hall, you're always in full control of your TASCAM Sonicview 24 mixer. Just connect a Wi-Fi router to the TASCAM Sonicview's Ethernet port and use free TASCAM Sonicview Control software for macOS, Windows, and iPadOS to manage your TASCAM Sonicview 24 from virtually anywhere in the venue. Edit settings offline in advance so you're ready to go when a session or show begins, then make adjustments from the console or from the software.
TASCAM Sonicview offers intuitive, analog-like operation, while providing a variety of convenient digital functions that can be customized as needed. Eighteen user-defined function keys can be assigned to recording with the internal recorder, playback, and more. Several keys are conveniently preassigned to functions such as Sends On Fader and Snapshot Recall but you can reassign them as desired. A footswitch (not included) can be used to tap in delay-time settings.
TASCAM Sonicview's User Keys now offer expanded functionality, with up to 64 additional keys accessible via the LCD screen. This enhancement delivers greater flexibility and more customization options for frequently used functions. The new User Defined Control Library makes it easy to store and recall multiple User key layouts, GPIO and Foot switch—ideal for switching between different workflows, users, or production scenarios.
When you're mixing a show, broadcast, or crucial recording session, you can't afford to hit the wrong button or grab the wrong control. TASCAM Sonicview's mixing surface makes it easy to see at a glance what you're controlling, even in a dark concert hall. Each channel strip includes a channel-name LCD with a full-color LED. The User keys feature full-color LEDs, so you can group each input source and function by color and view them easily. The Solo and Channel Select keys have distinctive shapes, and the Mute key is guarded with a cap. With these features and the customizable touch panels, you always know where you are and what you're controlling.
The TASCAM Sonicview features a gain-sharing Auto Mixer function that automatically controls gain in real time, ensuring optimal conditions at all times during panel discussions, events, and talk shows where multiple participants are speaking.
Four groups allow up to four different mixes to be created independently for each group. A PRIORITY function that enables only the chairperson or moderator to speak, and a WEIGHT function allows the level of a particular channel to be mixed higher or lower for each group.
The PRIORITY function can also be externally controlled via GPIO IN.
Two monitor buses are now available with V1.5.0, Monitor 1 and Monitor 2. Each monitor section comes with 6 switchable monitor source presets with essential functions such as MUTE/DIMMER. In addition, a location setting has been added to automatically mute the monitor speakers when in the same enclosed space as a live microphone.
Input sources can be freely assigned in the talkback section. Also, outputs can now be directly assigned into each bus or monitor, or to output routers. All of these settings and OSC on/off settings can be assigned to, and controlled by USER keys for quick control a variety of broadcast system and monitoring environments.
The corresponding audio fader level can be operated in conjunction with the video material tally from the video switcher. Tally events can be input via GPIO, with 8 inputs on the TASCAM Sonicview and up to 40 inputs when a SB-16D is connected.
Various parameters (ON LEVEL, OFF LEVEL, WAIT TIME, RISE TIME, HOLD TIME, FALL TIME) can be set on the channel selected as the control target. It enables simple sound and video interlocking operation in broadcast studio systems as well as in various outside broadcasting such as sports.
By installing the optional IF-ST2110 card (sold separately), IP connection compliant with SMPTE ST 2110 is possible, making TASCAM Sonicview a mixer that is compatible with a ST2110 system.
Main Features – IF-ST2110 Expansion Card
Integrate your TASCAM Sonicview console into your Ember+ network and unlock powerful remote control capabilities. With expanded protocol support, a wide range of Sonicview parameters are now accessible remotely - bringing deeper connectivity and control to your workflow.
* Use the Ethernet port on the TASCAM Sonicview main unit for Ember+.
The TASCAM Sonicview supports SNMPv1 and SNMPv2c, allowing monitoring of the unit over the network.
* Use the Ethernet port on the TASCAM Sonicview main unit for SNMP.Additional Features
