Name: Blackmagic PYXIS Monitor
Brand: Blackmagic Design
Price: 495.0 AUD
Availability: OutOfStock

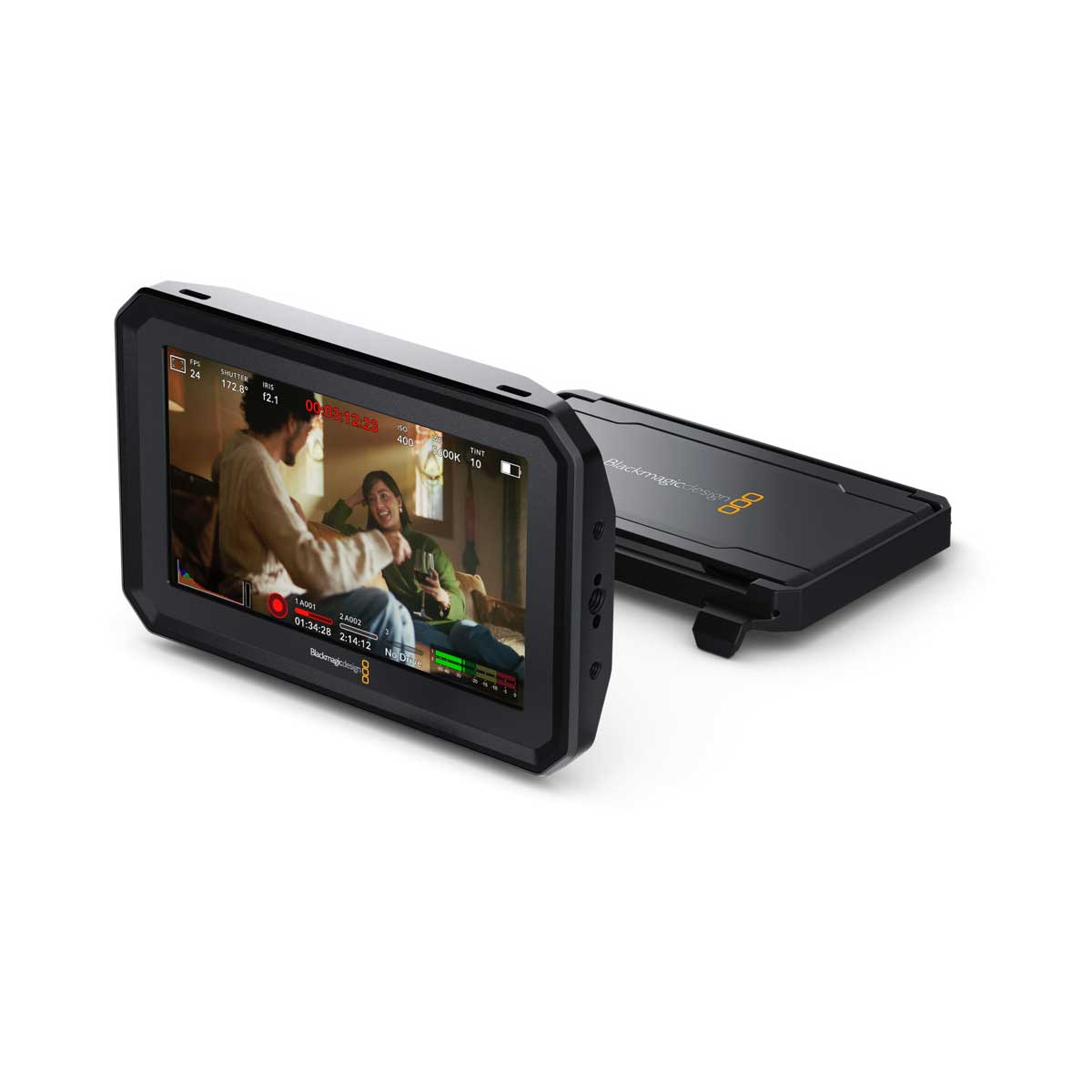

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.

onnections

USB-C with Locking Connector

Video, power, data and software updates.

Features

Display Size

5 inch.

Display Resolution

Full 1920 x 1080.

Display Type

LCD capacitive touchscreen.

Display Brightness

1500 nits.

Frame Rates

Up to 60fps.

Tally

Rear facing LED tally light.

Accelerometer

Automatically rotates image when monitor mounted upside down.

Control

On Screen Controls

Tap screen to control Monitor Overlays,Frame Rate, Shutter, Iris, Timecode,ISO, White Balance, Tint, Power,Record Start/Stop, Media, Audio,Focus Zoom, Digital Slateand camera menus.

Button Controls

Includes F1, F2, F3 assignable functionbuttons to recall preset parameters ortoggle functions.

Function Button Presets

FPS: Preset Value

Iris: Preset Value

WB: Preset Value

ISO: Preset Value

Shutter: Preset Value

Function Button Toggle

Clean Feed

Status Text

Display LUT

Frame Guides

Focus Assist

False Color

Zebra

Grid

Safe Area Guide

Off Speed Rec

Focus Zoom

Focus

Record

Auto White Balance

Color Bars

Playback

False Color + Zebra

OIS

Stream

Still

Mounting

Mounting Points

1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.

2 x M4 bottom mounting points.

1 x 1/4-20 side mounting point with ARRI locating pin pattern.

2 x M4 side mounting points.

Compatible Cameras

Blackmagic PYXIS 6K

Blackmagic PYXIS 6K PL

Blackmagic PYXIS 6K EF

Blackmagic URSA Cine 12K LF

Blackmagic URSA Cine 17K 65

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 and 11.

Power Requirements

Powered over USB-C.

Physical Specifications

Environmental Specifications

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic PYXIS Monitor

Blackmagic PYXIS Clip On Sunshade

Welcome wallet with QR code for software download

Blackmagic Design Sticker

Warranty

Product Warranty

1 Year Limited Manufacturer’s Warranty.
