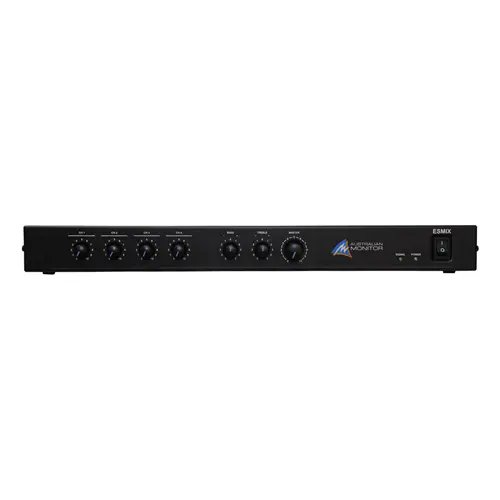

ESMIX

4 Channel Mono Mixer

Cost Effective, Basic Features

The Australian Monitor ESMIX is the latest evolution of our Essentials series of Mixers, now featuring 2 channels of priority VOX muting an integrated tone generator with a modern look and finish.

The mixer maintains the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs and 12V phantom power.

The ESMIX offers the latest features to meet projects requiring the most cost-effective solutions.

• 4 microphone/line input mono mixer
• Master volume, overall treble and bass controls
• Input 1,2 vox muting priority
• Integrated tone generator. Evac/Alert/Interuder/Bell/Chime tones
• 12VDC phantom power
• 1 RU rack mountable chassis

SPECIFICATIONS

• Total Inputs: 4
• Frequency Response: 20Hz - 20kHz
• Input Channels: 4 MIC or Line
• THD+N: < 0.5%
• Output Channels: 1 Mono
• Signal to Noise Ratio: > 84dB
• Mounting: 1RU
• Input Sensitivity: MIC: 1.2mV / Line: 160mV
• Warranty: 5 years
• Input Voltage: 100-240Vac 50-60Hz
• Product Dimensions:
  • (W x D x H) 182mm x 192mm x 44mm Shipping Dimensions
  • (W x D x H) 500mm x 305mm x 134mm
• Net Weight: 2.5 Kg
• Shipping Weight: 3.5 Kg
• GTIN EAN: 9323383020122
