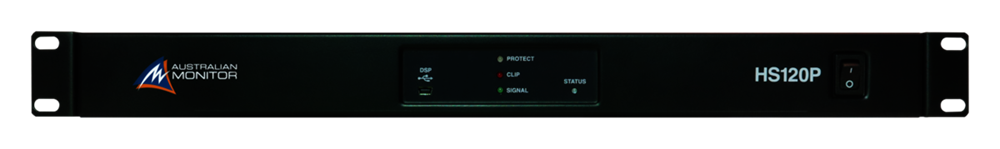

Australian Monitor HS120P Power Amplifier 1 x 120W D-Class 100V/70V/8Ohm 1RU

The Australian Monitor HS120P is a single-channel 120 W Class D power amplifier from the HSP series. It combines USB and RS232 control with integrated mini DSP in a 1RU chassis for commercial sound reinforcement.

Key features

• 1 x 120 W Class D amplifier
• 4 ohm, 70 V or 100 V output configurations
• Mini DSP including volume control, mute, compressor/limiter, filtering and pink noise/sine wave generator

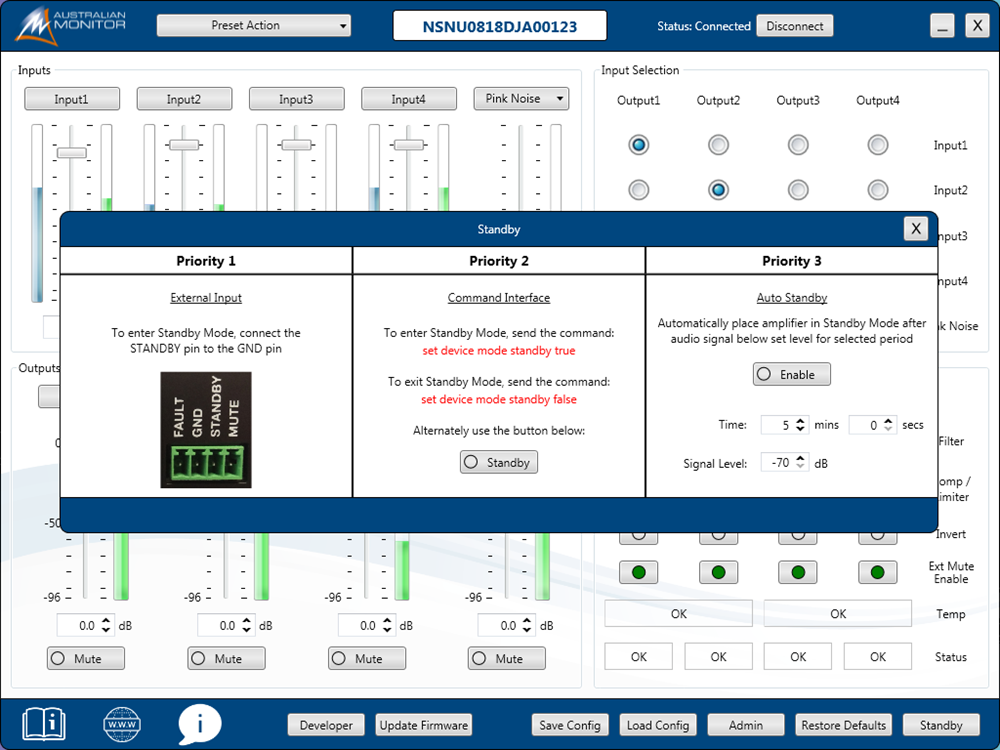

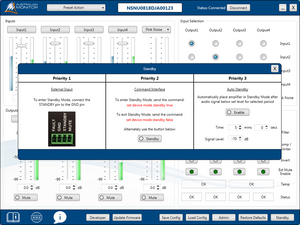

• USB and RS232 control, programmable via PC UI application
• Contact controls for mute, standby and fault status
• 1RU format with convection cooling

Specifications

• Output power: 120 W per channel
• Frequency response: 100 Hz - 16 kHz
• THD+N: < 0.2% (-3 dB)
• Signal-to-noise ratio: > 94 dB
• Input sensitivity: 1 Vrms
• Input voltage: 220-240 Vac, 50-60 Hz
• Dimensions (W x D x H): 483 x 325 x 44.5 mm
• Weight: 5.0 kg
• Warranty: 5 years
