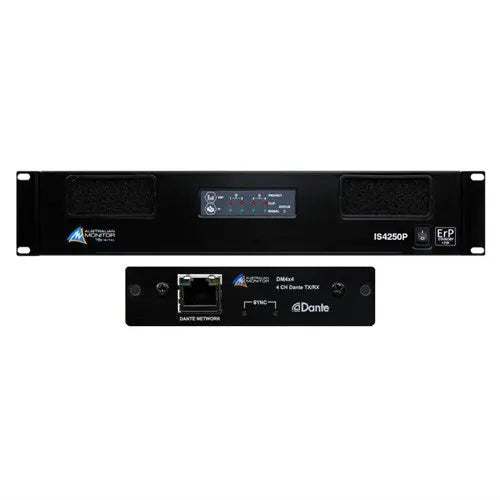

IS4250P
4 x 250W Power AmplifierEthernet, DSP, Dante® SupportThe ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.The ISP also features an embedded User Interface which can be accessed from any device supporting an HTML5 compliant web browser.Configuration Options:
- IS4250P - 4 inbuilt line level inputs
- IS4250P + DM4x4 - 4 inbuilt line level inputs plus expansion slot of 4 Dante Inputs and 4 Dante Outputs
- IS4250P + ANALOGUE4 - 4 inbuilt line level inputs plus expansion slot of 4 line level inputs
- 4 x 250W power amplifier
- 4 ohm, 70V and 100V output options
- Class D topology
- Ethernet Control
- Embedded user interface accessible using any HTML5 web browser
- Full DSP - Input Matrix, Filters, Parametric Ex, Compressor / limiter, Delay, Mute, Inversion
- 4 software configurable general purposes input/outputs
- ErP(1275/2008/EC) Low Power Standby (<2W)
- Dante® Support using DM4x4 Expansion Card
- Analogue Expansion Card option. ANALOGUE 4
Specifications
- Output Power per Channel: 250W
- Frequency Response: 75Hz - 16kHz
- Output Channels: 4
- THD+N: < 0.02% (-3dB)
- Output Mode: 4 Ohm-70V-100V
- Signal to Noise Ratio: > 100dB
- Input Voltage: 100-240Vac 50-60Hz
- Input Sensitivity: 1Vrms
- Mounting: 2RU
- Cooling: Fan-assisted
- Warranty: 5 years
- Product Dimensions:
- (W x D x H) 483mm x 389mm x 89mm Shipping Dimensions
- (W x D x H) 546mm x 491mm x 197mm
- Net Weight: 16.0 Kg
- Shipping Weight: 18.6 Kg
- GTIN EAN: 9323383020009
DM4X4
Dante® Expansion Card
4 Input, 4 Output
Optional 4 Input, 4 output Dante® transceiver card for IS series power amplifiers. Suitable for
- IS2120P 2 x 120W
- IS2250P 2 x 250W
- IS4120P 4 x 120W
- IS4250P 4 x 250W
Dante® expansion card for use with the IS series of power amplifiers.
Provides 4 inputs channels from a Dante network which can be routed to any amplifier output channel.
In addition, 4 Dante® outputs channels are available to route any analogue inputs back on to the network.
