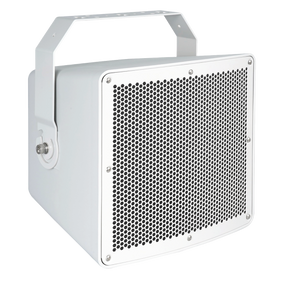

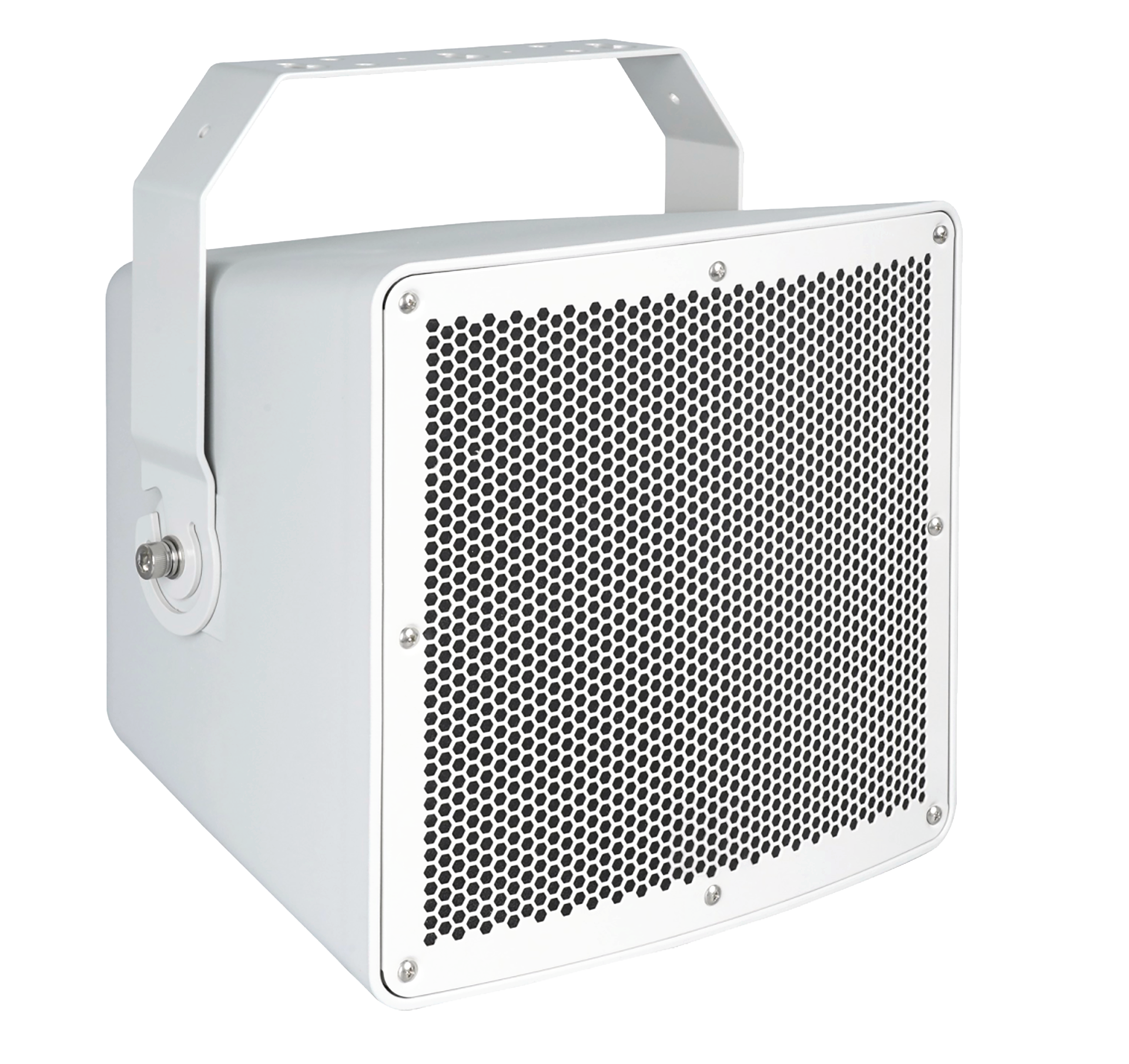

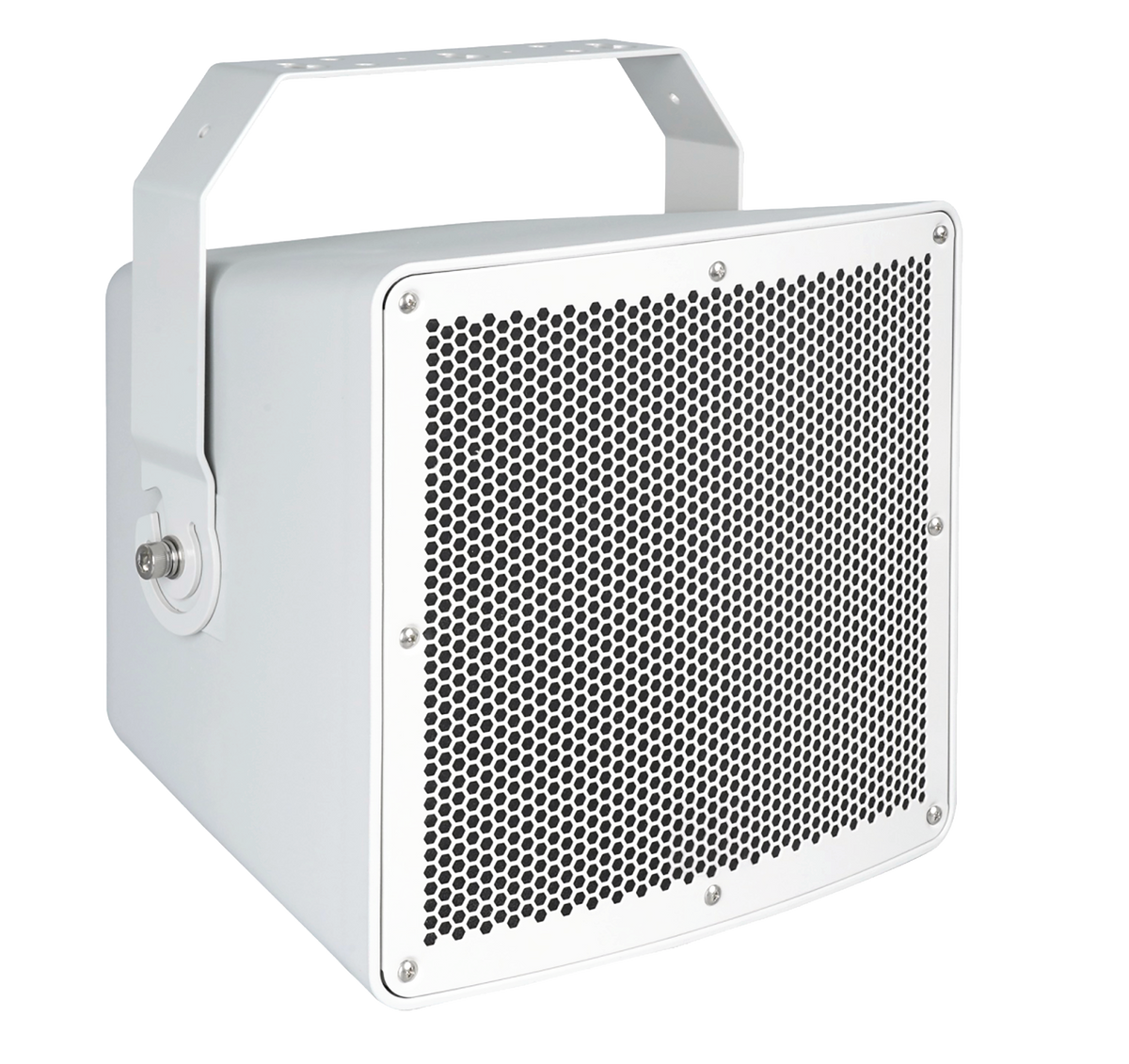

The Australian Monitor LRS8 is an 8 inch 2-way coaxial long range speaker in white, part of the LRS series of high power, all weather projection speakers for outdoor paging and background sound. Its IP66-rated housing suits open-air locations such as transport hubs, sports facilities and outdoor precincts.
Key features
- 8 inch two-way coaxial design
- Switchable 8 ohm, 70V and 100V line operation with multiple power tappings
- IP66-rated weatherproof housing
- CE and UKCA compliant
- Adjustable tilt and swivel wall mounting bracket with integrated safety wire point
- Locking handle for secure aiming

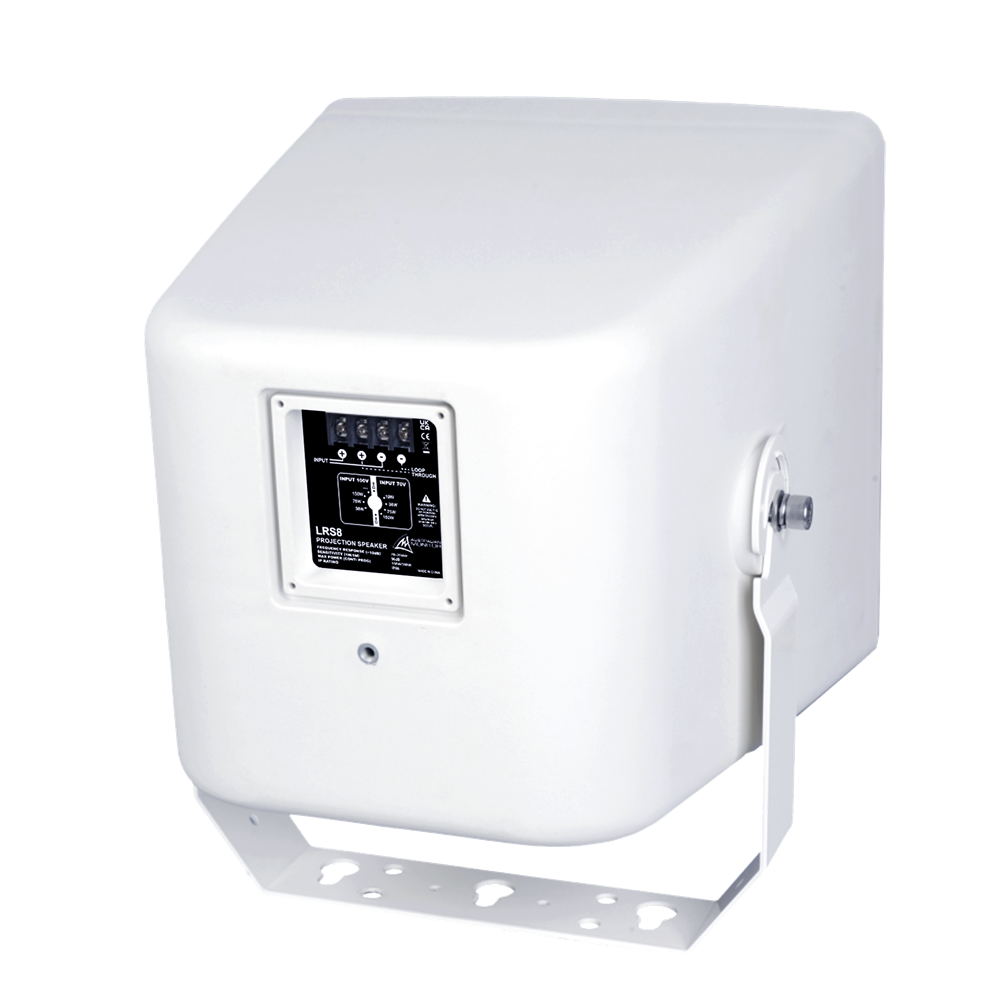

- Sealed connection panel with screw terminals
- Powder-coated stainless steel bracket and grill
Specifications
- Power (continuous/program/peak): 150W / 300W / 600W
- Tappings: 150W - 67 ohm; 75W - 133 ohm; 38W - 267 ohm; 8 ohm
- Frequency response (-3dB): 70Hz - 20kHz
- Sensitivity (1W/1M, half space): 96dB
- Maximum SPL (continuous/program/peak): 118dB / 121dB / 124dB
- Dispersion: 84 degrees horizontal, 55 degrees vertical
- Drivers: 1 x 8 inch LF (2 inch voice coil), 1 x 1 inch HF (1 inch voice coil)
- Crossover: 3kHz passive
- Housing: PP plus 30% fibreglass
- IP rating: IP66
- Colour: White (RAL9016)
- Input connector: 4-way screw terminal block (cable up to 12-22AWG)
- Operating temperature: -25 to +70 degrees C
- Relative humidity: 45% to 85%
- Dimensions excluding bracket (W x D x H): 315.5 x 350 x 307.5mm
- Weight: 11.5kg
