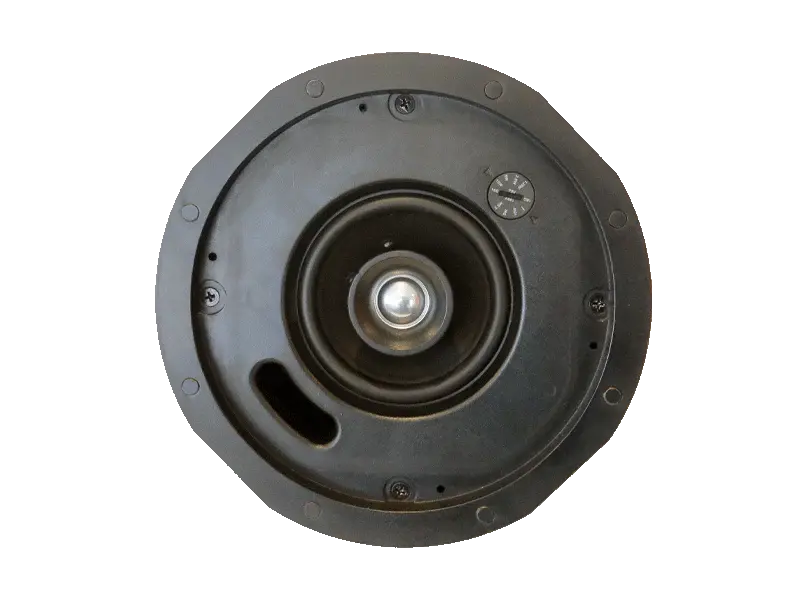

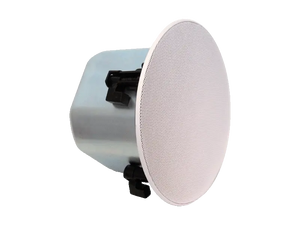

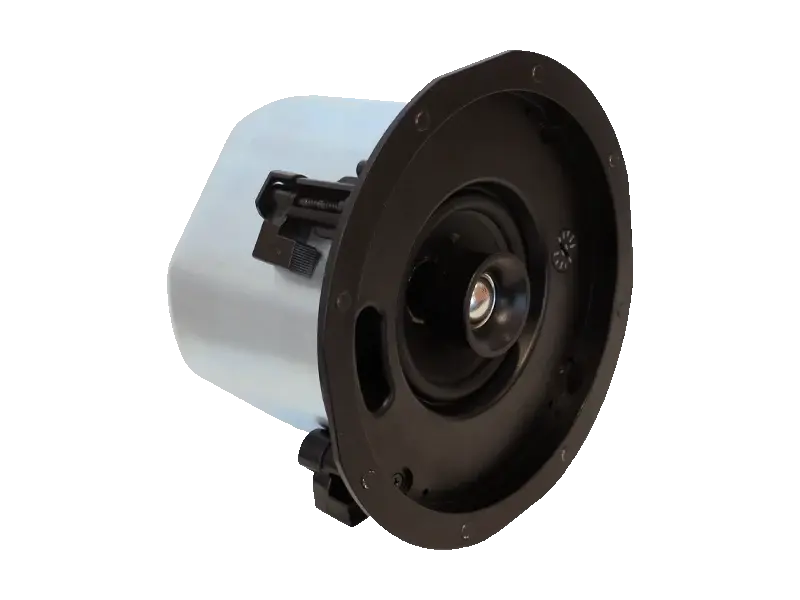

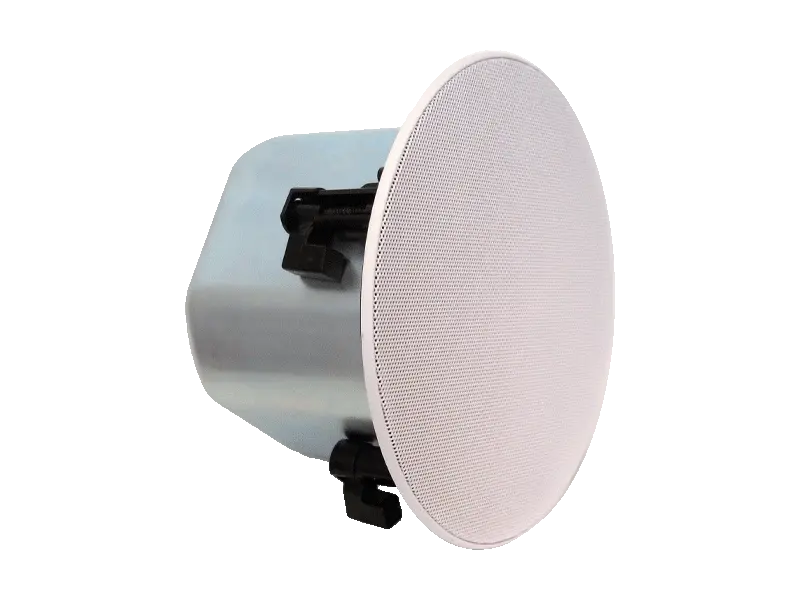

Australian Monitor QF20CS Ceiling Speaker 4" & 20mm coaxial driver 20 Watts 100V

When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations. This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction. The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation. Porting through the front baffle improves bass response and ensures detailed bass definition. The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.

If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

Features

• 4 inch & 20mm coaxial high powered driver
• QuickFit white frameless powder coated steel grill
• Sealed steel back can

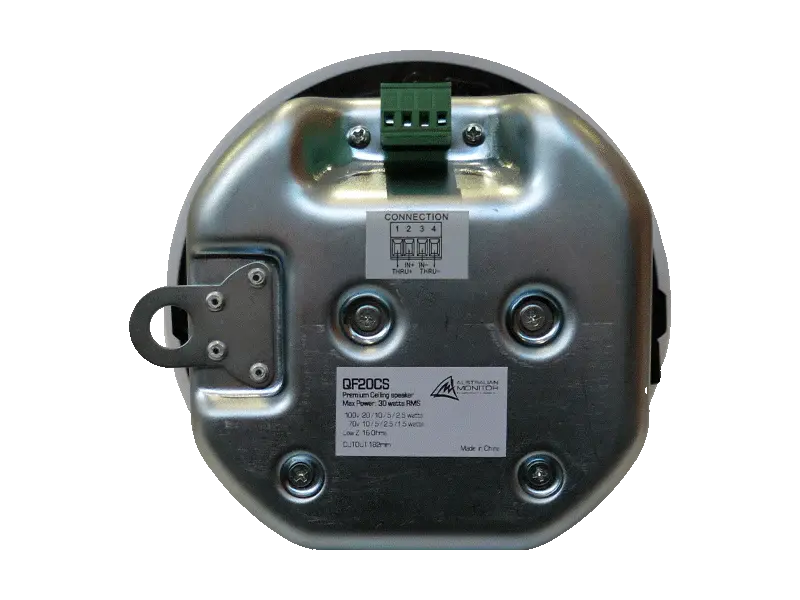

• 2.5, 5, 10, 20 watt taps @ 100V
• 30 Watts @ 16 Ohms
• Tile Bridge optional (QF20CSTB)

Specifications

Form Factor Ceiling Max Continuous Power 30W
Tappings 20W-10W-5W-2.5W-1.75W Max Program Power 60W
IP Rating No Max Peak Power 90W
EASE Model Yes SPL 1W/1m 89dB
Powered Passive Max SPL RMS 102dB
Driver Diameter 4.5" & 20mm Max SPL Peak 108dB
Colour White Frequency Response (-3dB) 110Hz - 20kHz
Warranty 5 years Dispersion 130deg
Product Dimensions
(W x D x H)
218mm x 125mm Shipping Dimensions
(W x D x H)
248mm x 244mm x 115mm
Net Weight 2.15 Kg Shipping Weight 3.5 Kg
