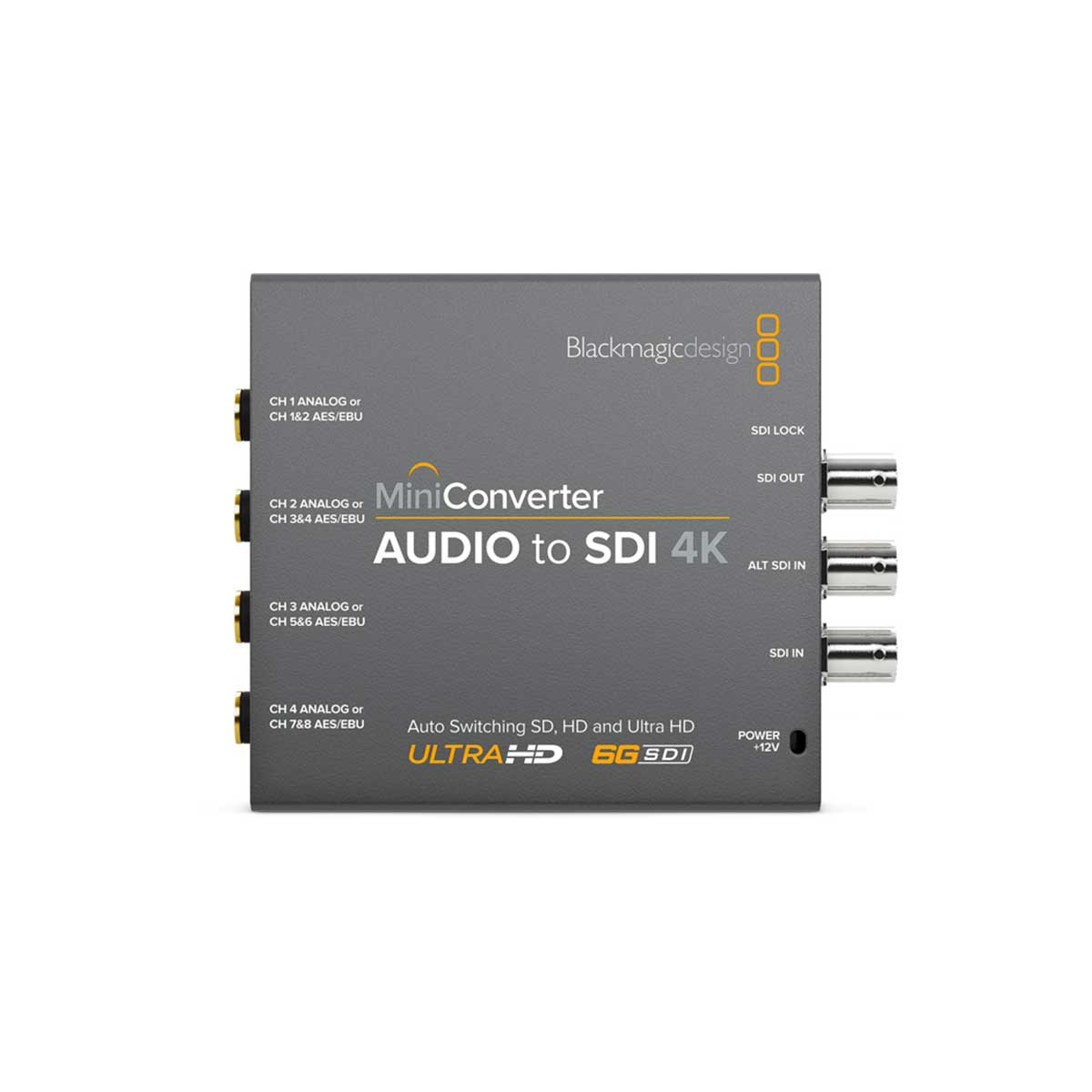

Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
1 x Embedded SDI Output.
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
8 channels of professional balanced digital with standard 1/4 inch jack connections.
Automatically switches over if main SDI input is lost.
Auto detection SD, HD or 6G‑SDI.
Via USB 2.0 high speed. (480 Mb/s)
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between standard definition and high definition.
4:2:2, 4:4:4
Television standard sample rate of 48kHz and 24‑bit.
4:2:2, 4:4:4
YUV, RGB
Automatically selects between SD, HD, 3G and 6G‑SDI.
Mac™ and Windows™ software upgrade via USB.
Via included updater application.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Mini Switches or USB software.
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
8.40 Watts
12 ‑ 31V DC
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
Mini Converter Audio to SDI 4K
12V universal power supply with international socket adapters
3 Year Limited Manufacturer’s Warranty.
