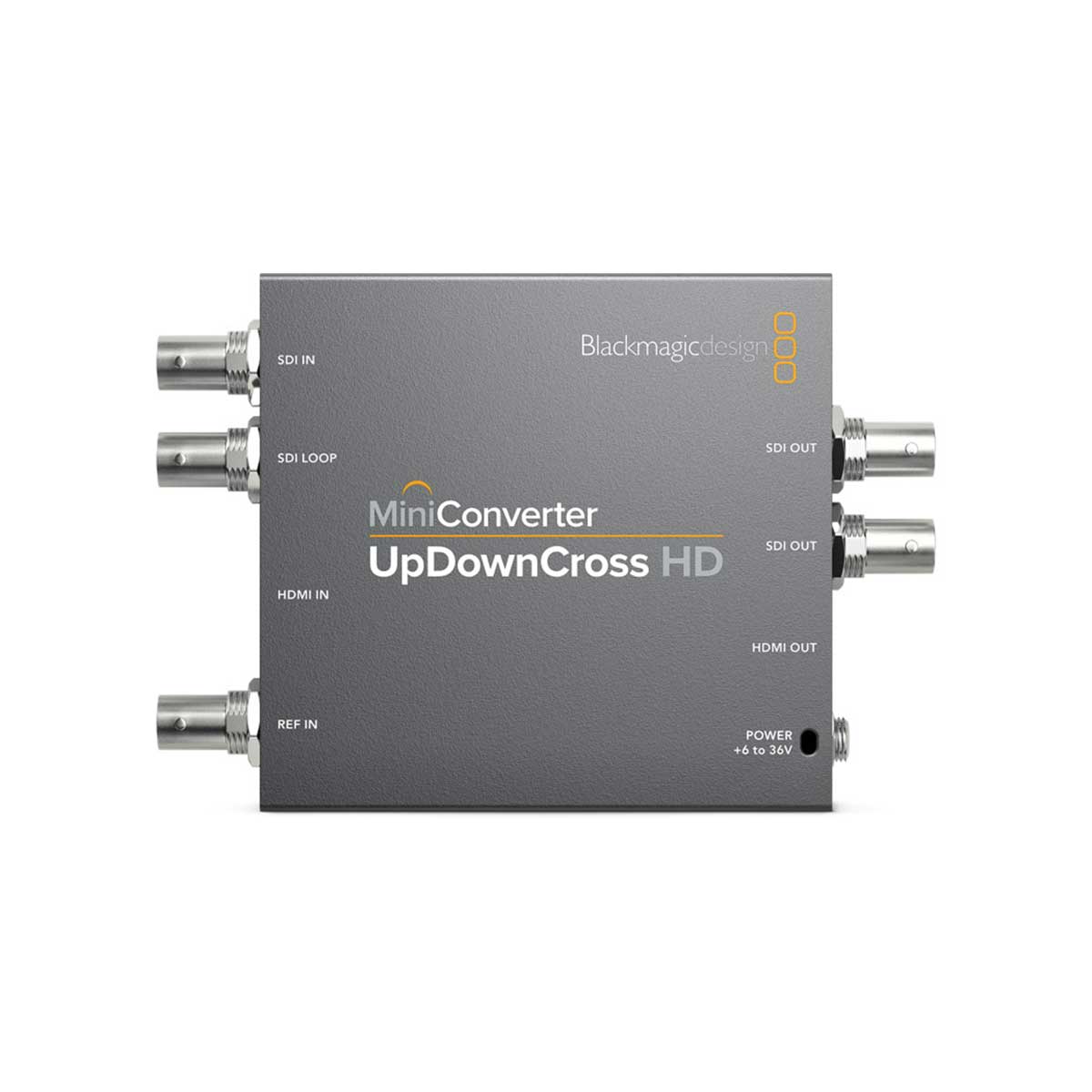

Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs, along with reference input for built in re‑sync, high quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power supply and more!
1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input.
1 x HDMI type A connector.
1 x loop out and 2 x outputs
HDMI type A out. Output supports EDID of the monitor.
270Mb, 1.5G, 3G.
Black burst and Tri‑Sync for SD & HD.
Auto detection of HD or standard definition SDI inputs.
USB
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
Timecode and closed captioning.
4:2:2
Television standard sample rate of 48 kHz and 24 bit.
4:2:2
YUV
Automatically detects SD, HD or 3G‑SDI.
Convert any SD and HD input to "720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60"
Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Via included updater application.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Mini Switches
+12V universal power supply included with international socket adapters for most countries.
5W
6 to 36 Vdc.
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
Mini Converter UpDownCross HD
12V universal power supply with international socket adapters
3 Year Limited Manufacturer’s Warranty.
