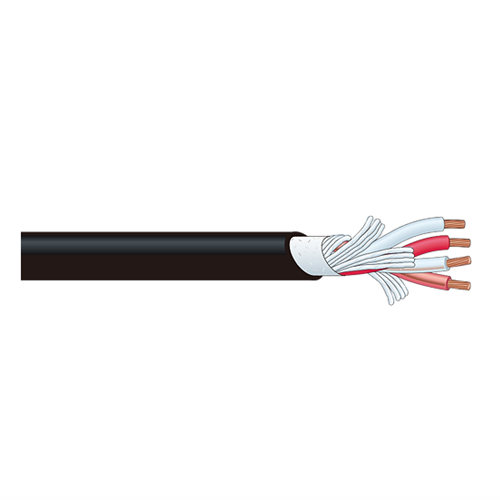

Name: Canare 4S8 SPEAKER CABLE BLACK, 400M
Brand: Canare
SKU: CA-4S8-BK400
Price: 1799.0 AUD
Availability: InStock

Key Features:

Applications:

MECHANICAL SPECIFICATIONS
Model	Std. Lng. ft. (m)	Wt Std. Lng. lbs (kgs)	Nom. O.D. in. (mm)	PVC Jacket Nom. Thick. in. (mm)	Brittle Point F° (C°)	No. of Cond.	Insul. Type* Thick mil	Cond-AWG (Qty./mil) Cross Sec. Area mil.² Twin Cond. AWG**	Pitch of Quad in. (mm)	Shield Cover- age
4S8	328 (100) 656 (200)	42 (19)	.327 (8.3)	.043 (1.1)	-56 (-49)	4 RED CLR RED WHT CLR WHT	PE 19.7	AC-#16 (50/7.09) 1969 #13	<2.76 <70	-

*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

ELECTRICAL PERFORMANCE/QUAD WIRED
Model	Cond. D.C.R. ohm/1000ft (ohm/100m)	Shield D.C.R. ohm/1000ft (ohm/100m)	Nom. Cap. *** pF/m	Nom. Cap. † pF/m	Nom. Imp. ohm	Nom. Atten. V/1000ft (V/100m)	Group Delay Time nS/ft (nS/m)
4S8	4.5 (1.5)	-	145	-	-	-	-

***Capacitance between twin Red and twin White conductors.
†Capacitance between conductors to shield.

[+]=Standard Color, [o]=Available Color, ""=n/a
