? SMPTE 424M & 292M Compliant.
? Serial Digital Video.
? HDTV Upgrades.
? NTSC Analog.
? Test Equipment.
? Satellite Headends.
? TELCOM.
? True 75 ohm construction Crimp Pin & Sleeve.
? High performance of 1.1 or less VSWR up to 3GHz.
? Elongated Body for better finger grip.
? Position mark on body allows the connector fit to be checked easily.
? Superior cable pull strength.
? Gold plated center pins 'snap' into place.
? Connector Body has been die-cast, achieving a lower price with higher performance.
? Easy Assembly using Canare Strip & Crimp Tools.

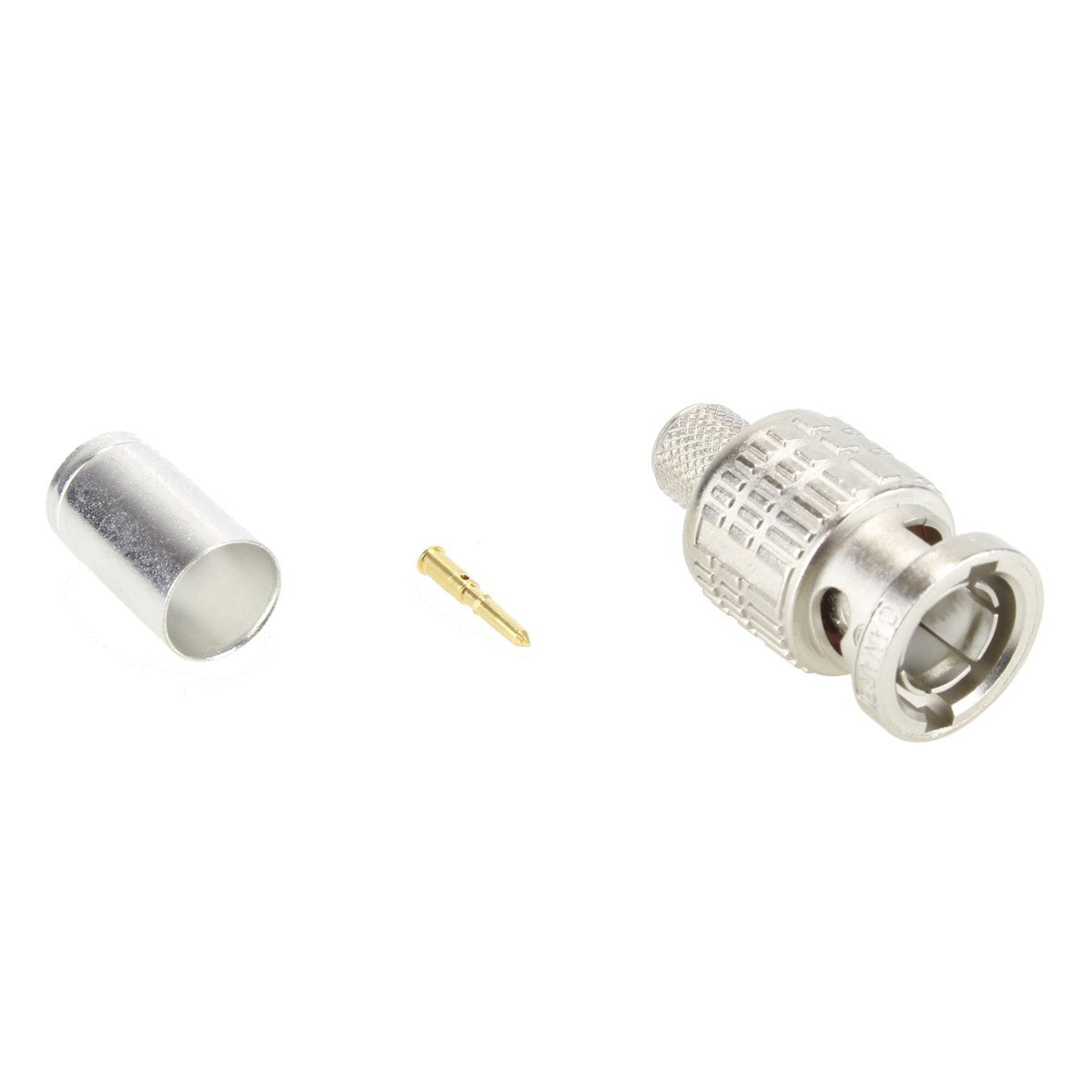

75 ohm BNC Connector, Straight Plug
| Product Listings |
| Model |
Cable |
Boot |
Crimp Die |
Crimp Pin |
Sleeve |
| BCP-B25HD |
L-2.5CHD |
CB02 |
TCD-35CA |
B11015E |
BN7129 |
| BCP-B26 |
1855A |
CB02 |
TCD-35CA |
B11014E |
BN7029C |
| BCP-B25HW |
L-2.5CHWS |
CB02 |
TCD-35CA |
B11015E |
BN7143 |
| BCP-B3F |
L-3CFB |
CB03 |
TCD-35CA |
B11015E |
BN7003A |
| BCP-B31F |
L-3CFW |
CB04 |
TCD-4C
TCD-451CA |
B11015E |
BN7015A |
| BCP-B4F |
L-4CHD
L-4CFB
1505A |
CB04 |
TCD-4C
TCD-451CA |
B11016E |
BN7015A |
| BCP-B45HW |
L-4.5CHWS
1694F |
CB05A |
TCD-35CA |
B11020D |
BN7016 |
| BCP-B53 |
L-4.5CHD
1694A |
CB05A |
TCD-35CA |
B11020D |
BN7046 |
| BCP-B5F |
L-5CFB |
CB05A |
TCD-5CF |
B11020D |
B75004A |
| BCP-B51F |
L-5CFW |
CB05A |
TCD-5CF |
B11020D |
B75004A |
| Specifications |
| Items |
BCP-B Series |
|
Return Loss (0-3GHz)
|
26dB or greater
|
|
Pull Strength
|
BCP-B53: 245N
for
L-4.5CHD, 1694A
|
|
Coupling Sleeve
|
Zinc Alloy Die Casting
|
|
Center Pin
|
Gold Plating
|
|
Weight
|
BCP-B53:
approx. 12.5g
|
