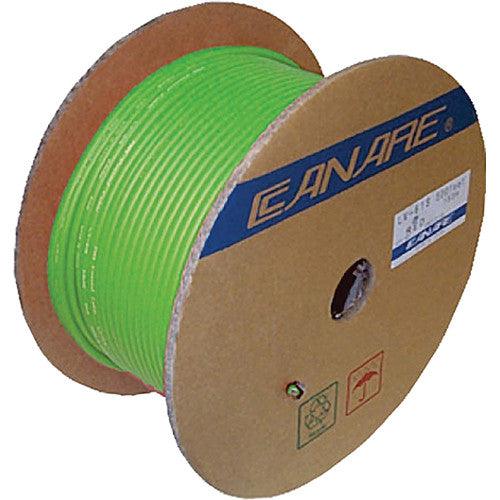

Canare LV-61S Cable Video Coax 75-Ohm Green 153m


1 item left

75 OHM VIDEO COAXIAL CABLE (LV-61S)

Canare’s No.1 Selling Coax. A lightweight, very flexible RG59B/U equivalent that is perfect for all video facility equipment interfacing, ENG/OB work and video patch cord assemblies. Our smooth non-glare finish PVC jackets are available in 10 distinctive colors (including Chroma-Key Blue!) and will stay flexible even in sub-zero weather!

  • Broadcast Transmission.
  • Analog and Digital.
  • ENG/EFP.
  • Inter-Rack Wiring.
  • Video Patch Cords.
  • Flexible Center Conductor: Stranded Bare Copper.
  • Dielectric strips away clean from Conductor.
  • Tightly Woven Braid Shield.
  • Stays Flexible even in Subzero Weather.
  • Available in 10 Colors.

Model LV-61S
Std. Lng. 153m
Wt. Std. Lng 8.6kgs
Nominal O.D. 6.1mm
PVC Jacket Thickness 1.0mm
Brittle Point -30C°
Cond.-AWG
(Qty./mil.)
AC-#24
(7/7.88)
Cond. O.D. 0.6mm
Dielectric Insulation Type* PE
Insulation O.D. in. 3.6mm
Shield Material Coverage AC Braid
>95%
Cond. D.C.R.  <8.5 (ohm/100m)
Shield D.C.R. <1.3 (ohm/100m)
Nom. Cap. @1KHz 67 (pF/m)
Nom. Imp. 75 ohm
Nom. Attn. @10MHz 4.2 (dB/100m)
Velocity of Prop. 66%


*Dielectric Strength = 1000V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
