Exceptional audio quality
Uniform, consistent sound between DPA mics
Extremely rugged and reliable

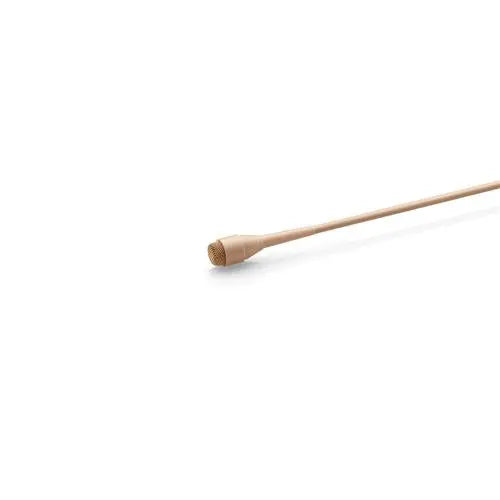

Diminutive size made for flexible and easy concealment
Large selection of clips, windscreens, grids and other accessories
Modular adapter system fits most professional wireless systems
| Directional pattern: | Omnidirectional |
| Principle of operation: | Pressure |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz – 20 kHz |
| Frequency range, ± 2 dB: | Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz: | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level A-weighted: | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equiv. noise level ITU-R BS.468-4: | Typ. 38 dB (max. 40 dB) |
| S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): | 68 dB(A) |
| Total harmonic distortion (THD) – Legacy: | < 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine |
| Total harmonic distortion (THD) – CORE: | < 1% THD up to 137 dB SPL peak |
| Dynamic range – Legacy: | Typ. 97 dB |
| Dynamic range – CORE: | Typ. 111 dB |
| Max. SPL, peak before clipping: | 144 dB |
| Output impedance: | 30 – 40 ohm |
| Cable drive capability: | Up to 300 m (984 ft) |
| Power supply: | For wireless For wireless systems: Min. 5 V – max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance. |
| Current consumtion: | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter. |
| Connector: | MicroDot |
| Colour: | Black, beige, brown or white |
| Weight: | 7.5 g (0.26 oz) incl. Cable and MicroDot connector |
| Microphone diameter: | 5.4 mm (0.21 in) |
| Microphone length: | 12.7 mm (0.5 in) |
| Cable length: | 1.8 m (5.9 ft) |
| Polarity: | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up t 90% |
