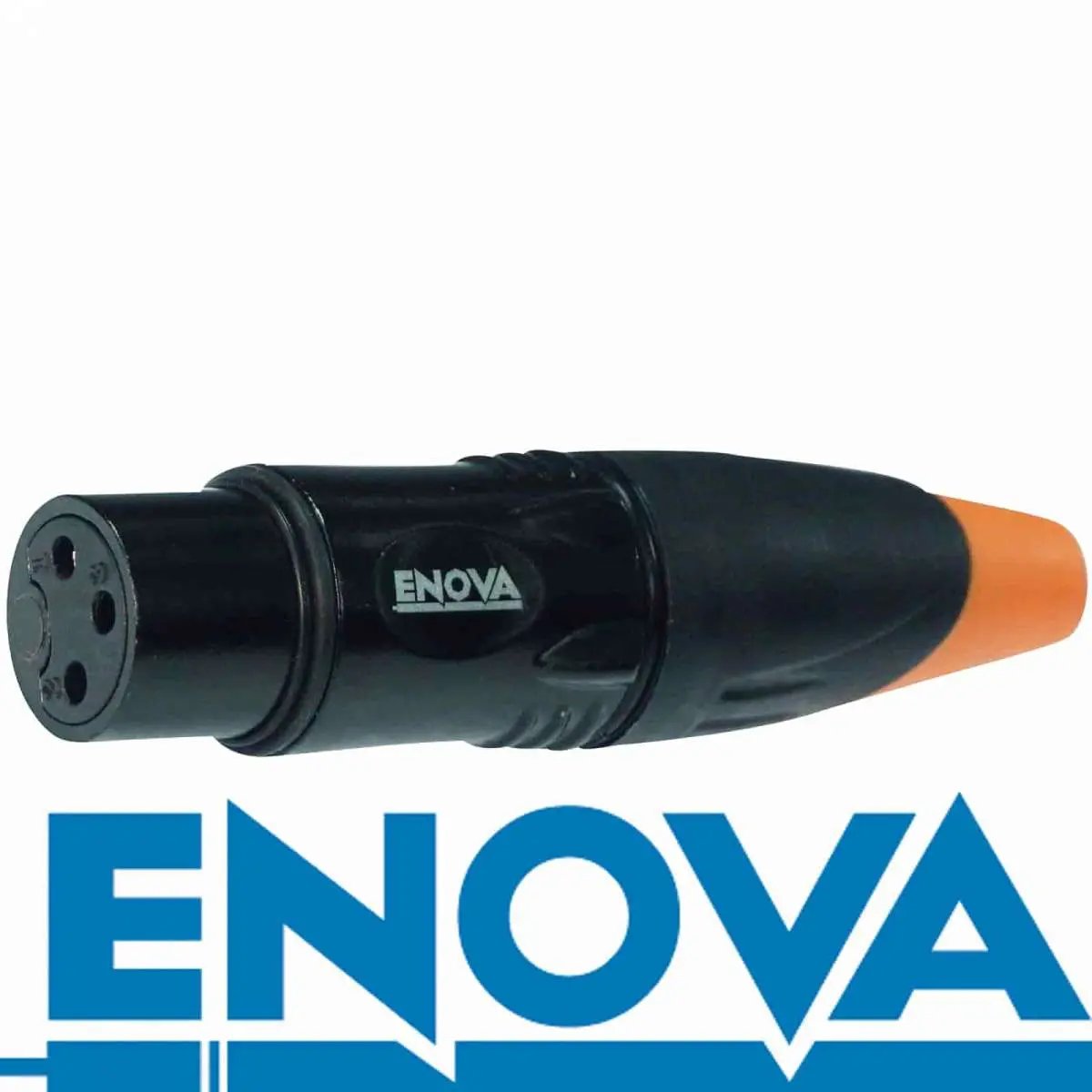

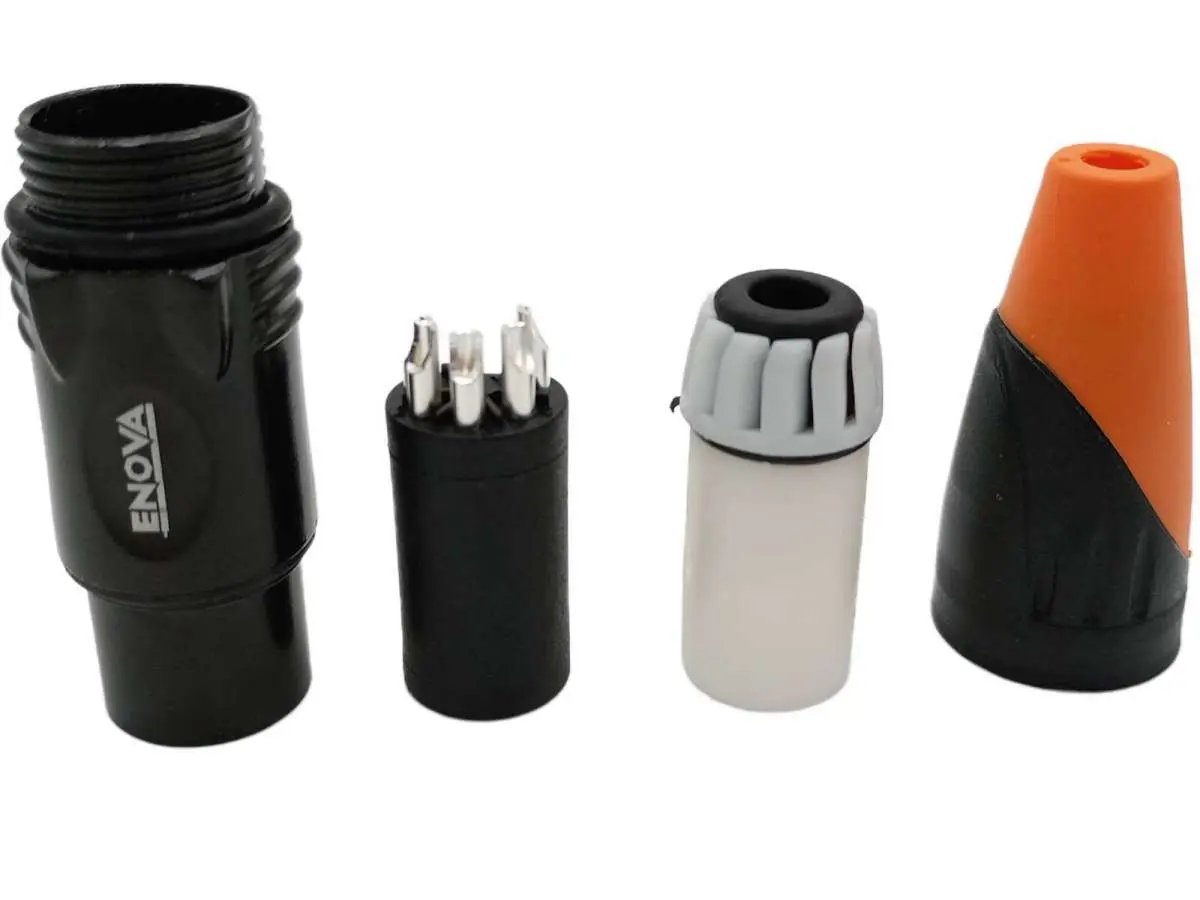

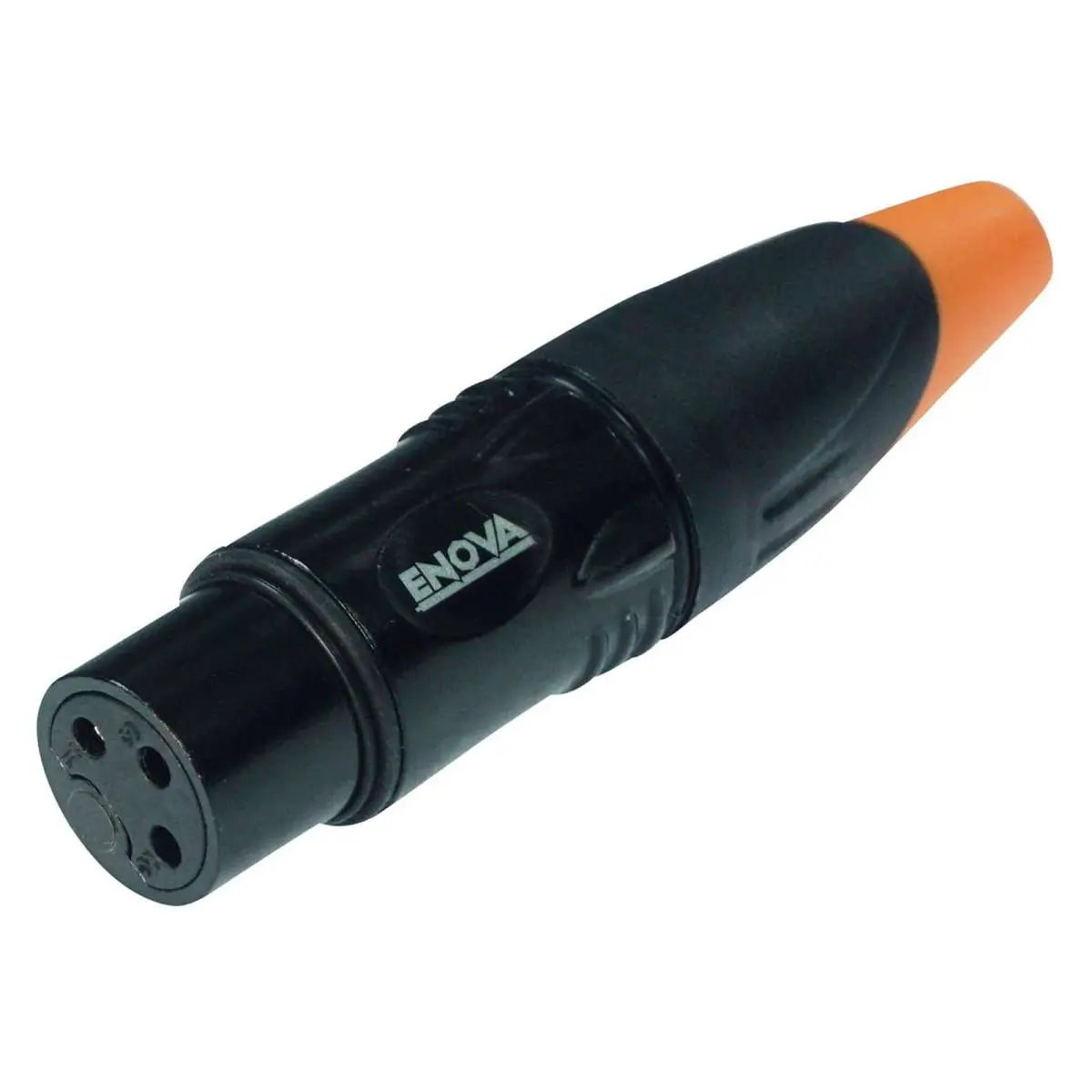

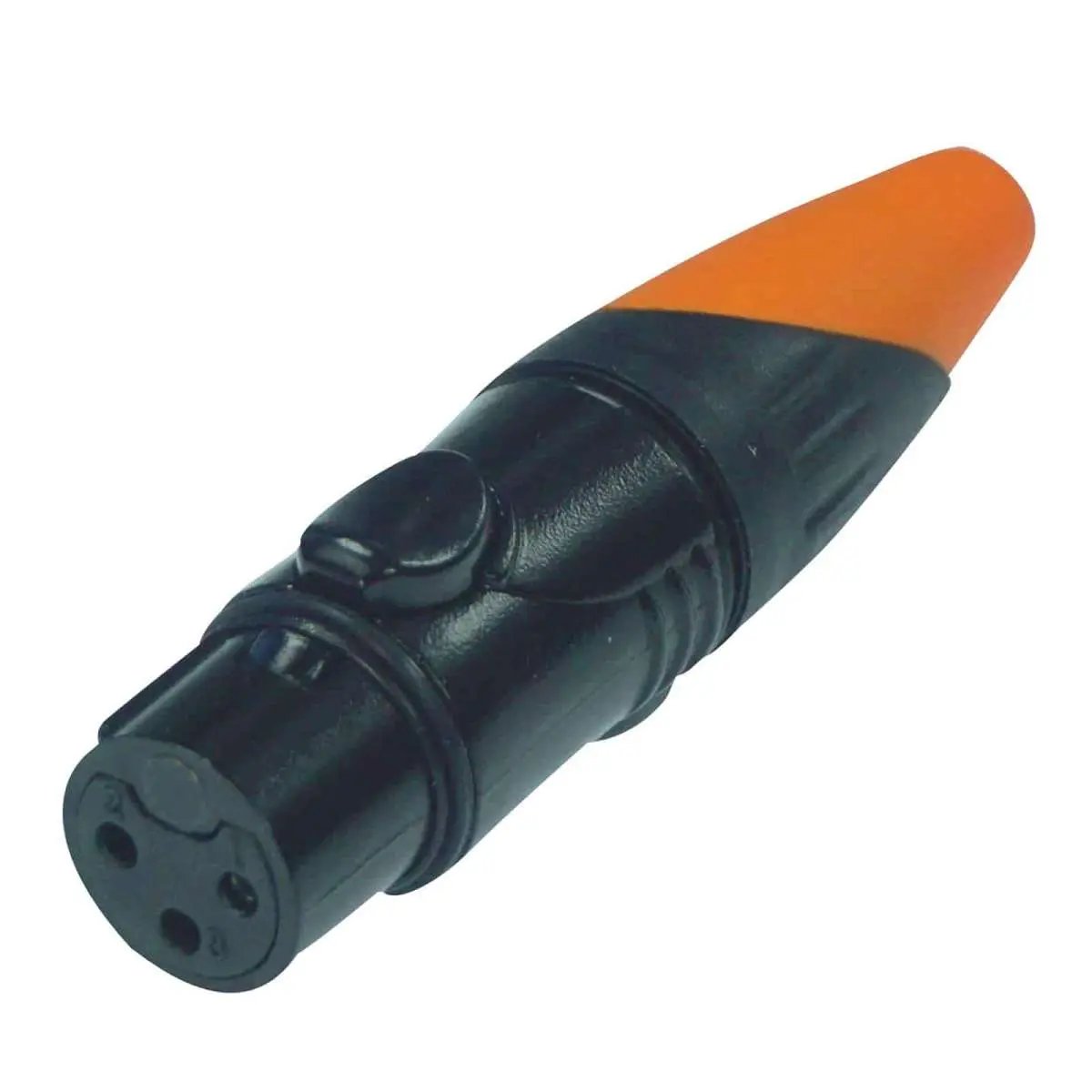

Enova XL23FB-W XLR cable connector female 3-pin IP65 black housing and orange boot solder cups


XLR cable connector female 3-pin IP65 black housing and orange boot solder cups

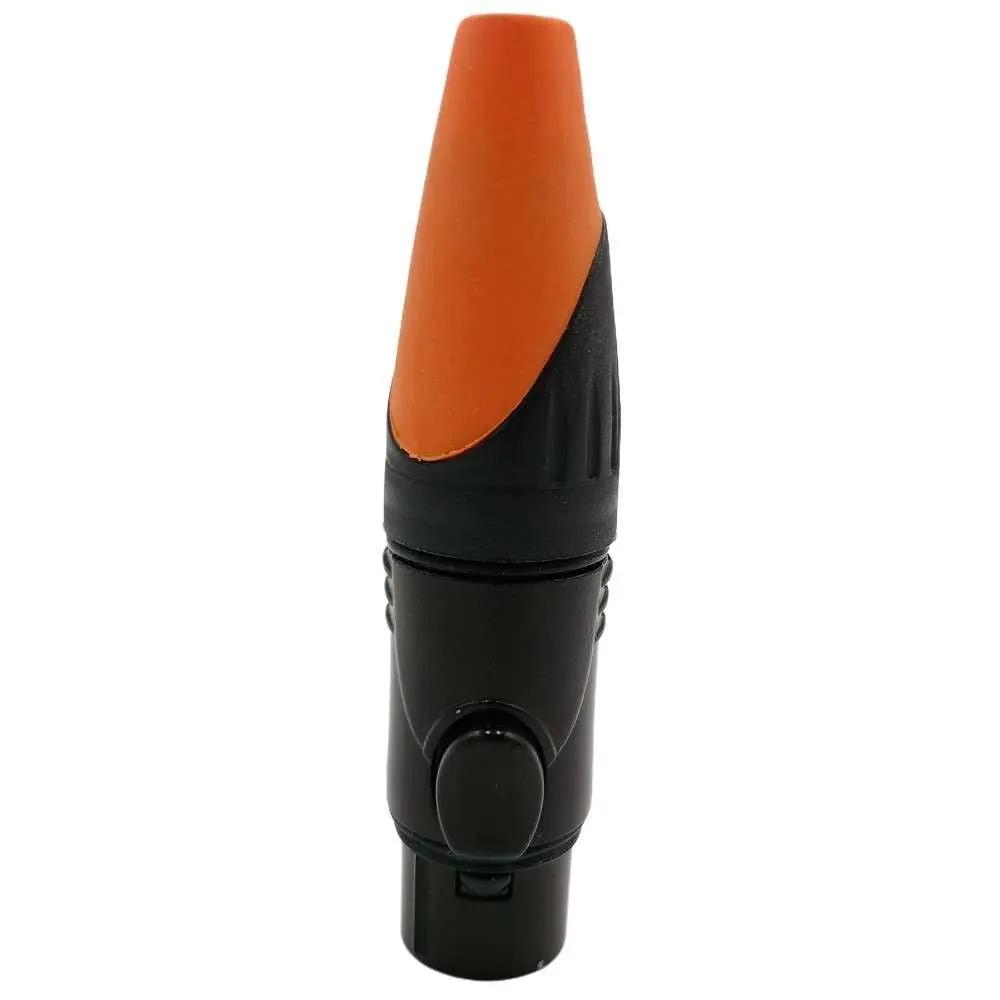

XLR cable socket 3-pin. IP65 protection when plugged in with the matching cable plug XL23MB-W or the plug XL13MB-W. A handy shape and a well-formed and robust button make for a better user experience.

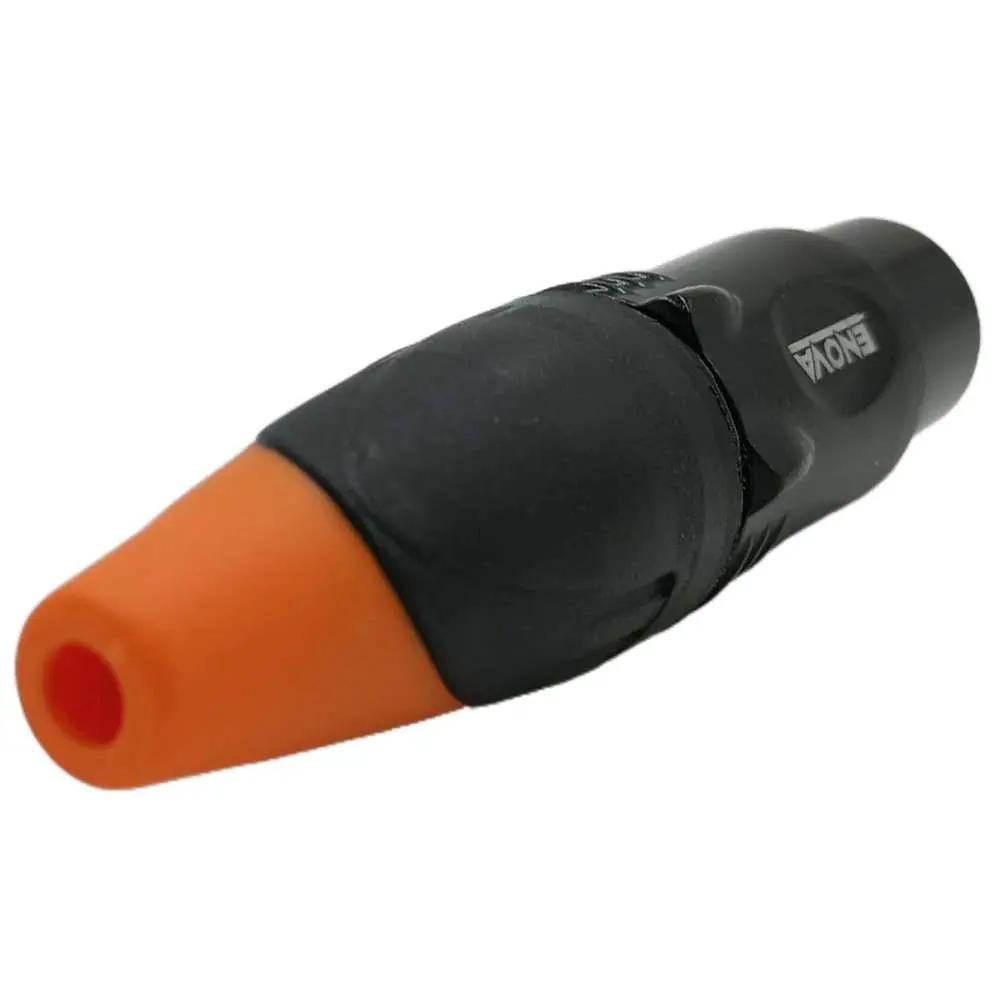

The rear nozzle is liquid and dustproof.

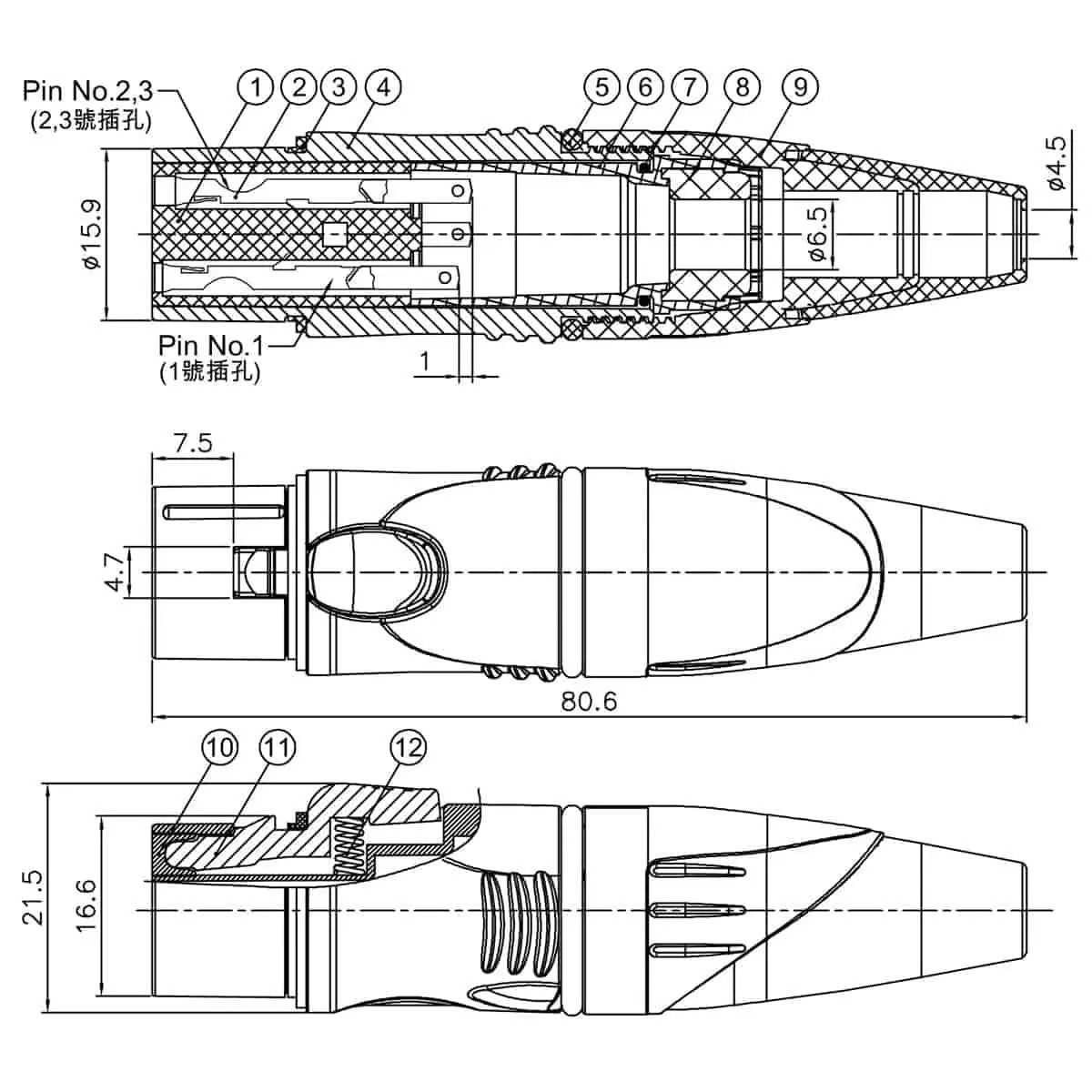

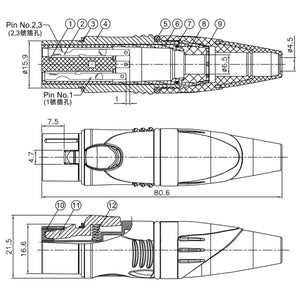

Length: 80 mm
Width: 22 mm
Height: 22 mm

Brand: ENOVA
Series: XLIP-Serie
Version (Plug / Chassis): Cable Version

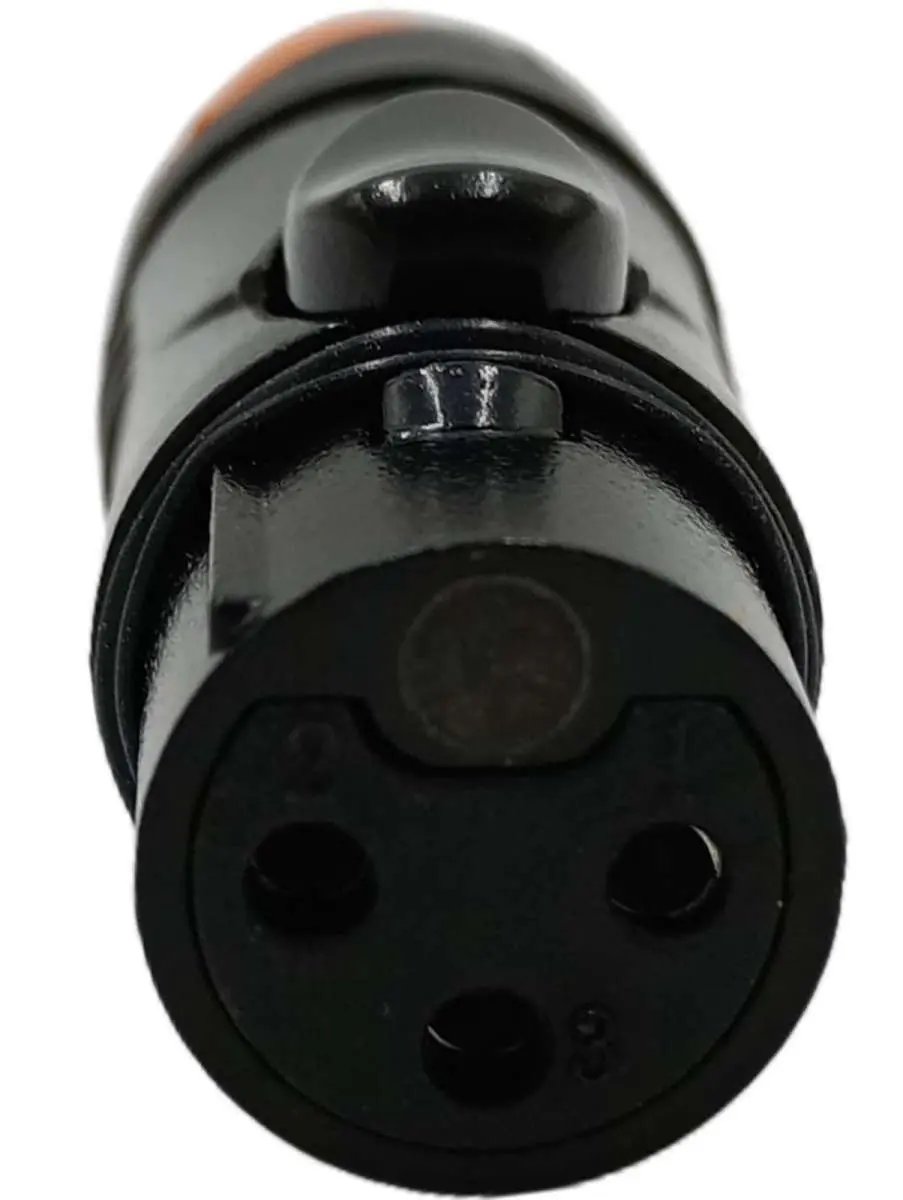

Connector type: XLR, XLR female 3 pol
Number of contacts: 3

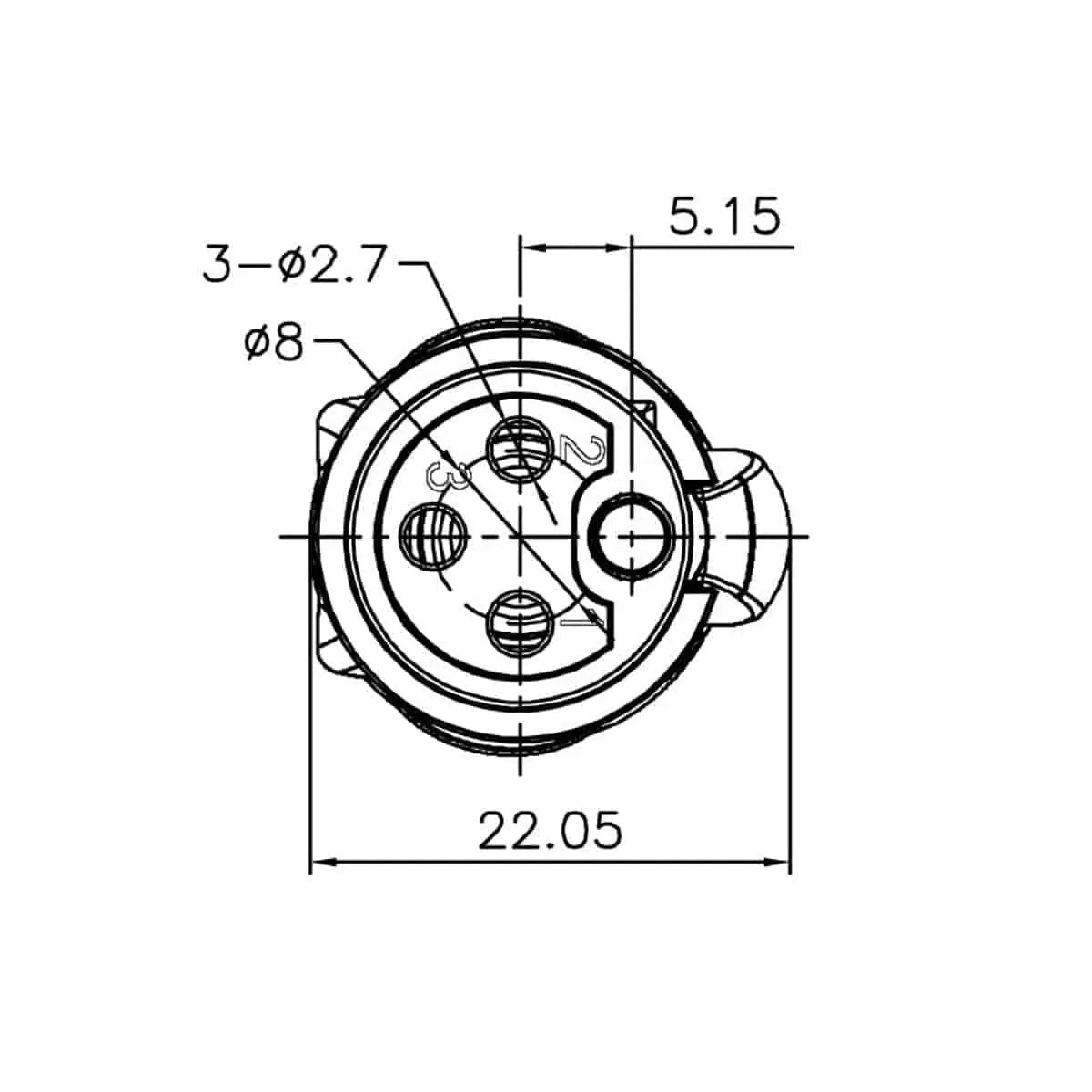

Contact diameter in mm: 3 x Ø 2.70 mm
Gender (M / F): Female connector
Connector housing color: Black
Cable diameter min. in mm: Ø 3.3 mm, Ø 5.5 mm
Cable diameter max. in mm: Ø 6 mm, Ø 7 mm
Wiring mode: Solder contact
Insulation component: High performance plastics
Material connector housing: ZZNAL4-1
Material contact: Phosphor Bronze
Waterproof component: NBR
Working temperature minimum: -30°
Plug cycle: 1000
IP protection class according to EN60529 2000: IP65
ROHS according to EN62321-1: Yes
Country of origin: China
Operating voltage (VAC.RMS): < 50 V
Insulation resistance: > 10 GΩ
Contact resistance: ≤ 3 mΩ
Applications: DJ, Keyboard player, Lighting technician, Singer, Sound engineer
Markets: Event Production, LED interior / exterior lighting, Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Multimedia installation, Digital signage, Cable Assembly, Lighting, LED exterior display, Broadcast, Recording studio
