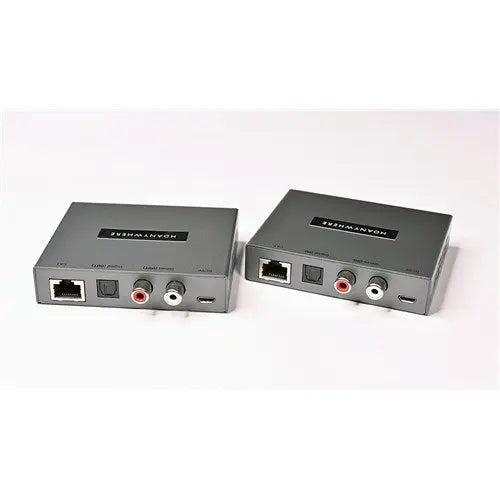

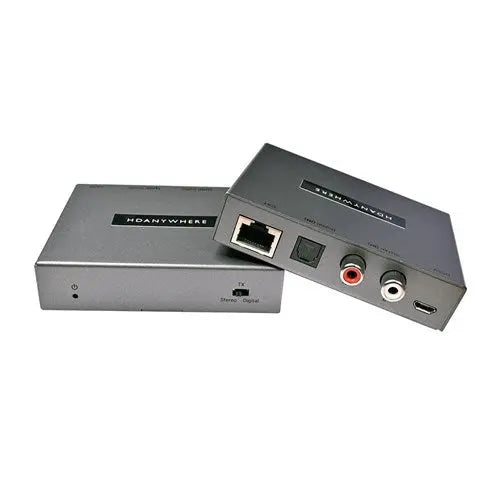

XTND AUDIO (300)

Audio extender capable of increasing range of either stereo or digital audio up to 300m (984ft).

FEATURES

• Extend digital and analogue audio signals up to a maximum distance of 300m / 984ft over single Cat 5e/6 cable
• Distances supported: 100m / 328ft @ 192KHz, 150m / 492ft @ 96KHz, 300m / 984ft @ 48KHz
• Bi-directional Power over Cable (PoC)
• Digital audio support including: PCM 2.0, LPCM, DTS, Dolby Digital, Dolby Digital Plus
• 32KHz, 44.1KHz, 48KHz, 96KHz, 176.4KHz, 192KHz @ 24-bit
• Ultra-low jitter
• Plug-and-Play design

SPECIFICATION

• TX / RX form factor    Slender Steel enclosure
• Inputs / outputs    x1 Optical, x1 Stereo RCA (L/R) / x1 Optical, x1 Stereo RCA (L/R)
• Transmission tech.    NA
• Device / Package weight    174g (TX and RX) / 900g
• Dimensions (W/D/H)    90 / 72 / 20mm (TX and RX)
• Power    DC 5V 1A (US/EU standards, CE/FCC/UL certified)
• Operating temperature    0°C - 40°C / 32°F - 104°F
• Storage temperature    --20°C - 60°C / -4°F - 140°F
• Relative humidity    20 - 90% (Non-condensing)
• Power consumption    1.5W (Maximum)
