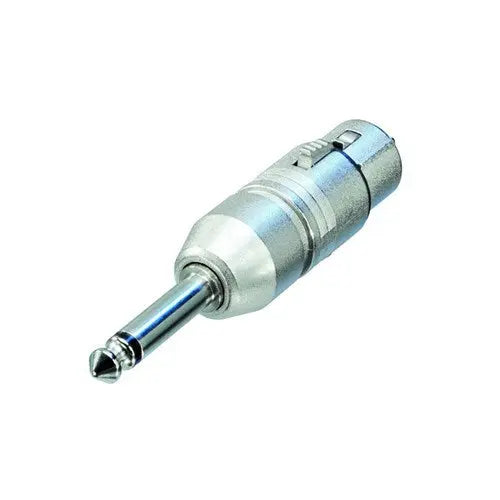

NA2FP

3 pole XLR female – Mono 1/4" plug (tip, sleeve contact)

Wired according to IEC 268-12:
Pin 2: signal
Pin 1 and 3: connected to ground

Features & Benefits

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
• Rugged diecast shell for best reliability.

• NA2FP

Connection Type

• Adapter

Electrical

Contact resistance

• ≤ 3 mΩ (XLR)

Contact resistance

• ≤ 6 mΩ

Dielectric strength

• 1.5 kV dc / > 1 kVdc (XLR/Plug)

Insulation resistance

• > 2 GΩ

Wiring

• according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground

Locking device

• Latch lock

Material

Contact plating

• 2 µm Ag over 2 µm Ni

Contacts

• Brass (CuZn39Pb3) (plug)

Insert

• Polyamide (PA 6.6 30 % GR)

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• gal Cu/Ni

Environmental

Temperature range

• -20 °C to +65 °C
