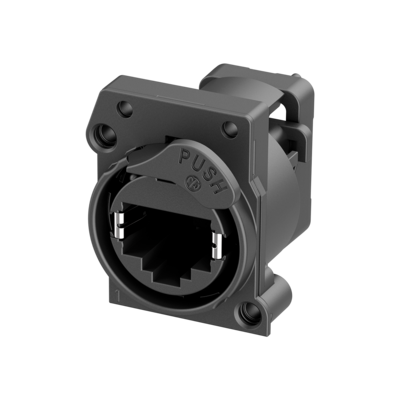

Neutrik NE8FAV-C5-DAE Vertical PCB mount RJ45 receptacle CAT5e A series (Pack of 100)

New: With ESD protective push tab improving electrostatic discharge and component protection. Furthermore, the asymmetric design offers more space for labeling purposes.

Vertical PCB mount RJ45 receptacle, CAT5e, A-Series cutout with latch lock, max. panel thickness 3 mm

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all plastic A-Series offers the most space saving and cost effective design.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

• New ESD push tab material for improved electrostatic discharge and component protection
• Approved latch lock system
• Asymmetric tab design offers more space for labeling
• Accommodates rugged etherCON NE8MX* or any standard RJ45 plug
• Most space saving and cost effective design
• Isolated to panel ground
• PoE+ compliant according to 802.3at Type2
• CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
• Vertical PCB design at 24 mm distance to front panel – fits the widely accepted industry standard dimension for XLRs, 1/4" jacks etc.
• Compound material of push tab improves ESD protection
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt
