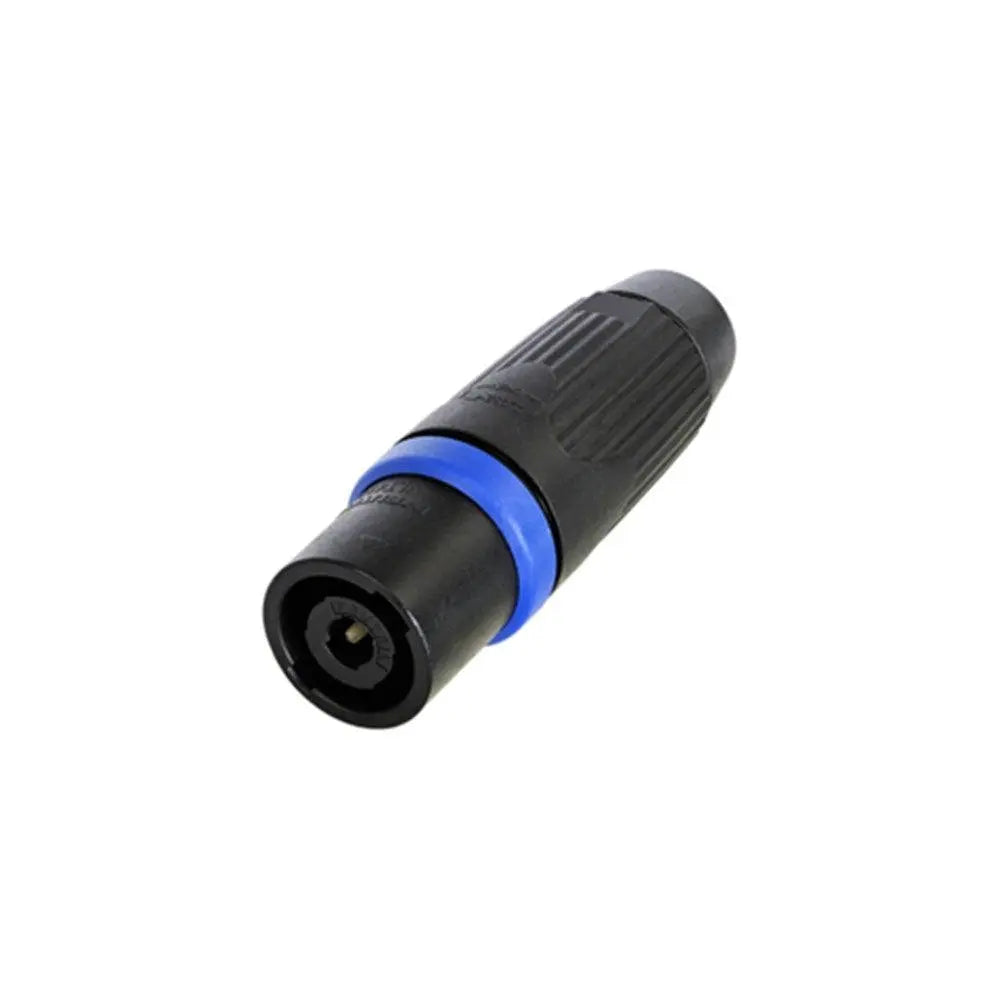

Neutrik NLT4MXX-BAG speakON 4 pole chassis


5 items left

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features & Benefits

  • IEC 61984 certified, IEC 62368-1 compliant
  • Uses precise “Quick Lock” system
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Extra large solder contacts for up to 6 mm² (AWG 10) wires
Mechanical
Cable O.D. 9 - 16 mm
Lifetime > 5000 mating cycles
Wiresize 6 mm²
Wiresize 10 AWG
Termination Solder contacts
Locking device Quick Lock
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, black chrome plated
Insert Polyamide (PA 66)
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 54 (mated condition)
Solderability Complies with IEC68-2-20
