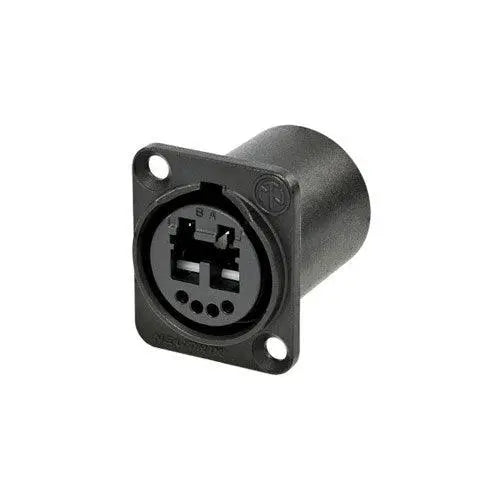

Neutrik NO2-4FDW-A opticalCON DUO chassis connector

Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

FEATURES & BENEFITS

  • Suggested OEM equipment connector due to LC front compatibility
  • Shutter with silicone gasket protects optical connection from dust and dirt
  • Connection on the front side either by rugged opticalCON or standard LC connector
  • IP65 ingress protection in mated condition with SCDP-*
  • Designed as feedthrough with automatic sealing shutter
  • Accommodates standard LC connectors on the rear for simple installation
  • The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
  • Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:

Technical Information

Product
Title NO2-4FDW-A
Gender female
Electrical
Contact resistance < 7 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact 6 A
Rated voltage < 50 V (1)
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime > 5000 mating cycles
Locking force 1000 N
Wiresize
Locking device Push-Pull
Mounting direction Front mounting
Chassis shape D
Material
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Split sleeve ceramics
Environmental
Flammability UL 94 V-0
Temperature range -40 °C to +75 °C
Optical
Optical connector LC-Duplex Feedthrough
