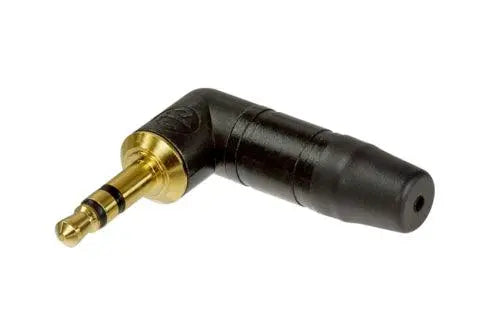

Neutrik NTP3RC-B Right Angle Stereo Mini Jack Plug Black/Gold

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, black housing, gold contacts

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

Features & Benefits

  • All metal housing - robust and reliable
  • Chuck type cable clamp and rubber gland - excellent cable protection
  • Slim design - space saving

Technical Information

Product
Title NTP3RC-B
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated voltage <50 V
Mechanical
Cable O.D. 2 - 4.5 mm
Wiresize 0,22 mm²
Wiresize 24 AWG
Wiring Solder contacts
Material
Bushing Brass (CuZn39Pb3) + PU, black Cr
Contact plating 0.2 µm Au
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 15 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM)
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
