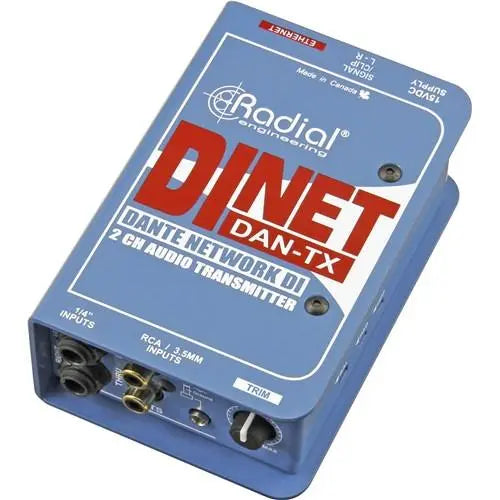

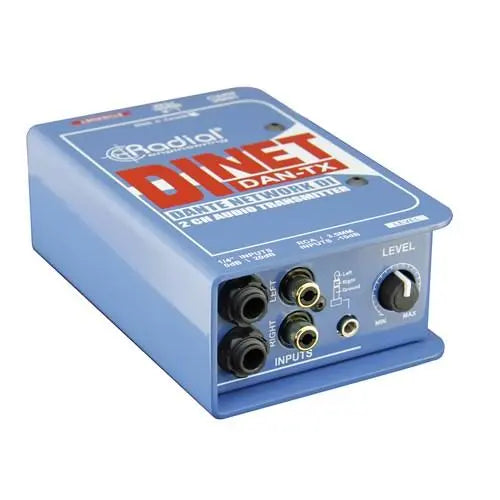

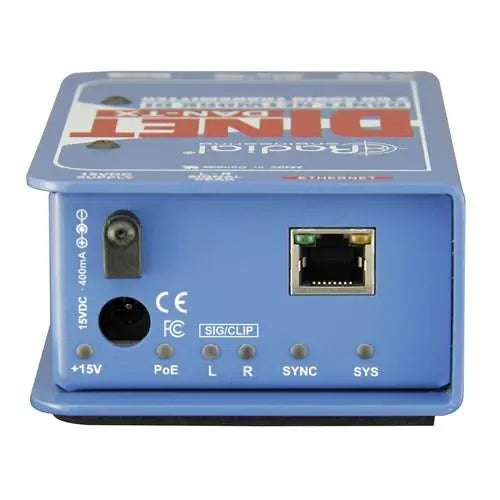

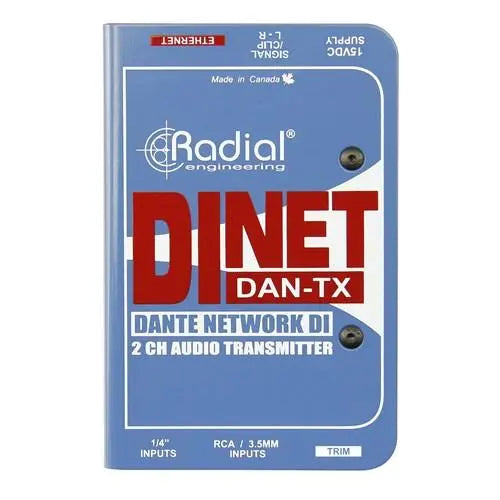

Radial Engineering DiNet Dan-TX. Dante network Interface

• Stereo analog input device for Dante networks
• Connect instruments or line level sources

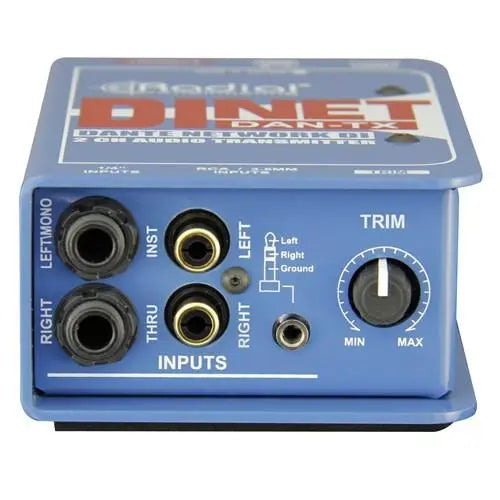

• ¼”, RCA and 3.5mm stereo TRS inputs
• 24bit/96kHz analog to digital conversion

MORE WAYS THAN EVER TO CONNECT OVER DANTE

Need to connect a smartphone, tablet, or any playback device to a Dante network? How about an electric guitar, while still feeding an amp on stage? The DAN-TX can do it all. In fact, with signal handling of up to +24dB, you can connect the line level outputs of a mixing console to the DAN-TX without breaking a sweat. A local level control allows you to adjust as needed, and a number of input connector types ensures you won’t be digging around for an adaptor cable at a critical moment. No matter what source you’re using, the DAN-TX is the easiest way to get your analog audio onto a Dante network.

DINET DAN-TX APPLICATIONS

USING THE DAN-TX FOR MONO INSTRUMENTS

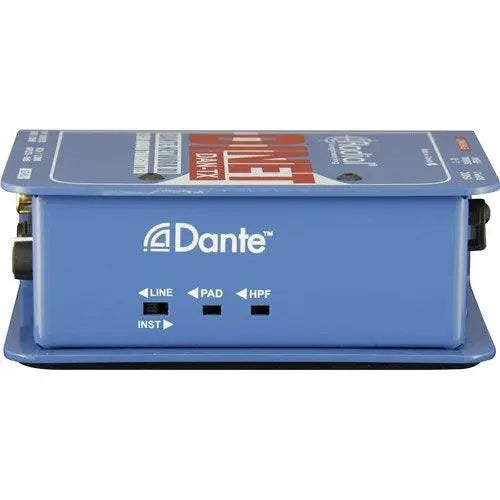

Switching to instrument mode changes the Right ¼" connector to a Thru-put for connection to a local amplifier. Now your instrument can be routed anywhere on Dante network while still allowing for local monitoring through the stage amplifier.

USING THE DAN-TX FOR STEREO INSTRUMENTS OR MULTI-MEDIA

Plug in your stereo keyboards, synths, laptops, tablets or any other unbalanced consumer device and route through the Dante network without installing special software. Simply connect to the ¼", RCA or 3.5mm inputs.

USING THE DAN-TX FOR BALANCED PROFESSIONAL AUDIO

The DAN-TX features ¼” TRS jacks that allow for signal levels up to +24dBu. Any balanced analog mixer, recorder or playback source can be quickly connected to a Dante network.

USING THE DAN-TX TO EASILY CONNECT MOBILE DEVICES

The 3.5mm input on the DAN-TX makes it easy to connect smartphones, tablets, and other mobile devices and connect them to your Dante network without worrying about installing software or finding adapter cables.
