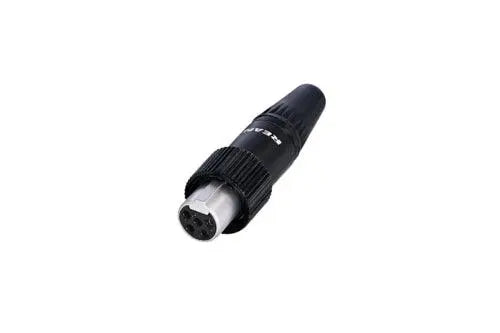

REAN RT5FCT-B TINY XLR 5 pin female cable connector black/gold water resistant boot

Technical Information

Product
Title RT5FCT-B
Connection Type XLR
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >1 GΩ
Dielectric Strength >500 V rms
Rated current per contact <5 A
Mechanical
Cable O.D. 2.0 - 4.5 mm
Lifetime >1000 Mating Cycles
Wiresize 0.22 mm²
Wiresize 24 AWG
Material
Housing Zinc
Nut Aluminum
Tube Aluminum
jack Bronze
Plastic housing PA6+30%GF
Rubber Ring Rubber
Locking Spring Steel
Ground Contact Bronze
Chuck POM
Boot PC/ABS+TPU
Housing Nickel Plating
Jack Gold Plating
Ground Contact Tin and Cer
Nut Black Plating
Tube Black Plating


Technical Drawing

Assembly Instructions
