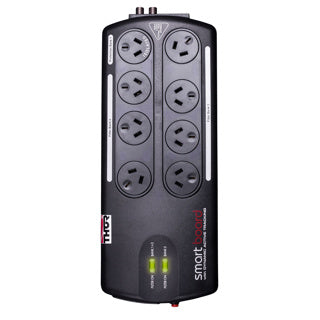

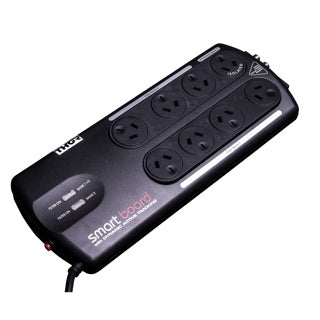

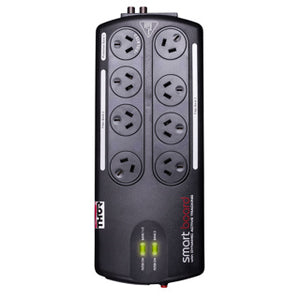

Thor A12BF Smart Board 8 - 8 Outlet Triple-Isolated Filtered Surge Protector

The Thor A12BF Smart Board 8 is Thor's step-up filtered power board. Three isolated banks and active tracking filtering separate digital gear, analogue gear and high-draw devices, which helps keep hum and noise out of your monitoring chain.

Features

• 8 protected outlets in three isolated banks (4 + 3 + 1), with 2 large plug adapters
• Dynamic Active Tracking filter: 38 protection components across 3 cascading circuits for EMI/RFI noise reduction
• Five separate earth lines to reduce hum and ground loops
• Protection on Active/Neutral, Active/Earth and Neutral/Earth
• Earth potential rise protection

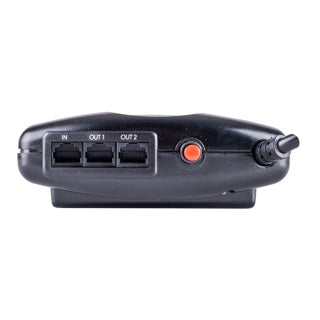

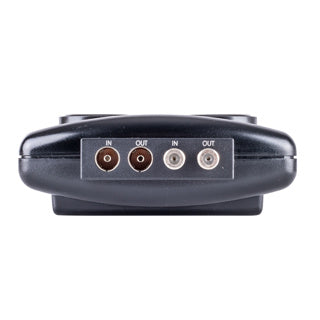

• RJ45 data/voice protection (1 in, 2 out), plus coax/F-type and AV connections in and out
• Fire-retardant construction

Specifications

• Supply: 240V AC, 50Hz, 10A / 2400VA
• Clamping voltage: 275V AC; response time under 1 nanosecond
• Maximum transient spike current: 208,000A (52,000A under UL1449)
• Maximum energy dissipation: 7,222J (2,440J under UL1449)
• Earth leakage: less than 1mA
• Cable length: 1.8m
• Dimensions: 350mm L x 45mm H x 140mm W
• Warranty: 6-year replacement warranty
