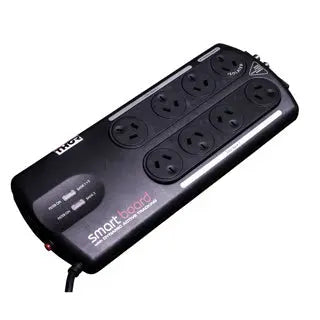

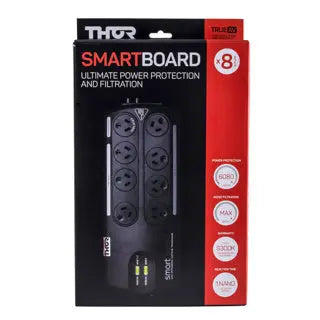

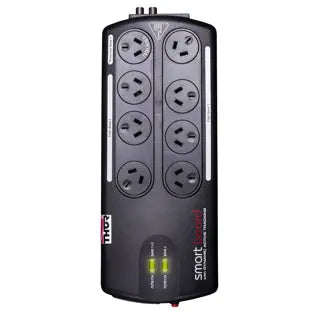

Thor Smart Board 8. Universal Filter and Surge Protector. 8 Outlets, Triple Isolated Active Filter.

ULTIMATE POWER PROTECTION AND FILTRATION

SmartBoard Smart Series with unique Dynamic Active Tracking™ is the most comprehensive and advanced solution to protect your electronic equipment.

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound. Can also improve computer gaming speeds and fix internet dropouts.

INSIDE THE BRAIN

SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other  filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.

There are 5 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 3 x AC Banks (1 x 1 outlet; 1 x 3 outlet; 1 x 4 outlet) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.

FEATURES

• 8 PROTECTED OUTLETS
• PAY TV PROTECTION
• 1.8M CABLE LENGTH
• 3 ISOLATED BANKS
• DATA/VOICE PROTECTION – NBN COMPATIBLE
• FIRE RETARDANT
• AERIAL PROTECTION
• 2 LARGE PLUG ADAPTORS
• 6 YEAR REPLACEMENT WARRANTY

PROTECTS

• OLED/LCD TV
• HIFI AND HOME THEATRE
• ACTIVE/PASSIVE SPEAKERS
• COMPUTERS
• PRINTERS AND SCANNERS
• INTERNET – REDUCES NBN/ADSL DROPOUT
• GAMING – IMPROVES SPEED

TECHNICAL SMARTS

• Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)
• Supply voltage 240/V AC 50/Hz
• Maximum current rating 10amps/2400 W (VA)
• Clamping voltage 300VAC
• Reaction time less than 1 nanosecond
• Maximum energy dissipation 7222 Joules (equivalent to 2440 Joules using UL1449 standard)
• Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
• EMI/RFI noise reduction filter type Dynamic Active Tracking™ incorporating 38 separate protection components in 3 cascading circuits
• Number of multi-stage filter banks: 2
• Number of isolated banks: 3
• Number of dedicated outlets: 4+3+1
• Total number of protected AC outlets: 8

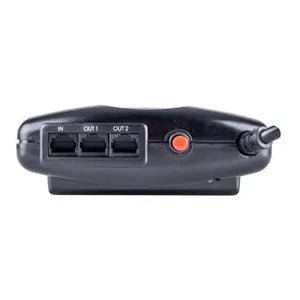

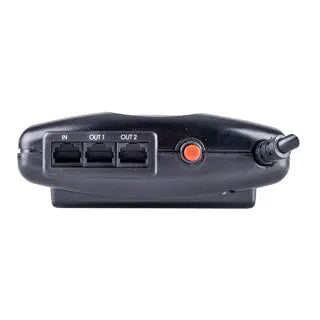

• RJ 45 data protection: 1 in and 1 out
• AV/TV Connection: In and out

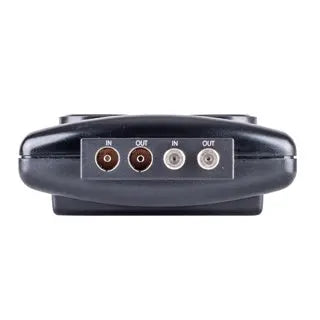

• Cable TV ‘F’ type connection: In and out
• Earth potential rise protection
• Earth leakage range less than 1 milli amp
• Operating conditions: Indoor/AC mains
• Operating temperatures: -10C/+60C
• Cable length: 1.8m
• Model No: A12BF
