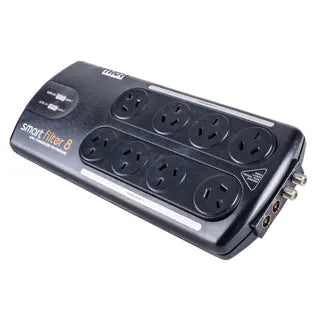

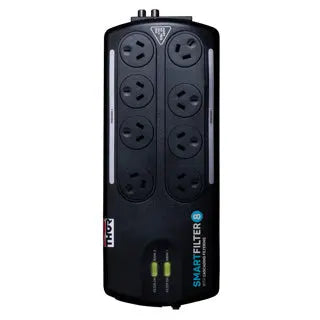

B8+ – 8 Way Surge Protector with Advanced Filtration
SMART TECHNOLOGY POWER PROTECTION AND FILTRATION
SmartFilter 8 has two unique isolated banks offering fail-safe protection for your valuable electronic equipment, plus advanced noise filtering for improved sound and video quality.
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise. Cascade Filter “cleans” around 20% more frequencies than other filtered boards to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound. Can also improve computer gaming speeds and fix internet dropouts.
INSIDE THE BRAIN
There are 4 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 2 x AC Banks (2 x 4 outlets) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.
FEATURES
8 PROTECTED OUTLETS
2 ISOLATED BANKS
PAY/TV PROTECTION
DATA/VOICE PROTECTION
LARGE PLUG ADAPTORS
1.8M CABLE LENGTH
FIRE RETARDANT
6 YEAR REPLACEMENT WARRANTY
PROTECTS
OLED/LCD TV
HIFI AND HOME THEATRE
ACTIVE/PASSIVE SPEAKERS
INTERNET REDUCES NEN/ADSL DROPOUT
COMPUTERS
PRINTERS AND SCANNERS
GAMING
TECHNICAL SMARTS
Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)
Supply voltage 240/V AC 50/Hz
Maximum current rating 10amps/2400 W (VA)
Clamping voltage 300 V AC
Reaction time less than 1 nanosecond
Maximum transient spike impulse current 196,000 amps (equivalent to 49,000 amps using UL1449 standard)
Maximum energy dissipation 5868 Joules (equivalent to 2100 Joules using UL1449 standard)
Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
EMI/RFI noise reduction filter type. Cascade dual bank isolation with 2 cascading circuits
