E1/45U – 4 Way Filtered Board with Better Filtration and USB
SMART TECHNOLOGY POWER PROTECTION AND FILTRATION
SmartProtect 6 does more than protect your valuable electronic equipment. The two USB power ports automatically adjust to the voltage of your smart technology to charge your devices quicker.
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.
INSIDE THE BRAIN
All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. E1/45U has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
FEATURES
4 PROTECTED OUTLETS
2 USB PORTS (MASSIVE 4.8A FAST CHARGING)
EARTH DETECTION CIRCUIT
LARGE PLUG ADAPTOR

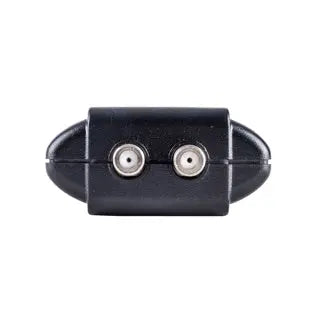

AERIAL PROTECTION
PAY TV PROTECTION
DATA/VOICE PROTECTION
1.2 M CABLE LENGTH
FIRE RETARDENT
6 YEAR REPLACEMENT WARRANTY
PROTECTS
OLED/LCD TV
HI FI AND HOME THEATRE
ACTIVE/PASSIVE SPEAKERS
COMPUTERS (LAPTOPS/TABLETS)
PRINTERS AND SCANNERS
TECHNICAL SMARTS
Product Dimensions: 430mm (L) x 35mm (H) x 75mm (W)
Supply voltage 240/V AC 50/Hz
Maximum current rating 10amps/2400W(VA)
Clamping voltage 275V AC
Reaction time less than 1 nanosecond
Maximum transient spike impulse current 125,000 amps (equivalent to 31,200 amps using UL 1449 standard)
Maximum energy dissipation 3670 Joules (equivalent to 1240 Joules using UL1449 standard)
Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
