Violet Audio DX08B 8-channel, 2-way passive Audio Splitter

Optimised for microphone signals, the DX08B provides the essential flexibility required in demanding live sound and studio environments. It allows engineers to seamlessly distribute isolated audio feeds to Front of House (FOH), monitor consoles, and recording rigs simultaneously.The unit offers comprehensive connectivity, featuring 8 x XLR inputs on the front, supplemented by 16 additional outputs on the rear (8 via XLR, 8 via 2 x Ethercon). Housed in a rugged 1RU metal chassis, the DX08B is entirely passive—requiring no external power—making it a reliable, “road-ready” solution for any professional audio kit.

Key Upgrades & Connectivity

• Secure Connections: Now features locking XLR and Ethercon connectors to prevent accidental disconnects during a performance.

• Comprehensive I/O: 8 front-panel XLR inputs/outputs, with 16 further outputs on the rear via XLR, Ethercon.

• Tour-Grade Durability: A sturdy 1RU metal chassis designed to survive the studio and the stage alike.

Technical Specs

• Type: 8-Channel, 2-Way Passive Audio Signal Splitter.

• Signal Path: Entirely passive “Pure Path” (No power supply required).

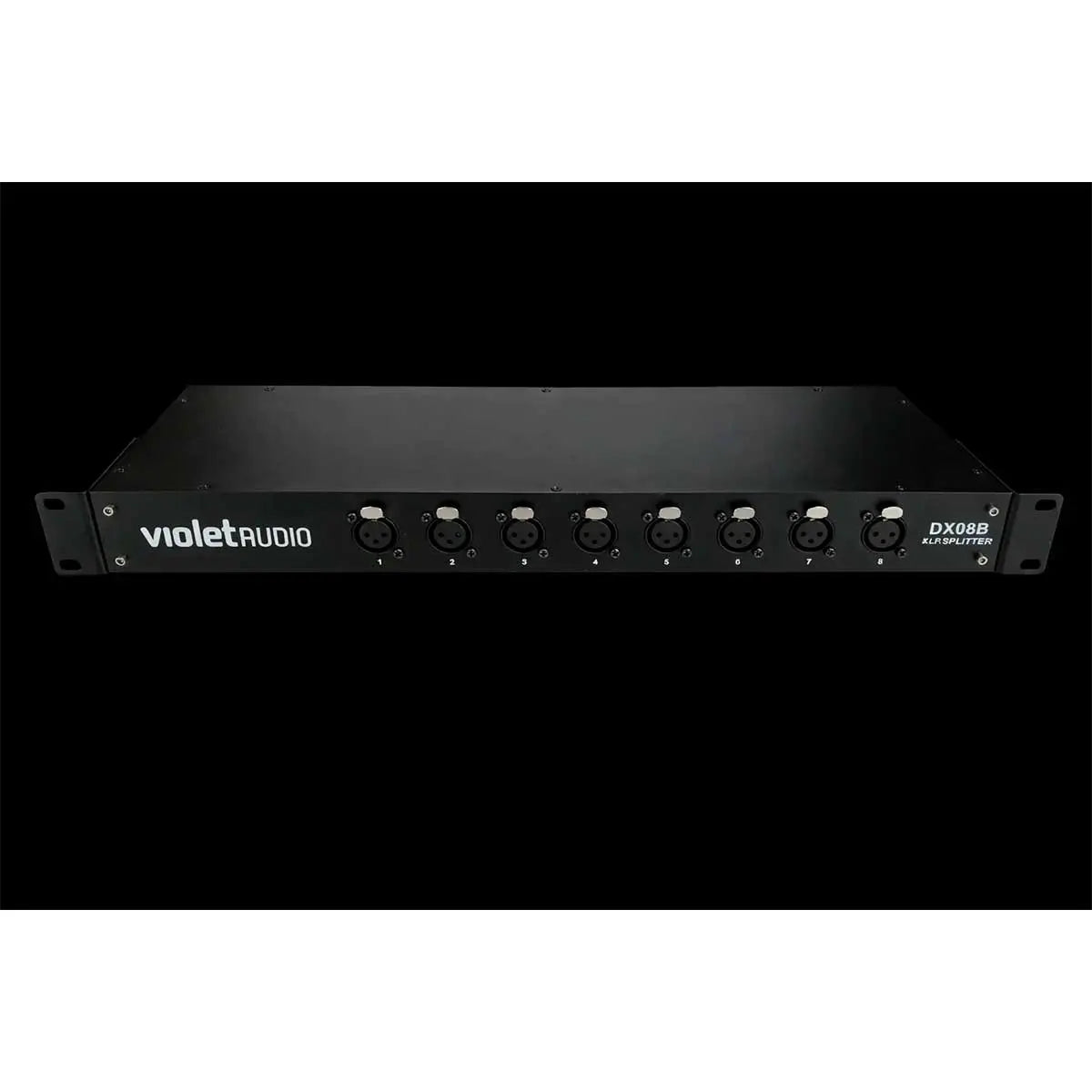

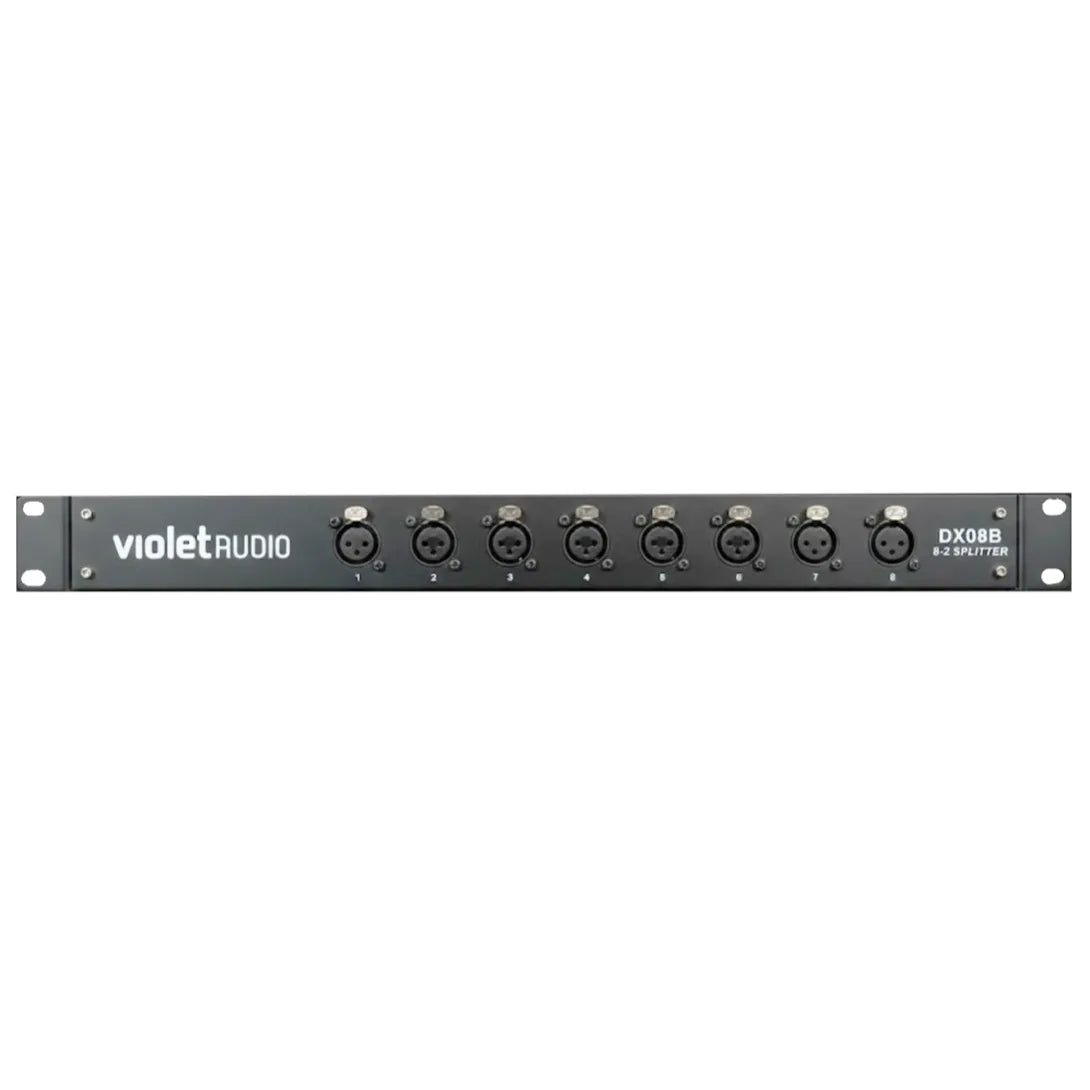

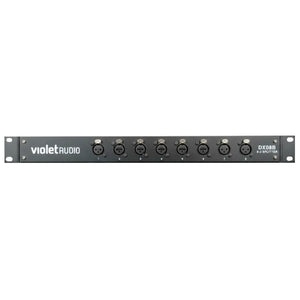

• Front I/O: 8 x Locking XLR Inputs.

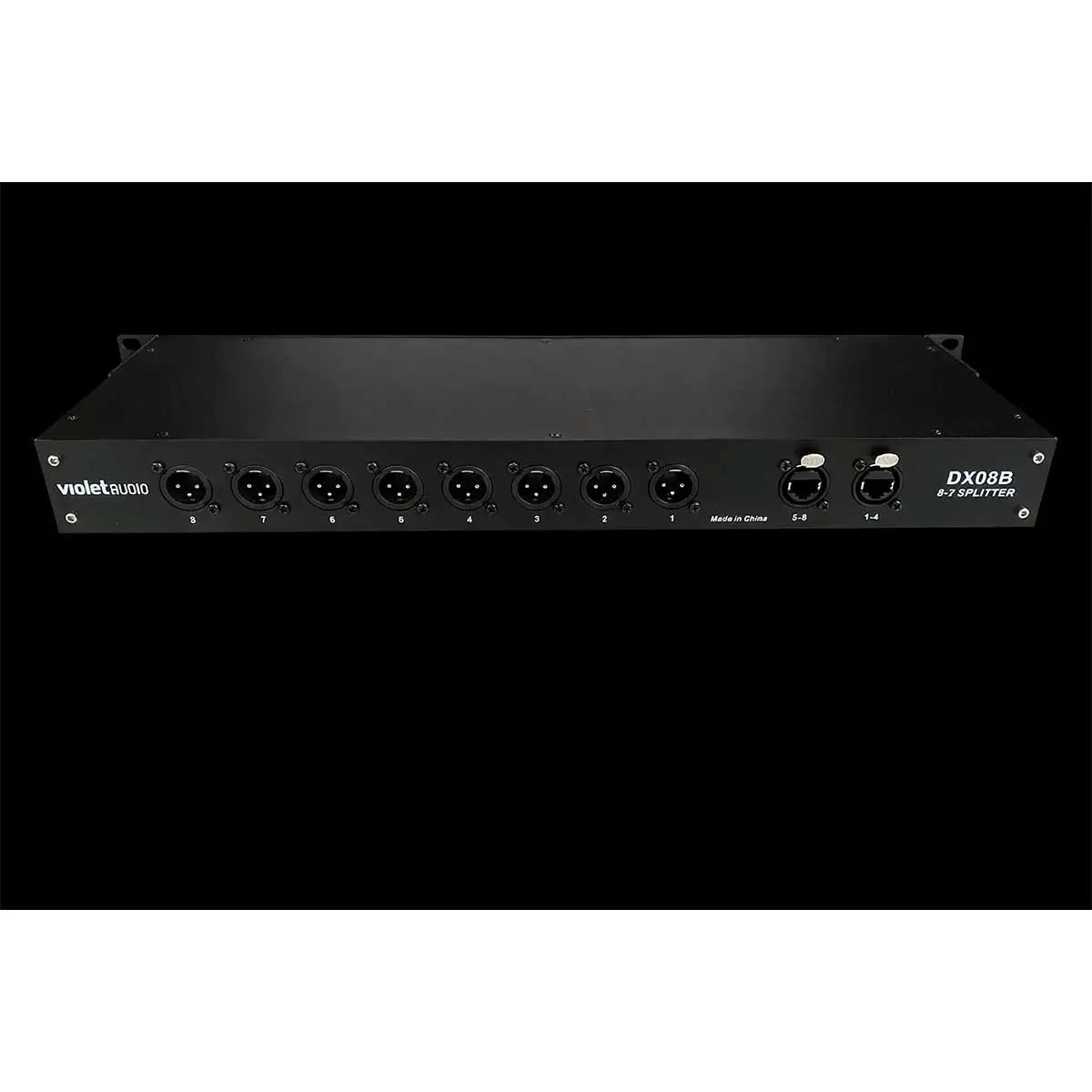

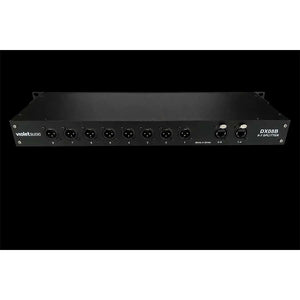

• Rear I/O: 8 x XLR Outputs; 2 x Ethercon (8Ch).

• Construction: Heavy-duty 1RU metal rackmount chassis.

• Applications: Live Sound (FOH/Monitor splits), Broadcast, and Studio Recording.

Note: Shielded cable is required for phantom power.
