WAVECAST SYSTEM WITH 6 WAV PRO WI-FI RECEIVERS

WF SYS2C
Discover real-time audio over Wi-Fi with this WaveCAST Wi-Fi assistive listening system.

This system includes 6 easy-to-use WAV Pro Wi-Fi Receivers that deliver the assistive listening industry’s largest display at 6.8” full HD+ display, along with Bluetooth® compatibility and up to 40 hours of continuous audio streaming under normal use conditions. The WAV Pro Wi-Fi Receiver connects with any Williams AV WaveCAST-enabled product and allows users to connect via Bluetooth® to their own personal headphones, hearing aids, or neck loop. The WAV Pro Wi-Fi Receiver is the only wireless Wi-Fi device on the market that is new and purposed solely for assistive listening. The WaveCAST System with 6 WAV Pro Wi-Fi Receivers meets ADA hearing requirements.

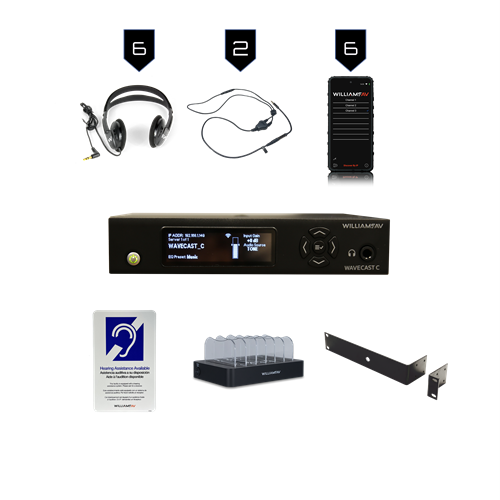

SYSTEM INCLUDES

• (1) WaveCAST C transmitter (WF T5C)
• (6) WAV Pro Wi-Fi Receivers (WF R2-N)
• (2) Neckloops (NKL 008)
• (1) Rack Panel Kit (RPK 005)
• (6) Folding Stereo Headphones (HED 024)
• (1) ADA Wall Plaque (IDP 008)
• (1) 6-Bay Charger (AC CHG406)

HED 024

• Style:    Stereo Headphones
• Plug:    3.5mm stereo
• Cord:    39"
• Driver Size:    30 mm
• Nominal Impedance:    16Ω
• Freq. Response:    20 - 20kHz
• Weight:    60g
• Max Power Input:    100 mW
• Sensitivity:    108 dB @ 1kHz
• Replacement Pads:    HED 023 (one pair)

IDP 008

• 10-3/8" (L) x 6-¼" (W) x 1/8" (H)

WF R2-03

• Dimensions:    168 x 76.5 x 8.9 mm (6.61 x 3.01 x 0.35 in)
• Weight:    7.12 oz (202g) without case
• Display:    6.8” Full HD+ Infinity Dot 1080 x 2460 Resolution | 396ppi
• Receiver Jack:    3.5mm (1/8”) stereo headphone jack
• Battery Life:    Lithium Polymer (Li-Po) 6000 mAh, non-removable
• Battery Life:    Up to 40 hours of continuous audio streaming
• USB Connection:    USB Type C for power and charging
• Wi-Fi Frequency Compatibility:    Works on both 2.4Ghz and 5Ghz
• Approvals:    CE, FCC, WEEE, CB Scheme, UK CA, RoHS3. RCM and IC- Pending

NKL 001-S

• Color:    Black
• Weight:    1.5 oz
• Length:    18.5” cord
• Connector:    NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
• Impedance:    8-16 Ohms
• Input Power:    500 mW max
• Magnetic Field Strength:    25 mW input at 1000 Hz produces 1.7 A/m 6” above the center of loop 85μW input produces 0.1 A/m (IEC Standard)
• Approvals:    RoHS, WEEE

WF T5C

• Dimensions:    8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
• Weight:    Transmitter: 3.2 lbs (1.45 kg)
• Colour:    Black
• Rack Mount:    Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
• Power Supply:    Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• Power ON Indicator:    Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF.
• Temperature Range:    Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
• User Interface:    1. 3.12” High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide" for available commands and protocol).
• Dante:    (1x) RJ-45 jack. Only available on WF T5CD
• Ethernet:    RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices.

Audio Section

• Audio Inputs:    (1x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (“D” models only).
• Audio Processor Functions:    DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets
• Frequency Response:    31-16000 Hz, ±3 dB (re: 1 kHz) (“Music” Audio Preset)
• Signal-to-Noise Ratio:    64 dB (typical) Transmitted RF @ 1kHz
• Total Harmonic Distortion:    Less than 0.25% @ 1 kHz (RF output)
• Common Mode Rejection:    Greater than 57 dB @ 1 kHz, Mic or Line mode
• Audio Input Gain Adjust:    Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page
• Phantom Power:    14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
• Audio Level Display:    Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by 'OLVD' and flashing empty bar.
• Headphone Output:    1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 Ω.
• Dante Output:    (1x) RJ-45 jack, only available on WF T5CD

• Input Level (Bal or Unbal) (at Audio Input Gain = 0dB)	Nominal (@7th Segment Lit)	Overload Warning (Displayed on Screen)	Absolute Max. Rating*
  Microphone	-45 dBV (5.6 mV RMS)	-20 dBV (100 mV RMS)	+20 dBV (10.0 V RMS)
  Line	-8.4 dBV (380 mV RMS)	+16 dBV (6.5 V RMS)	+20 dBV (10.0 V RMS)

• Approvals    FCC, RoHS3, WEEE, Industry Canada, CE, UK CA, RCM

AC CHG406

• Dimensions:    7.2”L x 5.1”W x 1.1”H (18.2 cm x 12.9 cm x 2.7 cm)
• Weight:    1.3 lbs (0.58 kg)
• Color:    Black and clear plastic
• Power Input:    AC100-240V 50/60Hz 0.5A max
• Power Output:    DC 5.0V/10A (50W)
• Ai Output    DC 5V/2.4A
• Indicators:    Individual Charging Indicators: Blue LEDs light up dividing clear panels
• Cable Length    1.5m (4.9ft)
• Compatible Units:    WAV Pro Wi-Fi Receiver (WF R2-03) and (WF R2-N)
• Approvals:    CE, FCC, ETL and RoHs
• Notes:    Accepts USB type A plugs, with a USB-C or with a micro-B plug that can connect to the device to be charged.
